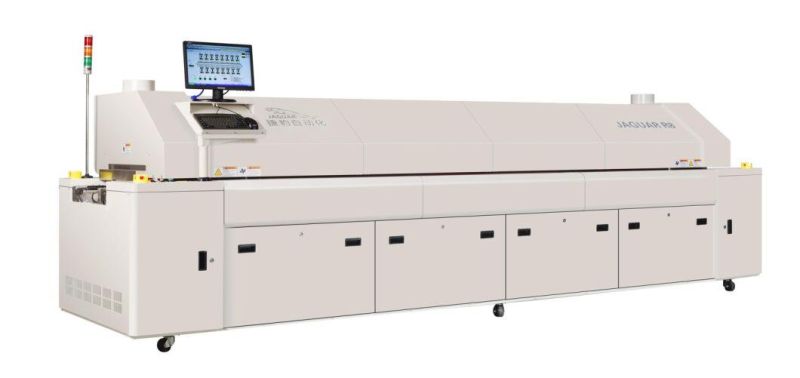

SMT Line Lead Free Reflow Soldering Wave Soldering Machine (R8)
Shenzhen Jaguar Automation Equipment Co., Ltd.- Reflow Oven Type：Large Reflow Oven Type
- Heating Zones：Up8,Bottom8
- Length of Heating Zones：3000mm
- Cooling Zone：2
- Power Supply：5 Line, 3phase, 380V 50,60Hz
- Heating Method：Hot Air Convection
Base Info
- Model NO.：REFLOW OVEN R8
- Transport Package：Wooden Box
- Specification：CE
- Trademark：Jaguar
- Origin：China Shenzhen
- HS Code：85151900
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. REFLOW OVEN R8 Transport Package Wooden Box Specification CE Trademark Jaguar Origin China Shenzhen HS Code 85151900 Production Capacity 100PCS/MonthProduct Description
Specification:
| Model | JAGUAR R8/R8-N |
| Outside dimension | 5200 x 1400 x 1600mm |
| Standard color | Computer grey |
| Weight | 2200kg |
| Number of heating zones | Up8/bottm8 |
| Length of heating zones | 3000mm |
| Number of cooling zones | 2 |
| Exhaust volume | 10M³/min*2 exhausts |
| Power supply | 5line, 3phase, 380V 50/60Hz |
| Start-up power | 60KW |
| Power for warm up | 50KW |
| Normal power | 9KW |
| Heating pattern | Up & Bottom Hot air |
| Warming time | Approx. 20minutes |
| Temp. setting range | Room temp-350 degree |
| Control system | PLC+ Computer |
| Temperature control method | PID close loop control +SSR driving |
| Temperature control precision | ± 1.0degree |
| Temperature deviation on PCB | ± 1-2 degree |
| Data storage | Process data and status storage (80GB) |
| Abnormal alarm | Abnormal temperature (extra-high/extra-low temp.) |
| Board dropped alarm | Tower light: yellow warming: Green-normal: Red-abnormal |
| Max. width of PCB | 450mm |
| Rail Number | 1 Lane Or 2 Lane (option) |
| Components clearance | Top/bottom clearance of PCB is 25mm |
| Conveyor height | Light → right(option: R→ L) |
| PCB transmission agent | chain +mesh |
| Conveyor height | 900± 20mm |
| Conveyor speed range | 0~2000mm/min |
Introduction:
1. Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4. Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5. To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6. Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec.)
7. Center support and dual rail is optional.
