Three Phase Automatic Armature Rotor Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：Three Phase AC380V
  • Armature O.D Range：20~60mm
  • Stack Length：20~60mm
  • Shaft Diameter：3~17mm
  • Shaft Length：Less Than 300mm
  • Turn Number：0~9999

Base Info

  • Model NO.：ND-LAW-5B3
  • Commutator Diameter：12~40mm
  • Winding Speed：0~3000 Rpm
  • Weight：1200kg
  • Dimension：2000(Length)X1300(Width)X1800(Height)mm
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Ply-Wooden Case
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Wire diameterMagnetic hysteresis method:0.16~0.55mmElectric control method:0.30~0.85mmArmature O.D range20~60mmStack length20~60mmShaft diameter3~17mmShaft lengthLess than 300mmArmature slotEven slotTurn number0~9999Commutator diameter12~40mmWinding speed0~3000 rpmWinding motor power1.5KW * 2Angle detecting speed0~3000 rpmAngle detecting motor power0.75KW *1Air supply pressure4~6 Kg/cm2The machine total power4.0 KWVoltageThree phase AC380V50/60HzWeight1200KgDimension2000(length)X1300(width)X1800(height)mm

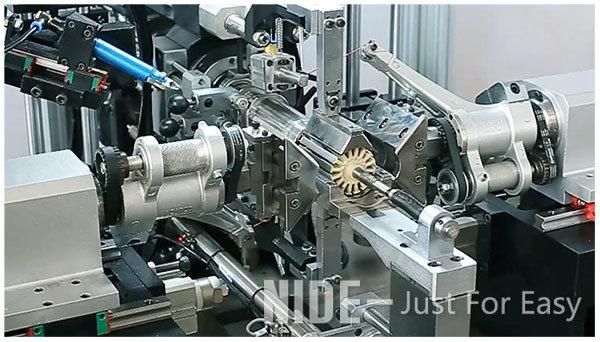

Three Phase Automatic Armature Rotor Coil Winding Machine

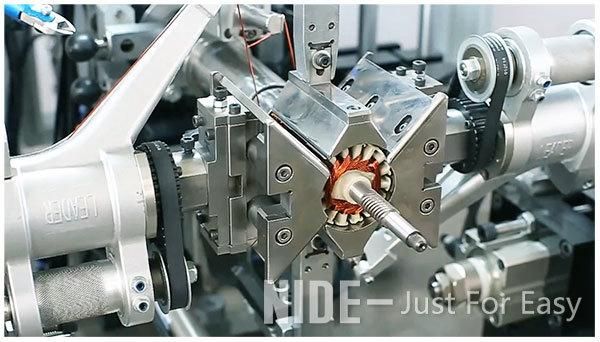

Three Phase Automatic Armature Rotor Coil Winding Machine

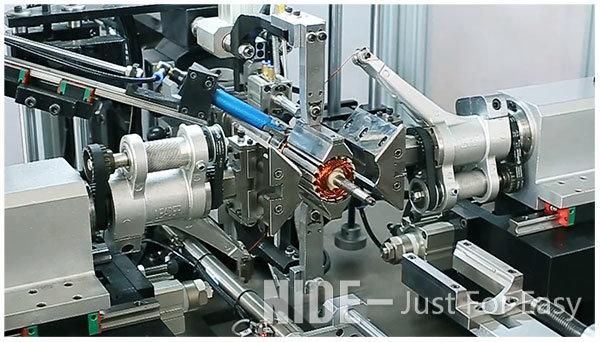

Three Phase Automatic Armature Rotor Coil Winding Machine

Three Phase Automatic Armature Rotor Coil Winding Machine
Three Phase Automatic Armature Rotor Coil Winding MachineThree Phase Automatic Armature Rotor Coil Winding MachineThree Phase Automatic Armature Rotor Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Three Phase Automatic Armature Rotor Coil Winding Machine
Three Phase Automatic Armature Rotor Coil Winding Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
