• Model NO.：1250
• Motor：Siemens
• Inverter：Japan-Yaskawa
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Guangdong, Cina
• HS Code：8479400000
• Production Capacity：100sets,Year

Basic Info.

Model NO. 1250 Motor Siemens Inverter Japan-Yaskawa Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Guangdong, Cina HS Code 8479400000 Production Capacity 100sets/Year

Product Description

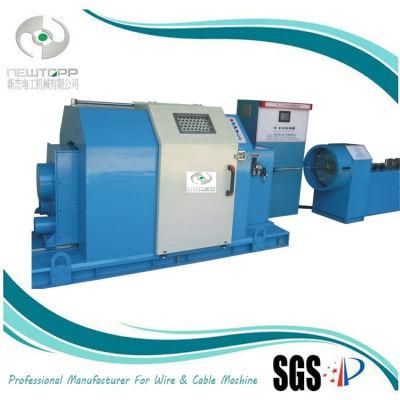

Xj1250 high Speed Cantilever Type Stranding Single Twistingcoiling Machine

 1). Aplication
 Used for  high frequency wire,data wire, computer wire,power wire multi group twisting.


 2). Main specification
A. Max rotate speed: 900RPM
B. Input wire diameter: Φ3.0-10mm
C. Machine color: As requested
D.. Operation direction: Right hand or Left hand (As requested)
3). Brand of main accessories
A. Motor: Siemens
B. Frequency converter: Yaskawa(Japan) or Schneider (France)
C. Bearing: NSK,KOYO (Japan)
D. Electrical component: Schneider(France) or SHIHLIN(Taiwan)
E. PLC controller: Siemens or FATEK(Taiwan)
F. Touch screen: Tontek (Taiwan) or Pro-face(international brand

5). Technical Parameters:

Model	XJ-1250
Inlet wire specification	Φ3.0-10MM
Taping type	SIngle-head horizontal type high speed centering tapping device+double-head longitudinal
Rotate speed	Max400rpm
Main power	40HP motor +differential mechanism
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm

6). Company Information
 Dongguan NewTopp Electrical Machinery Co.,Ltd is a professional enterprise specializing in wire&cable equipmentR&D, design and manufacture.With the continuous improvement of production technology level and Constantlyincreasing of R&D potency dimension, make the wire and cable equipment Process, performance increasingly perfectand excellent.
 Q&A
 Are you a manufacturer or trading company?
 We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and we have 6000 spuare meters production workshop and office space.
How can we get to your factory to see the machines works?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China. Only 40 minutes by car from Shenzhen Baoan International airport to our factory; Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory; Only 17 minutes by high speed rail from Guangzhou south station to Humen.
