• Model NO.：GW-9751
• Name 1：Coil Winder Machine
• Name 2：Transformer Winding Machine
• Certification：RoHS, CE, ISO
• Spindles：1
• Spread Pithch：200mm
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：CE
• Trademark：Grewin
• Origin：China
• HS Code：85043190
• Production Capacity：100PCS

Basic Info.

Model NO. GW-9751 Name 1 Coil Winder Machine Name 2 Transformer Winding Machine Certification RoHS, CE, ISO Spindles 1 Spread Pithch 200mm Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 85043190 Production Capacity 100PCS

Product Description

Product Description:

Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for the insulation tape wrapping machine on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

Specification

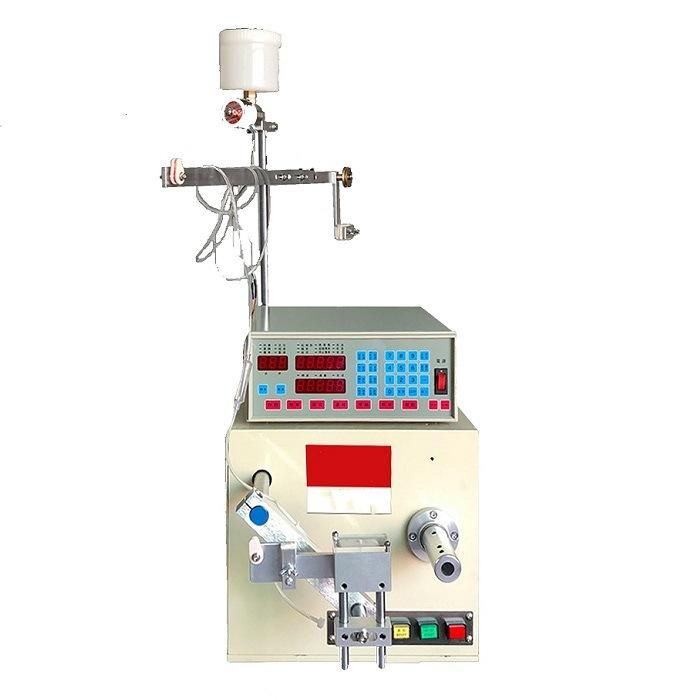

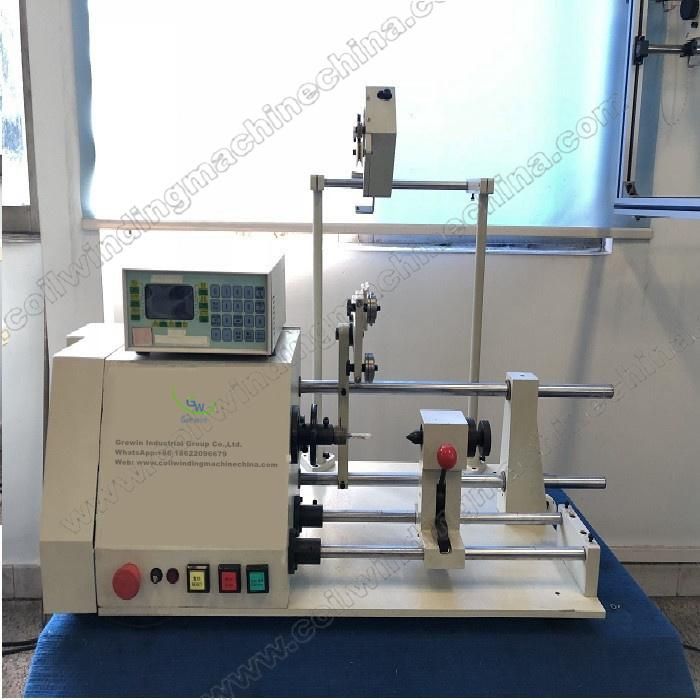

                            GW-9751 High Torsion Transformer Bobbin Winding Machine
SPECIFICATION:

Spindles	1	Spread Motor	4-Phase stepping Motor
Wire diameter	0.5-3.0mm	Max Speed	1200rpm
Spread Pitch	0-9.999mm	Memory	999 Sequences
Spread Width	200mm(Max)	Power Source	AC 220V/110V±10%,50/60MHZ
Winding Width	200mm(Max)	Weight	70×52×60
Main Motor	1/2HP DC Motor	Dimension	42 kgs

Related Products

GW-9761 High Speed Parallel Winding Machine

SPECIFICATION:

Spindles	1	Spread Motor	4-Phase stepping Motor
Wire diameter	0.02-0.8mm	Max Speed	6000rpm
Spread Pitch	0-9.999mm	Memory	999 Sequences
Spread Width	100mm(Max)	Power Source	AC 220V/110V±10%,50/60MHZ
Winding Width	150mm(Max)	Weight	45×67×10
Main Motor	1/2HP DC Motor	Dimension	45

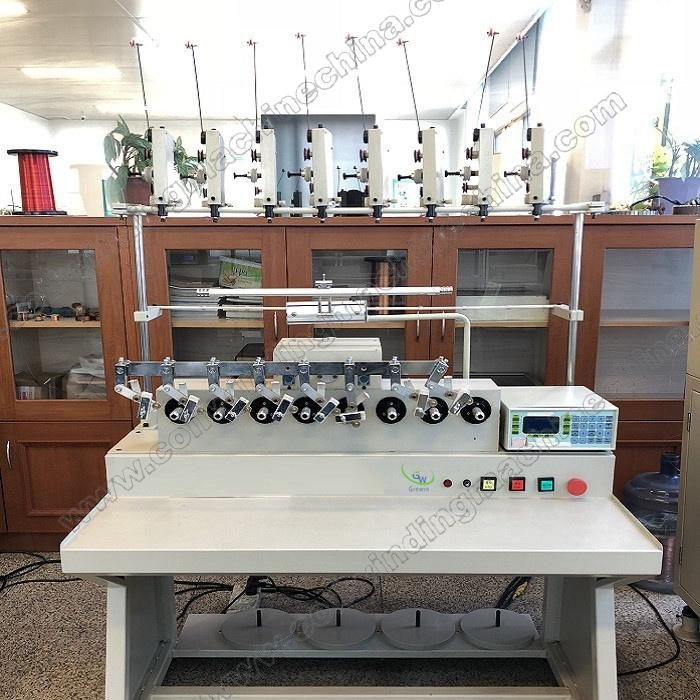

ACGW28-80 High Speed Winding Machine

Specifications:

Spindle number	8
Wire size range	0.03-0.2mm
Loop diameter	56mm
Max wire distance	9.99mm
Winder width	60mm
Spindle pitch	70mm
Max speed	0-10000RPM
Spindle motor	Three Phase Motor+AC Drive
Winder motor	Stepping motor
Input power	220V 50HZ/60HZ
Machine size	1080×800×1100mm
Package size	1180×890×1130mm
Net weight	167kg
Gross weight	204kg

GWCM-1901 Semi auto voice coil winder

Specifications

Spindle number	1
Wire size range	0.02-1.2mm
Winding width	0-110mm
The max coil diameter	150mm
Max speed	6000 RPM
Spindle motor	Brushless DC motor
Winder motor	Stepping motor
Machine power	220V  50HZ
Machine Size	750*400*450mm
Package size	1090×620×620mm
Net weight	72kg

ACGW23-1B Fishing line winding machine

Specifications

Spindle number	1
Wire size range	0.05-1.0mm
Loop diameter	140mm
Max wire distance	9.9mm
Winder width	600mm,1500mm
Max. speed	0-1500RPM
Spindle motor	Three Phase motor+AC Drivers
Winder motor	stepping motor
Max. winder diameter	80mm
Input power	220V  50HZ/60HZ
Machine size	1130×450×450mm
Package size	1000×830×1110mm
Net weight	95kg
Gross weight	151kg

ATWGW22-1 Speaker Voice coil winding machine

Specifications

Spindle number	1
Wire size range	0.3-2.0mm
Loop diameter	240mm
The max wire spacing	9.99mm
Winder width	180mm
Max speed	0-2200 RPM
Spindle motor	Three Phase motor+AC Drives
Winder motor	Stepping motor
Input power	220V  50HZ/60HZ
Machine Size	1000×520×430mm
Package size	1090×620×620mm
Net weight	98kg
Gross weight	143kg

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.

Packaging Information:
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.) Packaging: Packaging material: Carton/Wooden case with foam inside.


Why Choose Us1.Environmental protection, low noise and high efficiency;
2.The storage capacity can be super large.
3.You can choose different row direction, winding angle and sectional angle.
4.Photoelectric induction switch technology has high accuracy and accurate number of rings.
5.Stepper motor wiring, spacing can be accurately controlled;
6.Products that can be tetragonal.
Packaging & Shipping
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during
the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper
wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in
the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick
up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown
problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English
manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be
taken care. All done help to extend the use period.
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
