Big Toroid Transformer Inductor Coil Winding & Taping Machine

Tianjin Grewin Technology Co., Ltd.
  • Tape Width：15(20, 25, 30)mm
  • Max.Final Coil.O.D：130-650mm
  • Min.Final Coil.I.D：60mm
  • Max.Finalcoil Height：150mm
  • Controller Storage Capacity Programs：29 Sets
  • Max.Taping Speed：120rpm

Base Info

  • Model NO.：GWTM-0418
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：9000*600*1800
  • Weight：240kg
  • Certification：CE
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS

Description

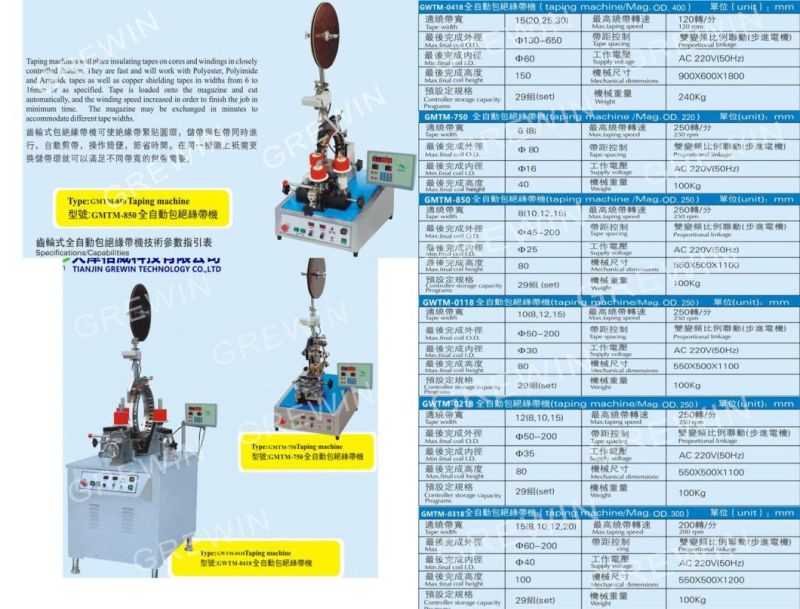

Tape width15(20,25,30)Max.taping speed120rpmMax.final coil.O.Dφ130-650Tape spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions9000×600×1800 Controller storage
capacity Programs29 (set)Weight240kgGWTM-0418 (taping machine/Mag.OD.400) (unit): mm
Big Toroid Transformer Inductor Coil Winding & Taping Machine

 Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.


Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
