• Model NO.：XJ300,400
• Power：Speed Regulation by 1HP Motor with Inverter
• Wrapping Tension：Wrapping Tension Automatic Calculation Tracking
• Heating Device：Auto Flexible Type, Omrob Temperature Control
• Take up Tension：Keep Constant From Start to End
• Traversing：Axis-Row Type Take up
• Pay-Offs Type：Slider Pendulum Rod+Hammer Tension Type
• Precision：High Precision
• Certification：CE, ISO, FCC, FDA, VDE, IEC60898, CCS, CCC, LR, ABS, Semko, CB, SGS
• Demoulding：Automatic
• Heating System：Electric
• Function：High Temperature Resistance
• Mould Life：>1,000,000 shots
• Customized：Customized
• Warranty：12 Months
• Transport Package：PE Film + Wooden Box
• Specification：XJ500
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. XJ300/400 Power Speed Regulation by 1HP Motor with Inverter Wrapping Tension Wrapping Tension Automatic Calculation Tracking Heating Device Auto Flexible Type, Omrob Temperature Control Take up Tension Keep Constant From Start to End Traversing Axis-Row Type Take up Pay-Offs Type Slider Pendulum Rod+Hammer Tension Type Precision High Precision Certification CE, ISO, FCC, FDA, VDE, IEC60898, CCS, CCC, LR, ABS, Semko, CB, SGS Demoulding Automatic Heating System Electric Function High Temperature Resistance Mould Life >1,000,000 shots Customized Customized Warranty 12 Months Transport Package PE Film + Wooden Box Specification XJ500 Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 20 Sets/Month

Product Description

Dual Head Tape Taping Machine for Wire Cable Wrapping Tape

1). Purpose
Used for twisted wire and parallel wire single/double layers continuous centering tapping.

 2). Main specification
A. Max rotate speed: 2500RPM
B. Max wire speed: 20M/min
C. Input wire diameter: AWG32-AWG20
D. Tapping material: Aluminum foil tape,cotton paper tape,transparent tape,mica tape,teflon tape etc.
E. Machine color: As requested
F. Operation direction: Right hand or Left hand (As requested)

3). Main parts
(A) ø400-500mm four-heads dynamic pay-off
(B) ø350mm centering tapping device
(C) Electrical control cabinet(touch screen)
(D) Automatic heating machine
(E) ø500mm Axis row-type take up machine

4). Brand of main accessories
A. Motor: Siemens
B. Frequency converter: Yaskawa(Japan) or Schneider (France)
C. Bearing: NSK,KOYO (Japan)
D. Electrical component: Schneider(France) or SHIHLIN(Taiwan)
E. PLC controller: Siemens or FATEK(Taiwan)

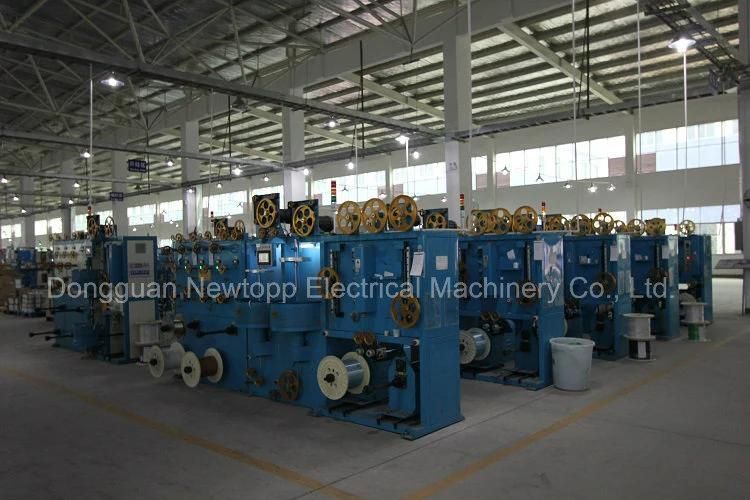

F. Touch screen: Tontek (Taiwan) or Pro-face(international brand) 5). Products show as below:



6). Technical Parameters:

Model	XJ-500
Inlet wire specification	AWG32 - AWG20
Taping materical	aluminum foil tape, myra tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Rotate speed	Max. 2000rpm / Max. 20m/min
Main power	Adjust the speed by 1HP motor driver, taping drum linkage with capstan motor
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Melting oven	Automatic flexible melting oven, OMRON temperature control, temperature tolerance:±1°C
Take -up tension	Take-up tension keep constant from start to end, no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm
Machine weight	2.5 T
