Ab Dispensing and Potting System

Guangzhou ZhengQi Technology Co., Ltd.
  • After-sales Service：Provided
  • Precision：High Precision
  • Condition：New
  • Certification：CE
  • Warranty：12 Months
  • Automatic Grade：Semiautomatic

Base Info

  • Model NO.：PJL-1200
  • Installation：Vertical
  • Driven Type：Electric
  • Key Words：Semi-Automatic Dispensing Machines
  • Functions：Heating ,Stirring , Degas , Vacuuming , Self-Clean
  • Voltage：220 or 380V
  • Tank Compacity：10L , 25L , 40L or Customize
  • Transport Package：Standard Export Poly Wood Case
  • Trademark：Daheng
  • Origin：China
  • HS Code：8424899990
  • Production Capacity：1000,Year

Description

Basic Info.

Model NO. PJL-1200 Installation Vertical Driven Type Electric Key Words Semi-Automatic Dispensing Machines Functions Heating ,Stirring , Degas , Vacuuming , Self-Clean Voltage 220 or 380V Tank Compacity 10L , 25L , 40L or Customize Transport Package Standard Export Poly Wood Case Trademark Daheng Origin China HS Code 8424899990 Production Capacity 1000/Year

Product Description

PJL-11200 Economy glue potting machine
Ab Dispensing and Potting System
Features
Small size and easy to install
Easy to operate, easy to learn
Multiple configuration, suitable for a variety of products


PJL-1500 Glue mixing machine
Features
Stainless steel table
Suitable for multiple scenes
Free to control, easy to learn

PJL-1200 Standard dispensing machine
Multiple configuration, suitable for a variety of products
High versatility and high cost performance
Suitable for various products
Can be used with production lines
PJL-1000
Dimension: 1050*1000*1700mm
PJL-1500
Dimension: 1500*1000*1700MM

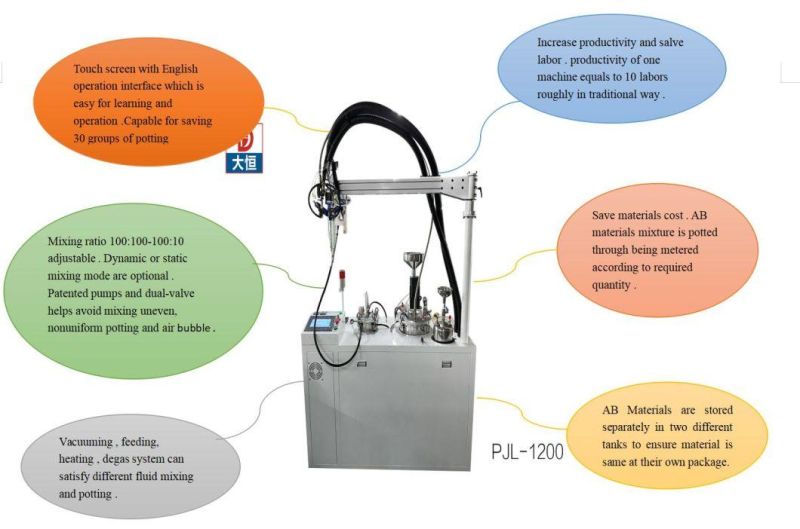

PJL-1200
Dimension: 1650*750*1900MM

AB ratio:100:100-100:10 adjustable
Movment Track:Dot/Line/Arc/Circle
Speed:500mm/s(Movement speed) 1-12ml/s(gluing out speed)
Accuracy: ±2%(potting) ±2%(mixing)
Input pressure:0.5MPa-0.7MPa
Viscosity:50cps-30000cps(Viscosity can be down via heating glue)
Operation:Manual/Automatic
Meter Pump:Gear pump/Screw pump/Double cylinder plunger pump
Flow Control: Digital Input
Programming method: teaching programming
Automated control system: PLC / touch screen (programming, modification, storage, etc.)
Glue control system: AB glue suction valve to achieve independent operation of AB glue
Mixed mode: dynamic static optional, instant mixing, easy to clean
Tank:stainless steel tank (60L),(50L),(40L),(25L),(10L)optional
Power supply: 220V/50Hz/1200W ( Test under heating unction is not power on)
