• Model NO.：LED660
• Type：High-speed Chip Mounter
• Dimensions：2600*680*1500mm
• Weight：420kg
• Max Circuit Board Size：1200*350mm
• Max Moving Range：X Axis 1500mm, Y Axis 360mm
• Typical Mounting Speed：9000-14000 Cph
• Max Mount Speed：18000cph
• Component Available：0603and Above
• Belt Feeder：8mm, 12mm, 16mm and 24mm
• Power Supply：220V, 50Hz, 3 Kw
• Dimension：2600*680*1500mm
• Transport Package：Wooden Package
• Specification：CE ISO
• Trademark：Torch
• Origin：Beijing, China
• HS Code：8479896200
• Production Capacity：50 Sets ,Mounth

Basic Info.

Model NO. LED660 Type High-speed Chip Mounter Dimensions 2600*680*1500mm Weight 420kg Max Circuit Board Size 1200*350mm Max Moving Range X Axis 1500mm, Y Axis 360mm Typical Mounting Speed 9000-14000 Cph Max Mount Speed 18000cph Component Available 0603and Above Belt Feeder 8mm, 12mm, 16mm and 24mm Power Supply 220V, 50Hz, 3 Kw Dimension 2600*680*1500mm Transport Package Wooden Package Specification CE ISO Trademark Torch Origin Beijing, China HS Code 8479896200 Production Capacity 50 Sets /Mounth

Product Description

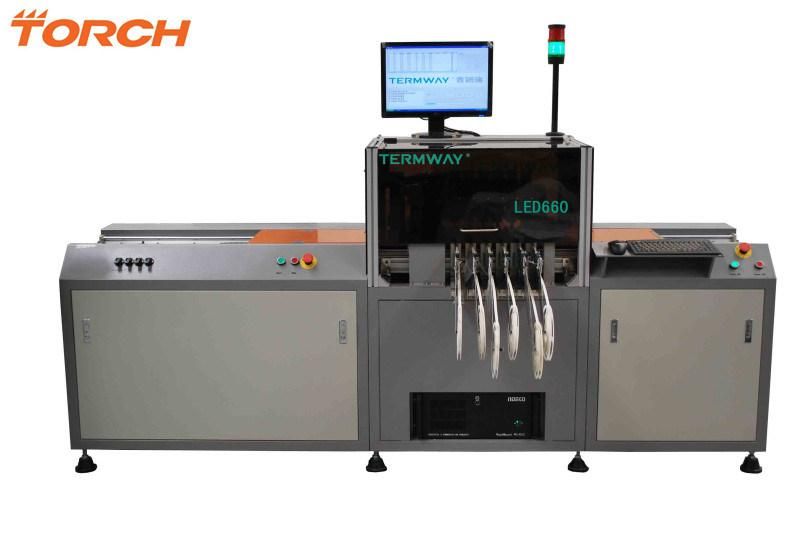

Termway Fully Automatic High Speed LED Pick and Place Machine LED660


 LED 660 is a professional LED pick and place machine, features high speed, high accuracy. It achieves LED circuit board high-volume assembly.
Remark
1 Board driving system uses high precision stepper motor driving industrial belt, cooperating with precision guide-rail to achieve the improvement on placement accuracy and board driving speed
2 Mounting head driving system uses servo motor, together with high precision ball screw to achieve the completion of the LED component picking and placing.
3 2 groups of mount head improves production efficiency of 60% than 1 group.
4 Visual programming automatically, without input component coordinates by hand. Programming is simple, easy for beginners to learn.

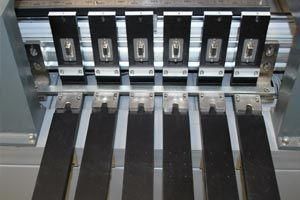

5 Different sizes of feeder can meet different requirements of LED mount.
6. Cost-effective LED chip machine is most suitable for high-volume LED production.

7 The whole machine is controlled by industrial computer with professional software, easy to operate and use.
8 Easy to import CAD data of the circuit board.
9 Stable and easy to complete the programming and placement of LED panel board
10 Panel board coordinates can be displayed in the software, fine adjustment for these coordinates to achieve high-precision placement.
11 The space of panel board can be set in software, all component placing coordinates will be showed according to the space of panel board, and the panels that need not to mount can be selected out.
12 If the board have manufacturing quality problems, LED600 can shift the component place for accurate mounting.
13 Software can realize to achieve automatically double mounting head function.
14 Software increases the XYZ axis detection limit when moves
15 software increases 6 grades speed changing function, you can check out the best speed setting.

Model	LED660
Mount head	2 pcs
Max circuit board size	1200*350mm
Max moving range	X axis 1500mm, Y axis 360mm
Max moving range of Z axis	10mm
Typical Mounting speed	9000-14000 cph
Max mount speed	18000cph
Mount accuracy	+/-0.1mm
Position method	Machinery position
Component available	0603and above SMD component and LED, SOT, SOP
Programme method	Automatic data import/ video study/ keyboard input
Belt feeder	8mm, 12mm, 16mm and 24mm
Feeder num	2 pcs of GF series feeder can be set
Operation system	WINDOWS XP
Compressed air	80 psi(0.5Mpa)
Power supply	220V, 50Hz, 3 Kw
Weight	420kg
Dimension	2600*680*1500mm
