• Model NO.：N250
• Heating Zones：2
• Heating Length：600mm
• Weight：700mm
• Preheating Method：Hot Air
• Solder Pot Capacity：220kg
• Flux Capacity：3.2L
• Solder Type：Lead-Free
• Body Size：1800(L)*1200(W)*1600(H)
• Outside Size：2600(L)*1200(W)*1600(H)
• Transport Package：Wooden
• Specification：2600(L)*1200(W)*1600(H)mm
• Trademark：JAGUAR
• Origin：China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. N250 Heating Zones 2 Heating Length 600mm Weight 700mm Preheating Method Hot Air Solder Pot Capacity 220kg Flux Capacity 3.2L Solder Type Lead-Free Body Size 1800(L)*1200(W)*1600(H) Outside Size 2600(L)*1200(W)*1600(H) Transport Package Wooden Specification 2600(L)*1200(W)*1600(H)mm Trademark JAGUAR Origin China Production Capacity 100 Sets Per Month

Product Description

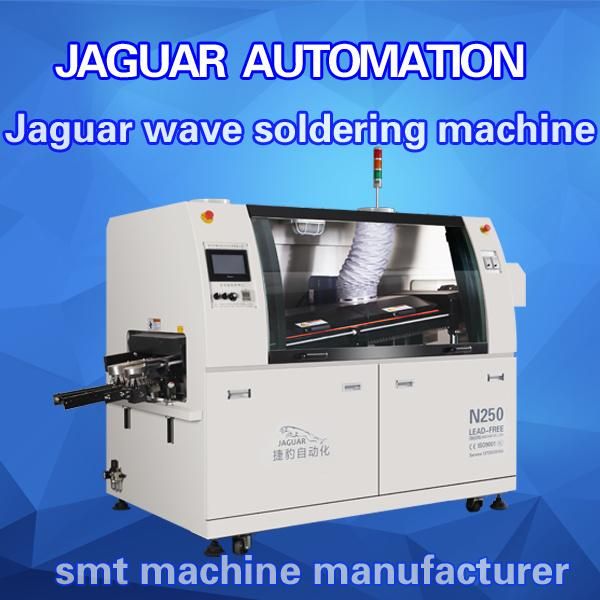

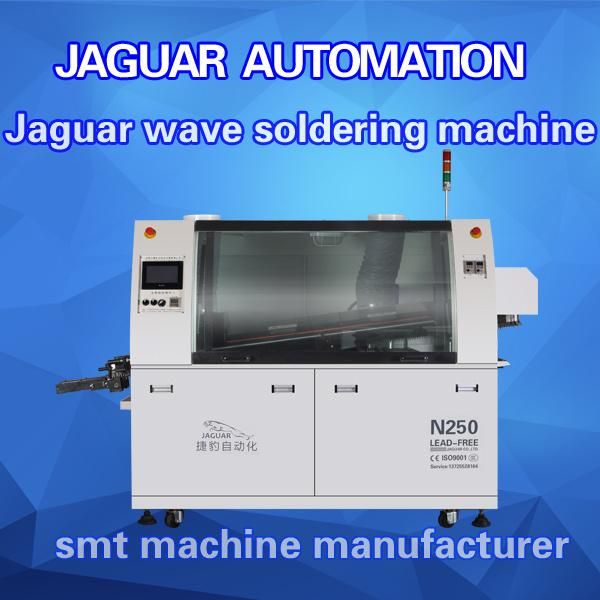

     DIP Wave soldering machine JAGUAR N250 High Quality High Efficiency


Specification:

Model No.	JAGUAR N250
Number of heating zones	2
Length of heating zones	600mm
Body size	1800(L)*1200(W)*1600(H)
Outside dimension	2600(L)*1200(W)*1600(H)
Weight	700KG
Total/running power	11KW/4-6KW
Air supply	0.5MPa
Preheating method	Hot air
Preheating power	220V 5KW
Control  method	Press key +PLC (Option: touch screen, PC)
Range of temp. control	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder type	Lead-free / Sn-Pb
Solder pot capacity	220KG
Solder pot temperature	300ºC
Solder power	380V 6KW
Solder temp. control method	PID&SSR
Wave crest drive power	500W 220V
Warm-up time of solder	About 120mins for setting 250ºC
PCB  width	50-250mm
Convey  speed	0-1800mm/min
Convey  direction	L→R (R→L optional)
Convey   angle	4-7 º
Flux pressure	3-5 bar
Flux capacity	3.2L

 Introduction:

1. Automatic conveying power system and auto synchronous board feeding functions.

2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave height.

3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4.PLC is used to control the machine, to ensure the reliability and stability of the system.

5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.

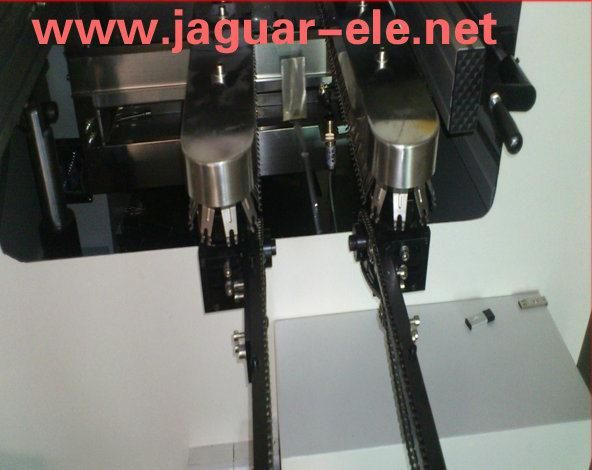

6.Special alloy transportation chain claws, non-stick tin and ensures the

7.quality of welding PCB board.

8.Tin stove adopts imported high frequency conversion motor independent control, stable performance.

9.Lead-free solder furnace with independent design, environment protection and safety, easy to clean.

10.Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

11.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

12.automatic claw cleaning function ensure the cleanliness of claws.

13.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.

FAQ1) This is the first time I use this kind of machine, is it easy to operate?

 There is English manual or guide video that show you how to use machine.

 If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.

 If the part is less than 0.5KG, we pay the postage.

 If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?

 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)

 A. Consult us about this product on line or by e-mail.

 B. Negotiate and confirm the final price , shipping , payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

  F.Send your order by air or by sea.

 5)Why choose us ?

 A. Gold supplier on Alibaba !

 B. Trade assurance to US$900,000 !

 C. Best price & Best shipping & Best service !
