• Model NO.：XJ1200,2700
• Motor：Siemens
• Transport Package：PE Film + Wooden Box
• Trademark：Newtopp
• Origin：Dongguan, China
• HS Code：8479400000
• Production Capacity：12 Sets,Month

Basic Info.

Model NO. XJ1200/2700 Motor Siemens Transport Package PE Film + Wooden Box Trademark Newtopp Origin Dongguan, China HS Code 8479400000 Production Capacity 12 Sets/Month

Product Description

1.Machine Feature:
Application:Suitable for aviation & aerospace cable,high-demand automotive cable and cable which external
signal base station etc,with excellent chemical stability,outstanding surface non-sticky,good lubrication and
resistance to atmospheric aging,and can be work at 250ºC and -60ºC low temperature for long time as well.
Model:Optimizing 1200mm vertical cold extruding line,2700mm horizontal cold extruding line
Equipment composition:
Mixer,premolding machine,cold extruding machine,traction machine(volatile box),sintering furnace,
take-up and traversing machine and outer diameter tester,main control cabinet and operating table etc.

2.Technical parameters:

Model	1200mm PTFE cold extrusion line	2700mm PTFE cold extrusion line
Structure type	Vertical	Horizontal
Cold-extruded motor	4.5KW Servo motor+5KW AC motor	50T double hydraulic cylinder
Cold-extruded force(Max)	35T	100T
Capstan power	400W	2000W
Pay-off power	750W	2000W
take-up power	750W	5500W
Volatile-tank power	8KW	15KW
Sintering furnace power	45KW	45KW
Temperature range	0-500ºC control accuracy +/-1ºC	0-500ºC control accuracy +/-1ºC
Design line speed	0-50(40) m/min	0-80(40) m/min
Plane size of machines	9280mm*2500mm(subject to the actual product)	19000mm*2500mm(subject to the actual product)
Machines height	13500mm(subject to the actual product)	13500mm(subject to the actual product)

3.Brand of main parts:
1) Motor: Siemens
2) Driver: Yaskawa or inovance
3) Bearing:NSK, NACHI, ASCHI
4) Electric components: Imported famous brands.

Equipment composition:
Mixer, Premolding machine, Cold extruding machine, Traction machine(volatile box), Sintering furnace, Take-up and traversing machine, outside diameter tester, main control cabinet and operating table, etc.

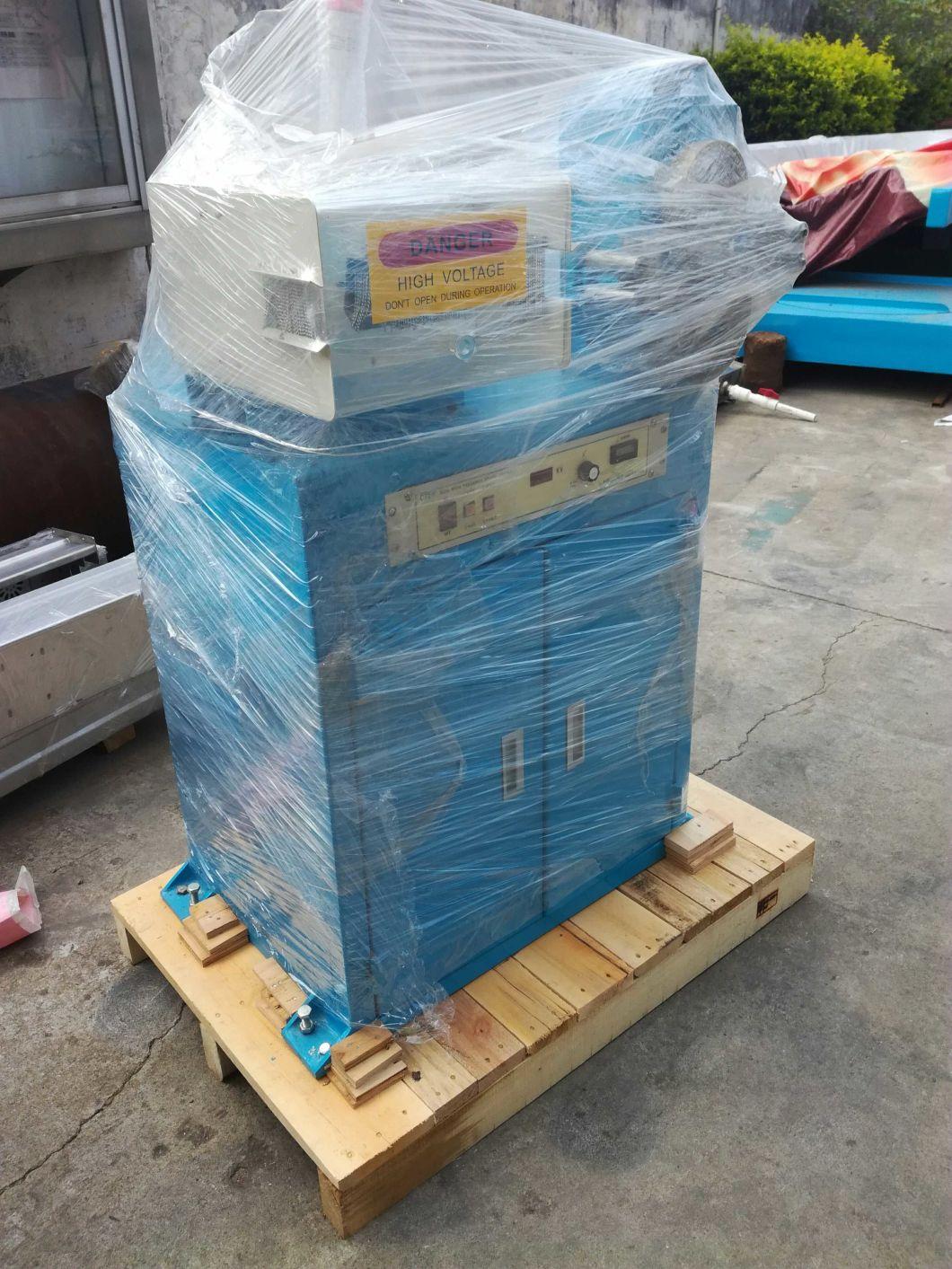

4.Packaging & Shipping:


5.Trade exhibition:








6.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.

7.Company certification


7.FAQ

1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are total over 6000 spuare meters of production workshop and offices in our factory.
2) What is the advantages of your machine compared with competitors?
Our automatic control technology is in leading position in wire and cable equipment field.
Good cost performance, quality is steady.
We combine the equipment and the wire&cable technology, offer you technology assistance.
3) How can we get to your factory to see the machines works?
Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
