Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine

Ningbo Nide Mechanical Equipment Co., Ltd.
  • Voltage：220V
  • Condition：New
  • Used for：Small Electric BLDC Motor
  • Color：Customized
  • Certificate：CE
  • After-Sales Service：Overseas Service Center Available

Base Info

  • Model NO.：ND-CY-305
  • Working Station：2
  • Machine Color：Ral9010 or as Per Customer Requirement
  • Dimension：1170*840*1230m
  • Automatic：Automatic
  • Certification：CE
  • Transport Package：Ply-Wooden Case
  • Specification：customized
  • Trademark：NIDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100 Sets,Year

Description

Product name: small type motor stator and external armature winding machineWire diameter:0.04~0.15mm, 0.15~0.45mm(the wire holder is different according to different diameter wire)Coil Wing Working stations: 2Stator OD: 12~180mmStator slot: 2~21slotsSpeed: 0~4500RPM, 0~6000RPM(adjust as per different diameter wire)Controller: micro computer LED controller/PLCPower: AC 220V 50HZMachine dimension: 1170(L) x 840(W) x 1230(H)mmWeight: about 120kg


 Motor winding machine Picture show:

1.The motor winding machine starts to wind the coil
Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine

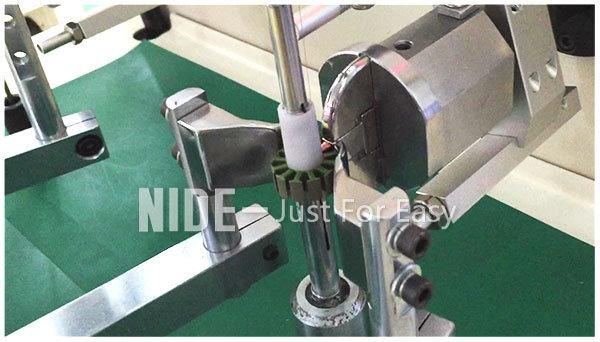

2.The motor stator winding machine coil winding process
Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine

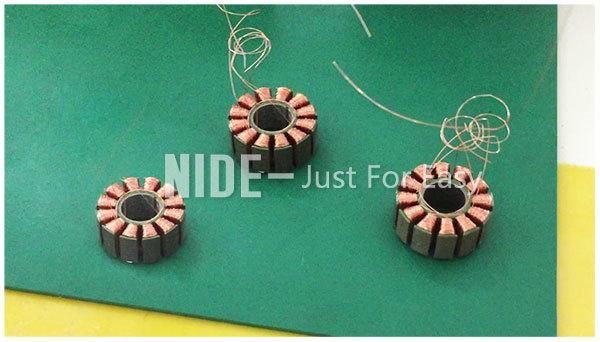

3. BLDC motor Stator display
Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine

Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine
Automatic Small BLDC Electric Motor Armature Flyer Coil Winding MachineAutomatic Small BLDC Electric Motor Armature Flyer Coil Winding MachineAutomatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine
With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine
Automatic Small BLDC Electric Motor Armature Flyer Coil Winding Machine
Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
