• Model NO.：GT-70MM
• Electric Element：Siemens and Omron
• Inverter：Siemens
• Bearing：Japan-NSK
• Motor：Siemens
• Color：Blue, Green, Red.... According to Customer R
• Precision：High Precision
• Line Speed：500m
• Heating System：Electric
• Screw Material：38crmoala with Nitrided Surface
• Transport Package：Wooden Packing or PE Film Simple Packing
• Specification：International standard
• Trademark：GOLDEN TECHNOLOGIES
• Origin：China
• HS Code：84772090
• Production Capacity：4sets,Month

Basic Info.

Model NO. GT-70MM Electric Element Siemens and Omron Inverter Siemens Bearing Japan-NSK Motor Siemens Color Blue, Green, Red.... According to Customer R Precision High Precision Line Speed 500m Heating System Electric Screw Material 38crmoala with Nitrided Surface Transport Package Wooden Packing or PE Film Simple Packing Specification International standard Trademark GOLDEN TECHNOLOGIES Origin China HS Code 84772090 Production Capacity 4sets/Month

Product Description

(1)APPLICATION:
Extruders are mostly used for various wire & cable high speed insulation sheathing stripping; single color, skin, single Color stripping and layer extruded together, double stripe,color stripping or skin coating available by using different crossheads.

It is mainly for the extrusion of PVC, PP, PE, XLPE,HFFR, material;It's used for the solid wire (0.22-4mm) and stranded wire (0.22-10mm),mainly applied in building wire, electronic wire, etc.

- Line axis height: 1000mm
- Machine color: Based on customer's requirement
- Machine direction: Based on customer's requirement
- Power: 3P/ 400V / 50Hz( based on customer's requirement )

(2)FEATURES:
- BIG CAPACITY
- Max.Speed:500M/min
- Color stripping and layer extruded together
- European crosshead, concentricity guaranteed
- Equipped with sealed circulation control system
- Auto-adjust insulation thickness.
- Dual flyer pay off, non-stop
- CNC software+IPC,PLC control
- Optional: fast color change system

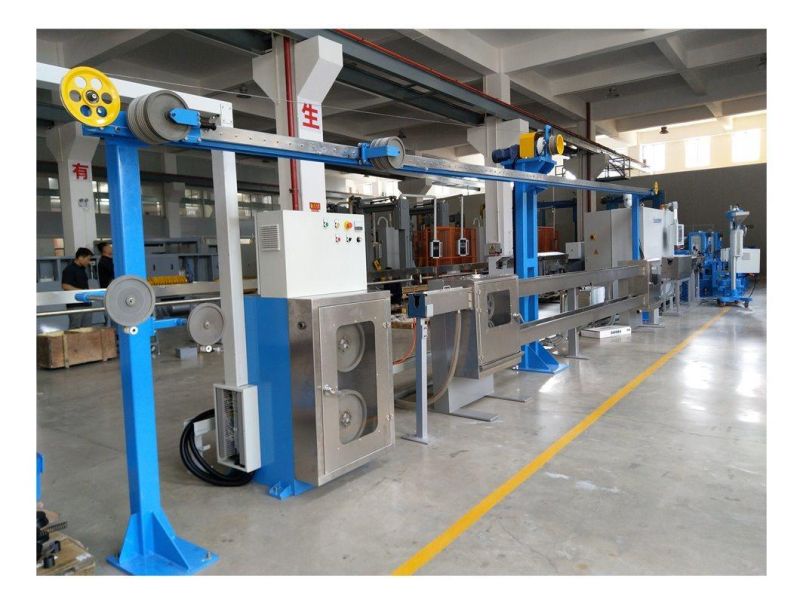

(3)COMPONENTS:

Description	Quantity	Note

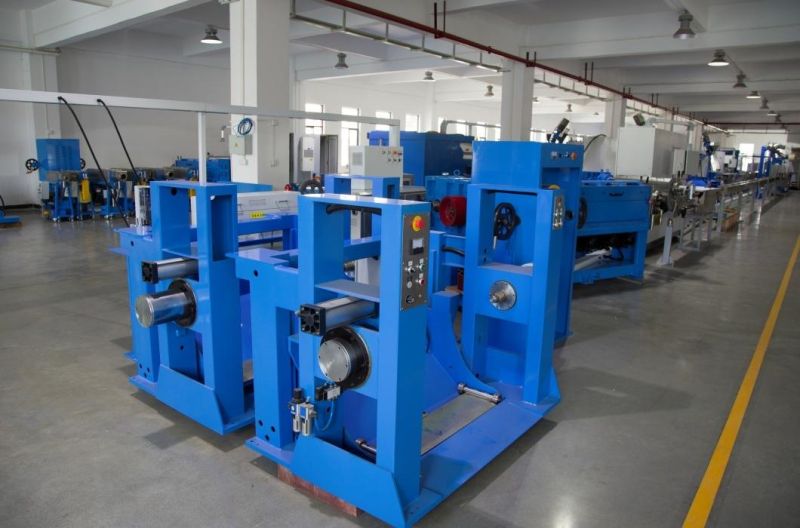

Pay off stand	1	630mm
Dancer	1

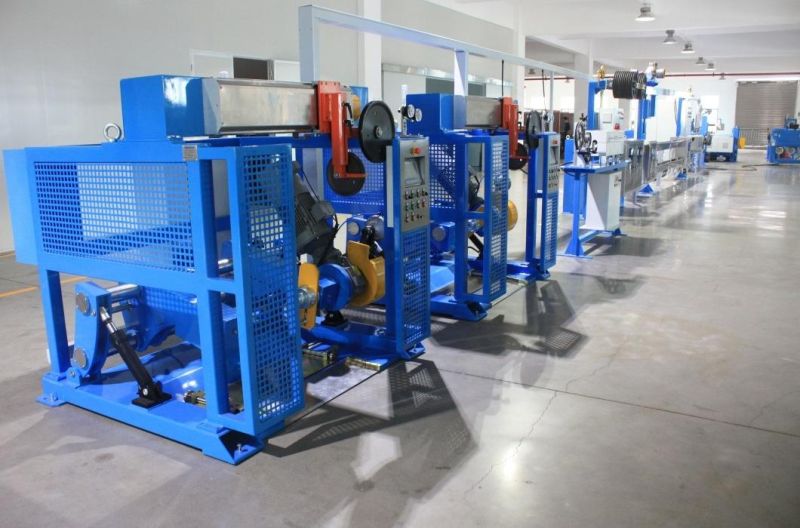

Main extruder	1	70mm
loader & dryer	1
Crosshead	1
Moving trough + single layer	1
Main cooling trough	1
Water wiper	1
Diameter controller	2
Mark printer	1
capstan	1

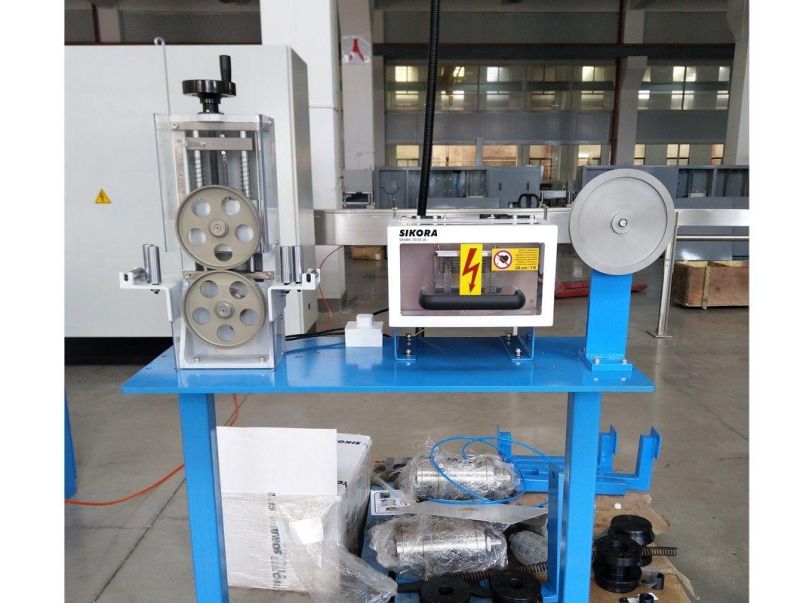

Spark tester	1	15KV
Meter counter	1

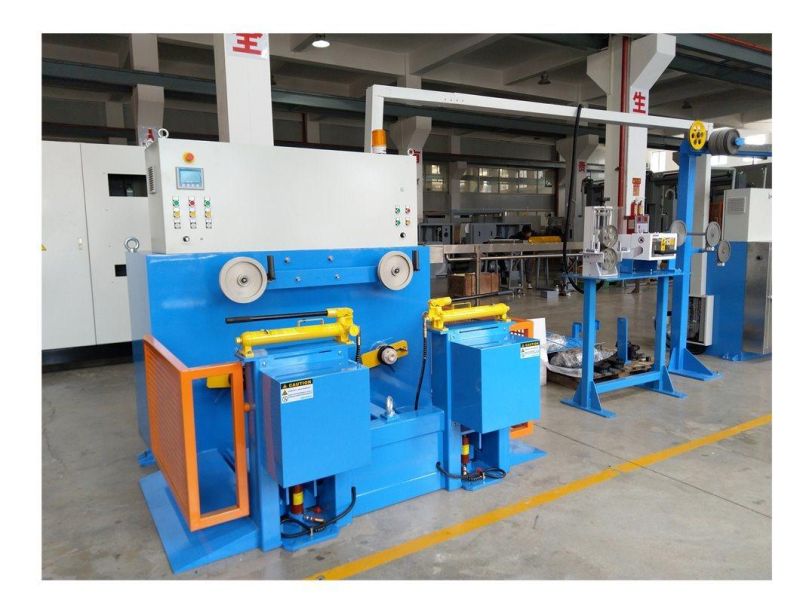

Take up	1	800mm
Control box	1	PLC + touch screen; Master control possible;

(4)ABOUT US
1. We produce all kinds of cable / wire making / processing equipment and accessories.
2. We are the leading manufacturer of  any kinds of complete wire and cable extrusion line in China since 2004.
3. We supply Site service: Install / debug / repair
4. Our machine has exported to over 60 different countries,like Germany,Poland,Italy,Russia,etc.
5. We electrical parts are used the international qualified brand, like Siemens, ABB, etc.


(5)HOW TO REACH OUR FACTORY:
1.Only 35 minutes from Guangzhou city to Dongguan city by high speed train.
2.Just 40 minutes from Shenzhen city to Dongguan city by high speed train.
3.Total 1.5 hours by car from Guangzhou airport to our factory .
4.Only 1 hour by car from Shenzhen airport to our factory.
