• Model NO.：TB680
• Preheating Temperature：90~130oc
• Wave Height Adjust Range：5~ 10mm
• Spray Work Mode：Froth
• Dimension：840 X 540 X 380mm
• Weight：70kg
• Solder Pot Capacity：37kg
• Transport Package：Wooden Case
• Specification：840 X 540 X 380mm
• Trademark：Torch
• Origin：Beijing
• HS Code：8515800090
• Production Capacity：300 Set,Year

Basic Info.

Model NO. TB680 Preheating Temperature 90~130oc Wave Height Adjust Range 5~ 10mm Spray Work Mode Froth Dimension 840 X 540 X 380mm Weight 70kg Solder Pot Capacity 37kg Transport Package Wooden Case Specification 840 X 540 X 380mm Trademark Torch Origin Beijing HS Code 8515800090 Production Capacity 300 Set/Year

Product Description

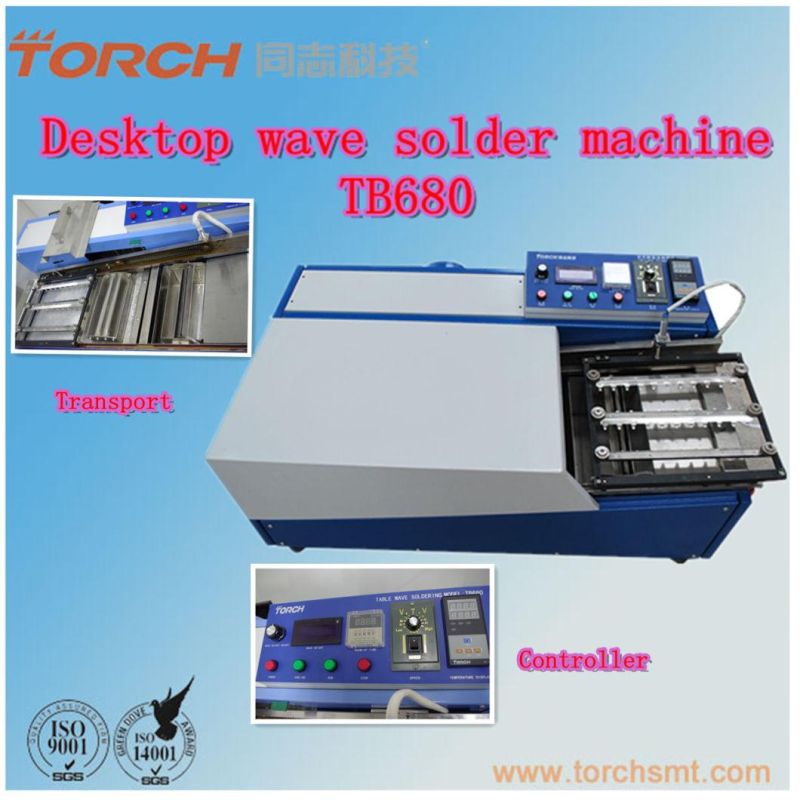

TORCH Desktop Lead free Wave Soldering Machine TB680
Features:

1. High agility: It is convenient for TB680 to control every soldering technical parameter and a high quality could be ensured.
2. Digital display of soldering temperature.
3. High reliability: High temperature sintering heating element make the machine perform steady and reliable.
4. Widely used: TB680 can replace brand iron soldering and soldering device in middle and little batch of production. It can satisfy every requirement of soldering production.
5. High efficiency: Productivity would be advanced.
6. Reasonable price, long life
7. Small size and power consumption. It meets the requirements for the production in the laboratory and factory.

Model	TB680
The max power consumption	3Kw
Solder pot capacity	37Kg
PCB width (L×W)(mm)	200 X 270mm (Max)
Temperature range	200~300ºC
Preheating temperature	90~130ºC
Wave height adjust range	5~ 10mm
Preheating t time	60min
Spray work mode	froth
Power supply	220v 50Hz
Conveyor speed	0.5~ 2m /min CTV
Dimension	840 X 540 X 380mm
Weight	70Kg
