• Model NO.：YH-8030
• Function：Stripping
• Model：Yh-8030
• Input Voltage：AC220,50Hz
• Power：1000W

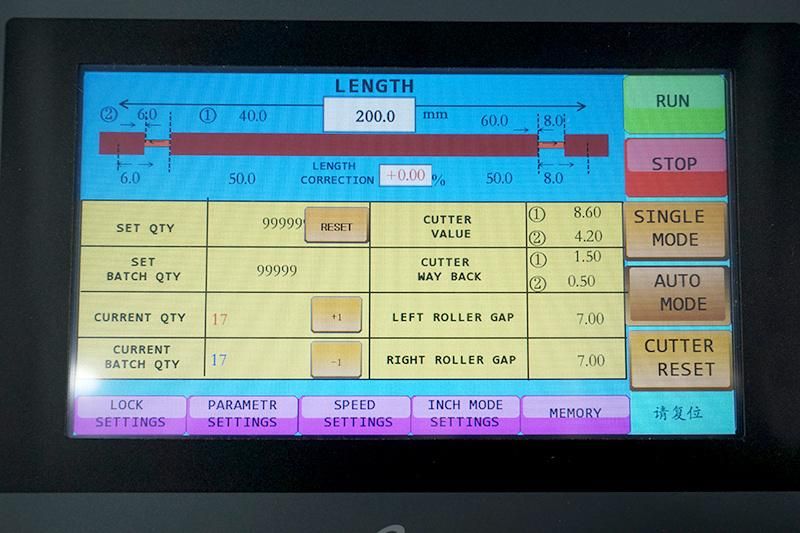

• Display：7 Inch True Color Touch Screen
• Head Peeling：Max 120mm
• Tail Peeling：Max 240mm
• Wire Type：Sheathed Cables, PVC Cables, etc.
• Stripping Range：6-30 Sq mm
• Cutting Length：1mm-99999.9mm
• Cutting Tolerance：Within 0.002*L (L=Cutting Length)
• Max Diameter of Guiding Pipe：16

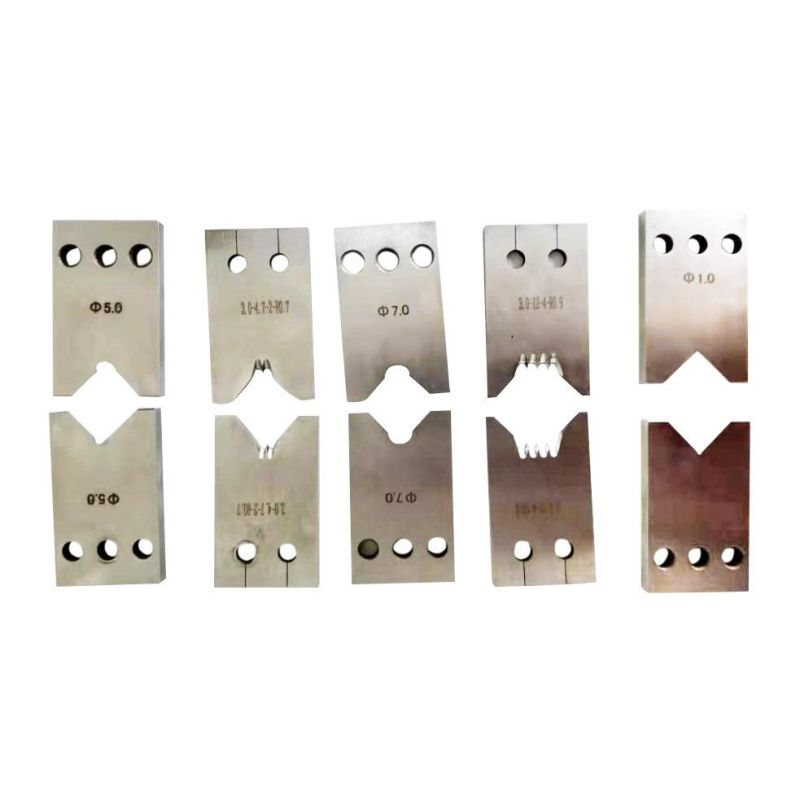

• Tool Material：High Quality Imported High Speed Steel
• Capacity：2300PCS,H
• Transport Package：Double-Layer Export Carton
• Specification：920*220*400mm
• Trademark：YH
• Origin：China
• HS Code：8479819000
• Production Capacity：L=100mm, 700-1000PCS,H

Head peelingMAX 120mmTail peelingMAX 240mmWire typeSheathed cables, PVC cables, etc.Stripping range6-30 sq mmCutting length1mm-99999.9mmCutting tolerancewithin 0.002*L (L=cutting length) Max diameter of guiding pipeΦ16Tool materialHigh quality imported high speed steelCapacity2300pcs/hRemarksThe machine can be customized for processing special cables, and the sample cable should be sent to us for test.




Features:

1.  Chinese and English switching display

2.  The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3.  Make both ends semi-stripping and twisting.

4.  Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.

Processing Capabilities: Cutting to length, Full strip,

Half strip, precision cut

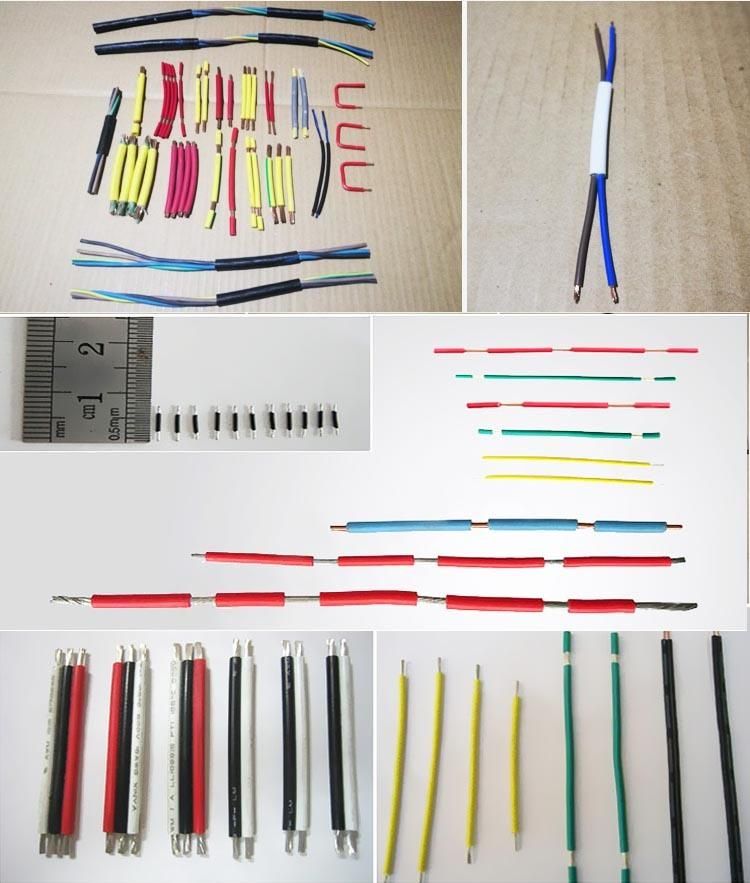

Sample: cut and strip wire automatically

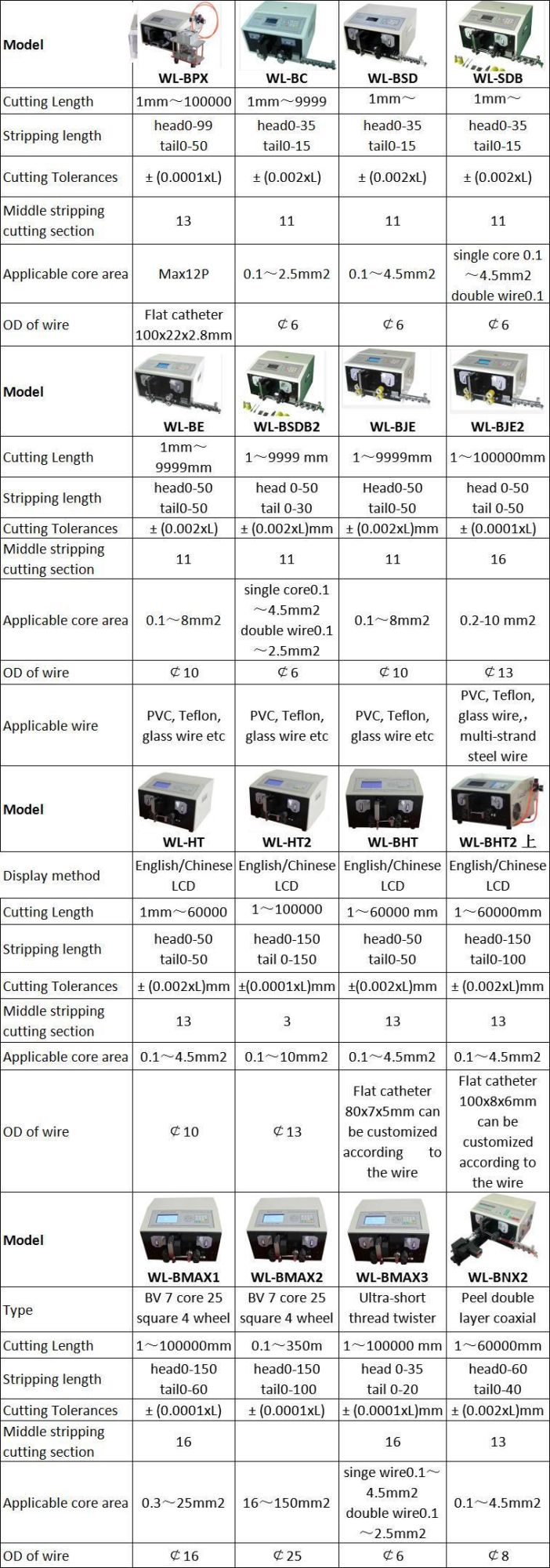

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.



Packing & Shipping:

For small and light products packed by cartons,for large and heavy products packed by wooden

Any questions, please feel free to contact us ! Thank you !
