• Model NO.：JGH-217
• Payment：100% New
• Weight：45kg
• Transport Package：Wooden Box
• Specification：PCB Cutting machine
• Trademark：JGH
• Origin：China
• HS Code：8208900000
• Production Capacity：500set,Month

Basic Info.

Model NO. JGH-217 Payment 100% New Weight 45kg Transport Package Wooden Box Specification PCB Cutting machine Trademark JGH Origin China HS Code 8208900000 Production Capacity 500set/Month

Product Description

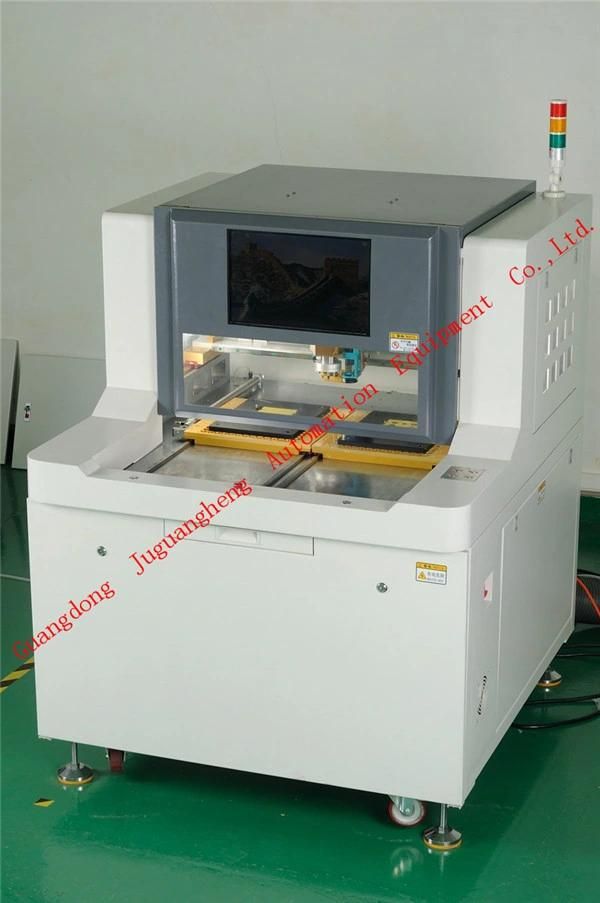

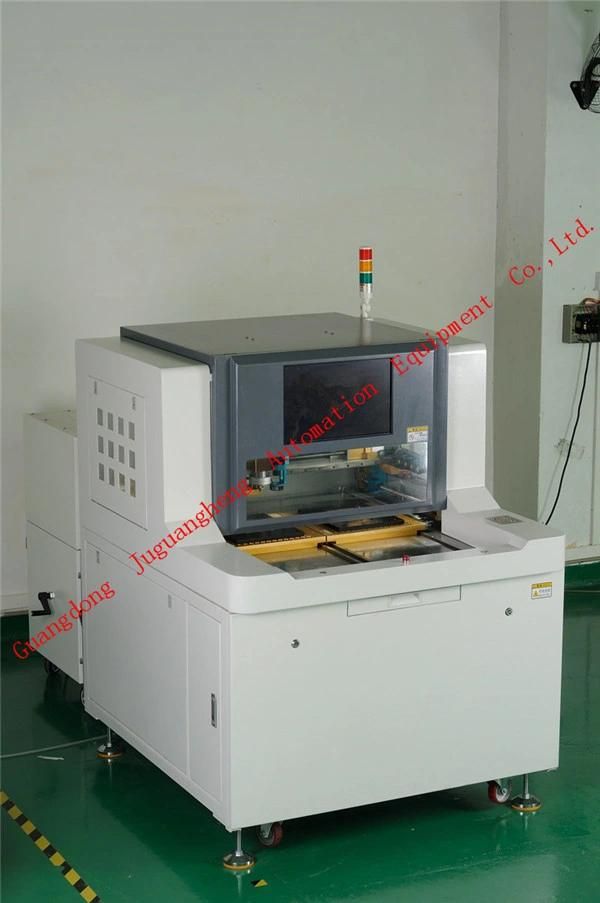

Factory price JGH-217 PCB Separator

Specification of JGH-217 curve splitter:

1. Machine repetition accuracy: ±0.01mm

(2) the control mode of XX YZ: the motion arm and PC are adopted.

3. XY Z drive mode: Panasonic servo motor

4. Human computer Operation and data Storage: windows XP system

5. Cutting accuracy: ±0.01mm

6. Spindle speed: MAX60000rpm

7. Host voltage: 220V / 50Hz

8. Narrow supply: 4.5 kg / cm ~ 2

9. Power consumption: 1.5 kW

10. Dust collection: next dust collection

11. Vacuum cleaner size: 1: L930, W550, H470mm

12. Vacuum cleaner voltage: 380V / 50Hz

13. Mainframe size: L1380 W1250 H1875mm

14. Working size: L300 W350mm (double table)




Features:

The model of dust collection is adopted, which accords with the theory of free falling body, and the effect of dust collection is good.
The substrate is fixed more firmly in the cutting to avoid the error of cutting accuracy caused by poor basic positioning.
Production of special tools, easy to fix products to be cut, to ensure high-precision product cutting requirements.
When cutting, the front part of the spindle is attached with an electrostatic generator to blow continuously, reducing the static electricity when cutting the high-speed spindle, and avoiding damage caused by static electricity.
Adopt safety door to reduce noise and dust, improve safety.

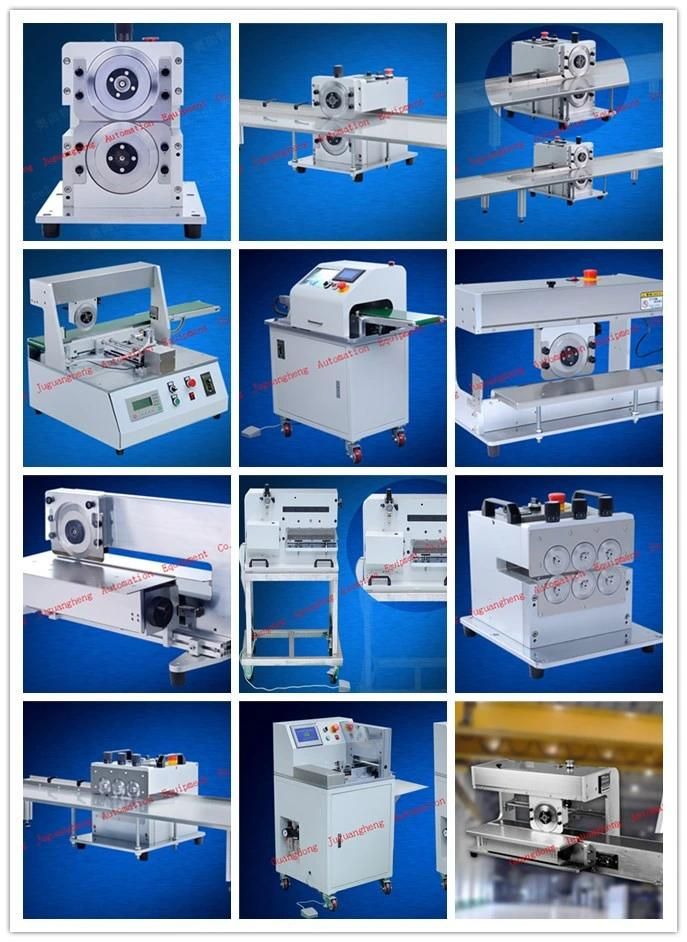

Other cutting machine model

JGH-201 PCB cutting machine

JGH-202 PCB V-cut machine

JGH-203 PCB Points machine

JGH-204 PCB Sub-board machine

JGH-205 PCB Separator

JGH-206 PCB cutting machine

JGH-207 PCB cutter

JGH-208 PCB cutting machine

JGH-210 PCB Points machine

JGH-211 PCB V-cut machine

JGH-212 PCB Depaneling machine

JGH-213 PCB Sub-board machine

JGH-214 PCB Depanelizer

JGH-215 PCB Separator

JGH-216 PCB cutting machine

JGH-217 PCB Separator

JGH-218 PCB cutting machine

JGH-508 PCB Separator

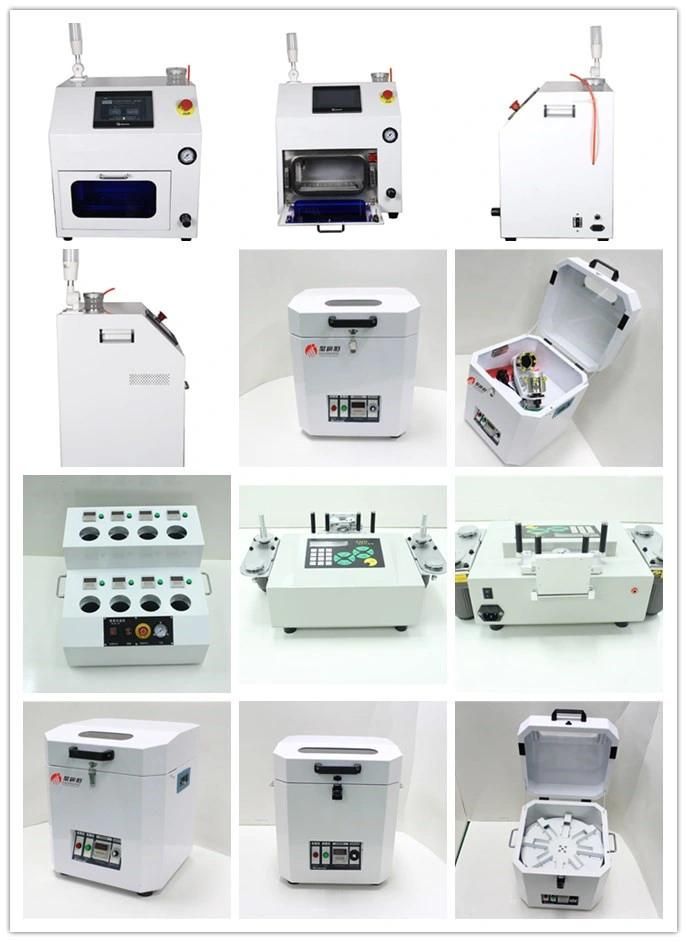

SMT Equipment from our Company:
