• Model NO.：PJL-1200
• Driven Type：Electric
• Glue & Ratio：1:1 to 20:1, Epoxy, Silicone, PU, UV
• Certificate：Ce, SGS
• Flow Speed：0-66g,5s, or Customized
• Additional Function：Heating, Vacuum, Self-Refilling, Self-Cleaning
• Transport Package：Wood Box
• Specification：1500x1200x1500mm
• Trademark：DH
• Origin：China

Basic Info.

Model NO. PJL-1200 Driven Type Electric Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV Certificate Ce, SGS Flow Speed 0-66g/5s, or Customized Additional Function Heating, Vacuum, Self-Refilling, Self-Cleaning Transport Package Wood Box Specification 1500x1200x1500mm Trademark DH Origin China

Product Description

Manual AB glue dispensing machine PJL-1200

Features and Benefits:
1, A system of metering, mixing and potting.
2, Accurate metering and even mixing helps to avoid possible waste of glue.
3, Shot size and positioning keep consistent, fast.
4, Good universality makes PJL-1200 suitable for applications of LED, electric and others glue potting needed.
5, Easy to program and operate.
6, Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing backflow device and other functional device.

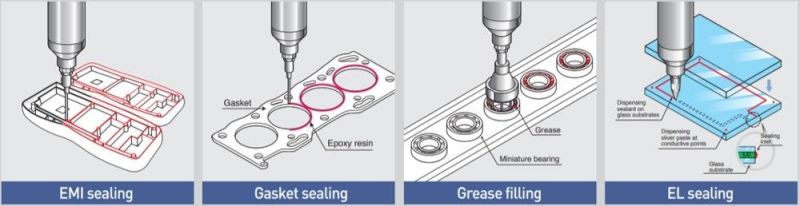

Application:
Industry: Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, electronic ballast, other electronic products and LED products where glue potting demanded.



Glue:
Epoxy, silica gel, AB glue, PU and other glue which need matching

Optional Function:
1, evacuation
2, heating
3, Geared pump & plunger piston pump are available; Customers can choose to needs.
4, Control-card will be chosen to be added in to program to needs.


Model & Type	PJL-1200 Full Auto Gluing Machine Dispenser
Certificate	CE, SGS
Dimension	1500x1200x1500mm
N.W.	260kg
metering pump	Gear pump/Screw pump/plunger pump
Flow Speed	0-66g/5s, or customized
glue viscosity	0-30000 Cps
Glue & Ratio	1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability	+/-0.02g
Accuracy	+/- 1%
Power	AC220V or AC 380V
Total Power Consume	3kw - 5kw
Additional Function	Heating, Vacuum, Self-refilling, Self-cleaning
Application	LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^
