1.0-4.0mm Copper Wire Big Toroid Inductors Coil Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Voltage：220V
  • Wire Diameter：1.0-4.0mm
  • Max.Final Coil.O.D：130-650
  • Min.Final Coil.I.D：60
  • Max.Finalcoil Height：150
  • Controller Storage Capacity Programs：29 Sets

Base Info

  • Model NO.：GWM-0619
  • Max.Taping Speed：150rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：900*600*1350
  • Weight：240kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Transport Package：Export Standard Carton with Strong Pallet
  • Specification：VDE, CE
  • Trademark：Grewin
  • Origin：Tianjin
  • HS Code：85045000
  • Production Capacity：1000 ,Month

Description

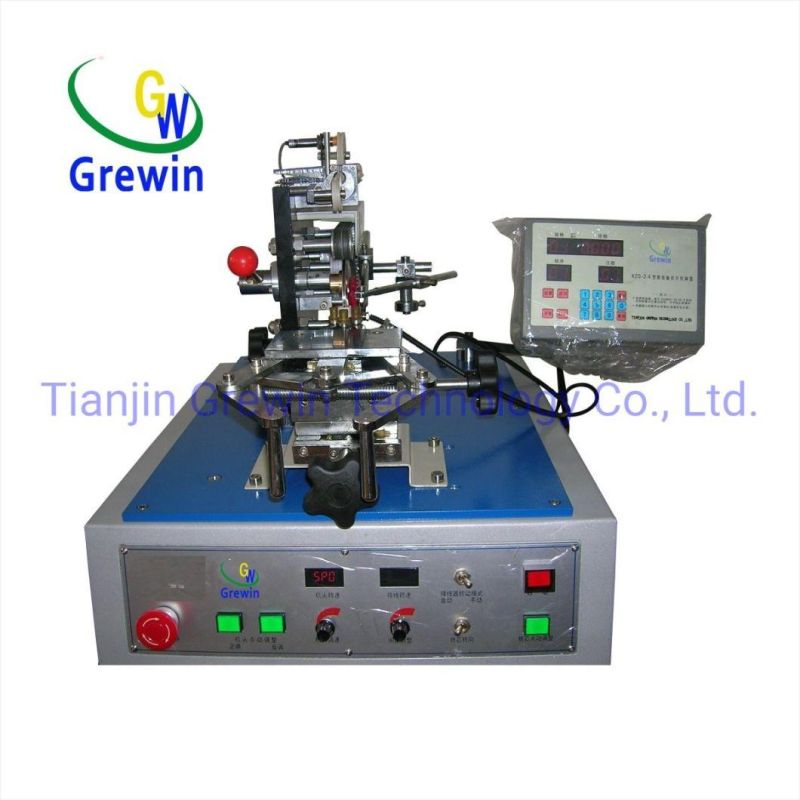

Gear type toroidal coil winding machine

1.0-4.0mm Copper Wire Big Toroid Inductors Coil Winding Machine

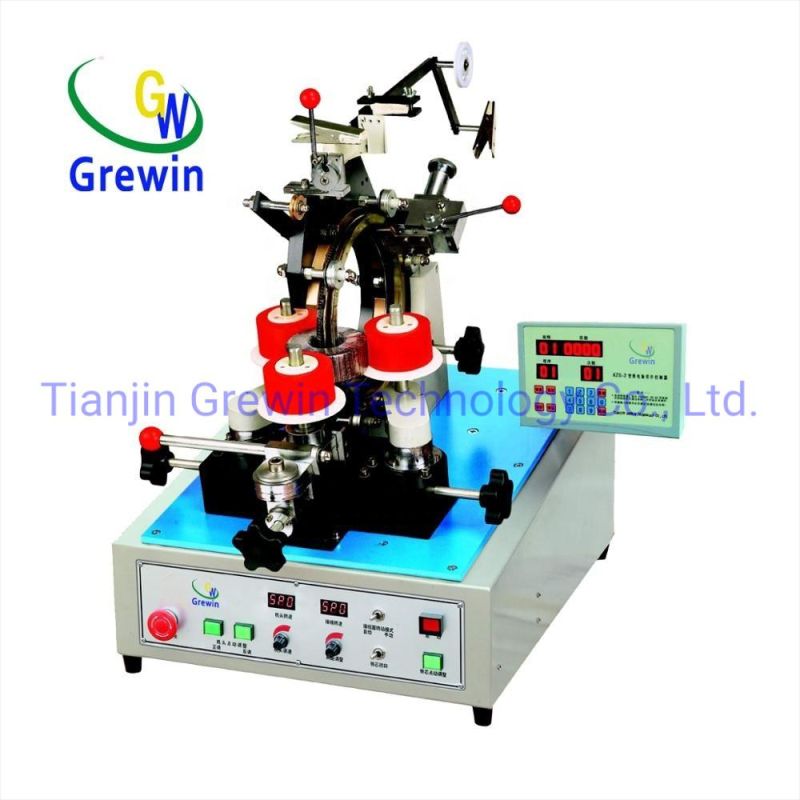

 GWM-0119 Gear type toroidal coil winding machine

1.0-4.0mm Copper Wire Big Toroid Inductors Coil Winding Machine

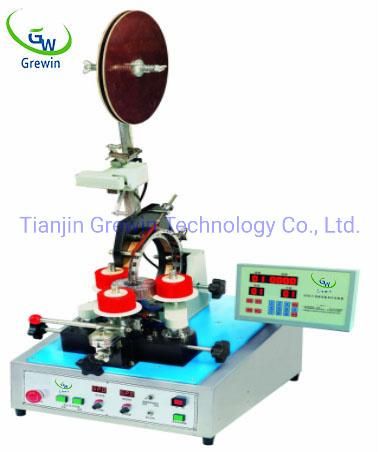

 GWM-0520P Magnetic toroidal coil winding machine

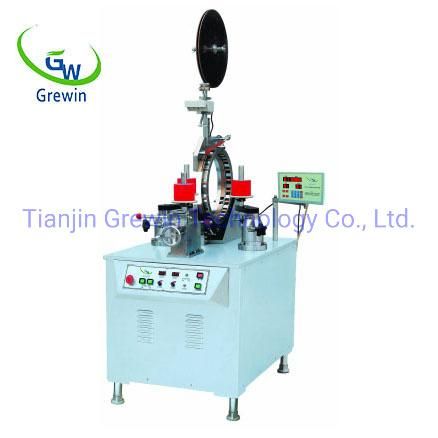

1.0-4.0mm Copper Wire Big Toroid Inductors Coil Winding MachineGWTM-0218  Gear type automatic wrapping insulating tape machine

1.0-4.0mm Copper Wire Big Toroid Inductors Coil Winding Machine

  Gear type automatic wrapping insulating tape machine
1.0-4.0mm Copper Wire Big Toroid Inductors Coil Winding Machine

 Tape width15(20,25,30)Max.taping speed120rpmMax.final coil.O.Dφ130-650Tape spacingProportional linkageMin.final coil.I.Dφ60Supply voltageAC 220V(50Hz)Max.finalcoil height150Mechanical  dimensions9000×600×1800 Controller storage
capacity Programs29 (set)Weight240kgGWTM-0418 (taping machine/Mag.OD.400)
(unit): mm

Of course we have other models, please contact us if you need.

Contect us
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
