• Model NO.：WIND-NR158
• Weight：800 Kg
• Dimension：1330X800X2000mm
• Air Source：0.4~0.7 MPa
• After-Sales Service：Engineers Avaiable to Service Overseas
• Transport Package：Wooden Case
• Specification：Middle Size
• Trademark：Wind Automation
• Origin：China
• HS Code：8479811000
• Production Capacity：100 Sets,Year

Basic Info.

Model NO. WIND-NR158 Weight 800 Kg Dimension 1330X800X2000mm Air Source 0.4~0.7 MPa After-Sales Service Engineers Avaiable to Service Overseas Transport Package Wooden Case Specification Middle Size Trademark Wind Automation Origin China HS Code 8479811000 Production Capacity 100 Sets/Year

Product Description

Automatic Stator Inslot Needle Coil Winding Machine

This needle coil winding machine can be customized as per different requirements. Tooling changeover is fast and convenient.

(1) Features
4 working stations to do synchronous winding
Winding controlled by 4 servo spindle
High efficiency and production
Precise servo drive control of the wire feeding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

(2) Specification

Stator OD	Max 120mm
Stator ID	10~100mm
Stack length	Max 100mm
Stator weight	Max 3KG
Wire range	0.1-1.2mm
Winding speed	600rpm
Power	11 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1330x800x2000mm
Weight	800KG

(3) Application

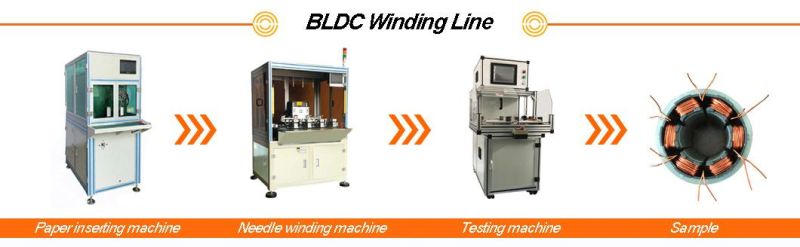

It is suitable for various kinds of brushless motors.

(4) Operation process
Click mould open button, then put workpiece into the tooling.
Choose auto mode, then select edited product program.
Press start button with two hands, machine will start to do automatic winding.
After winding, machine will automatically reset.
Click mould open button, manual unload workpiece.

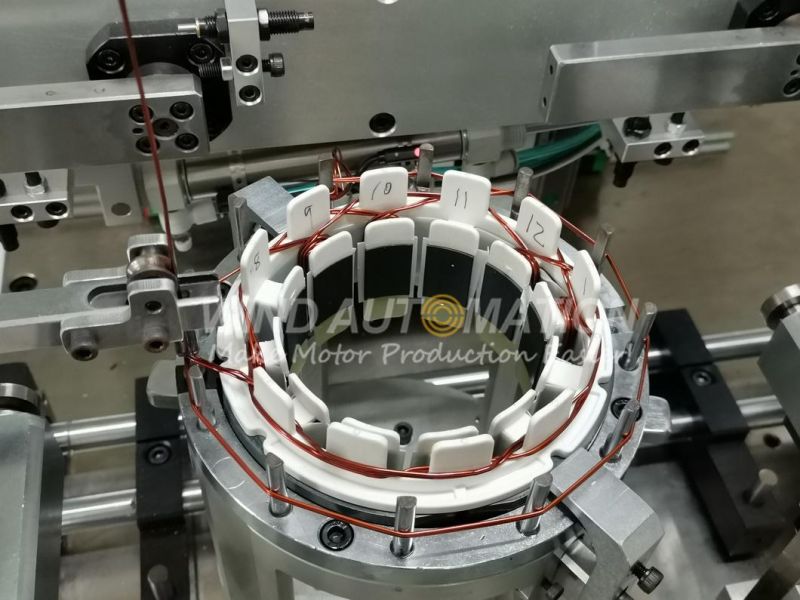

(5) Machine working station
