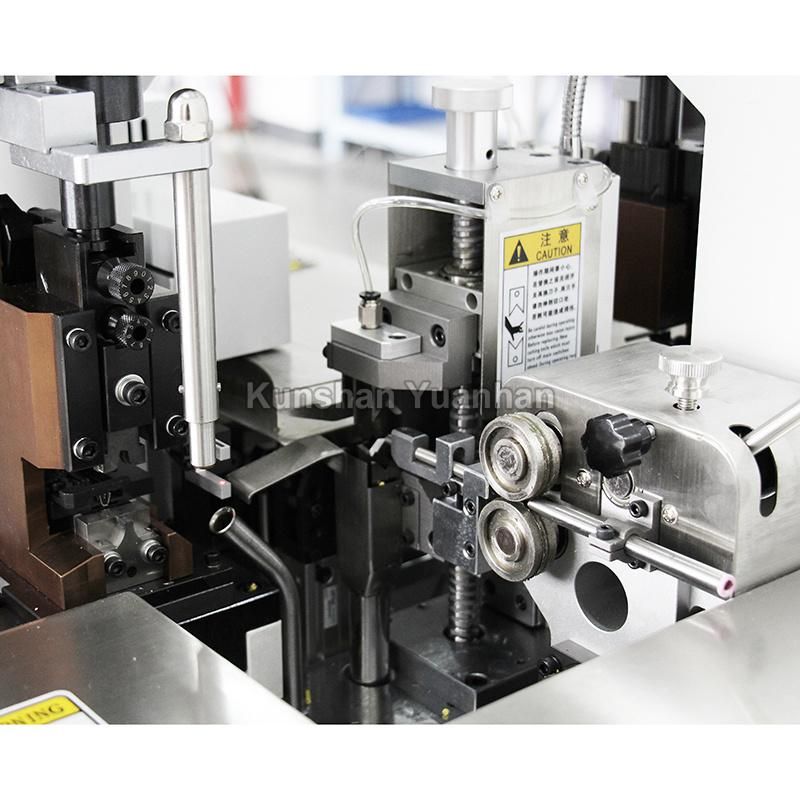

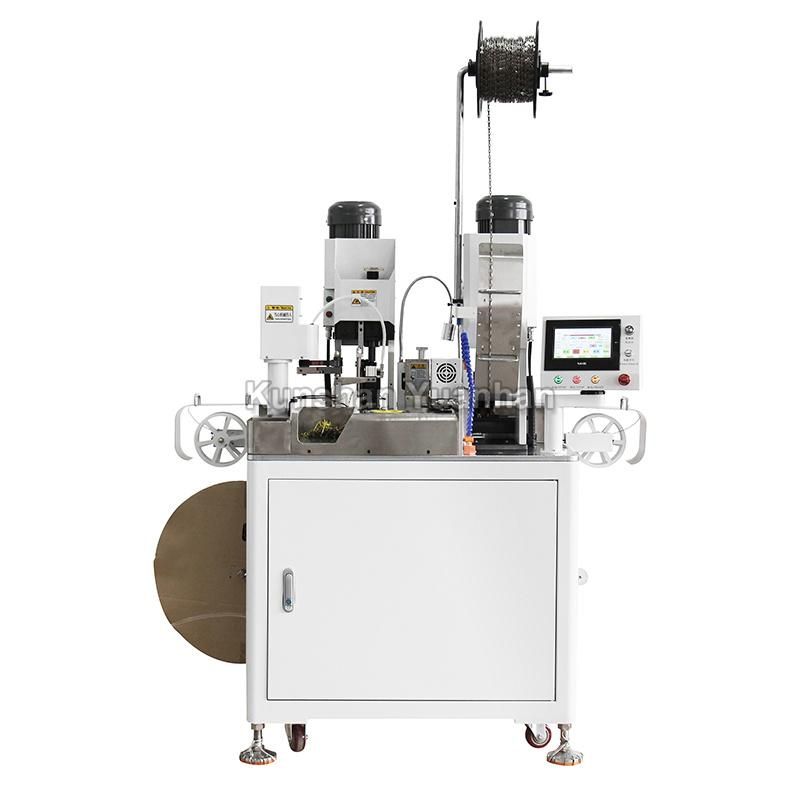

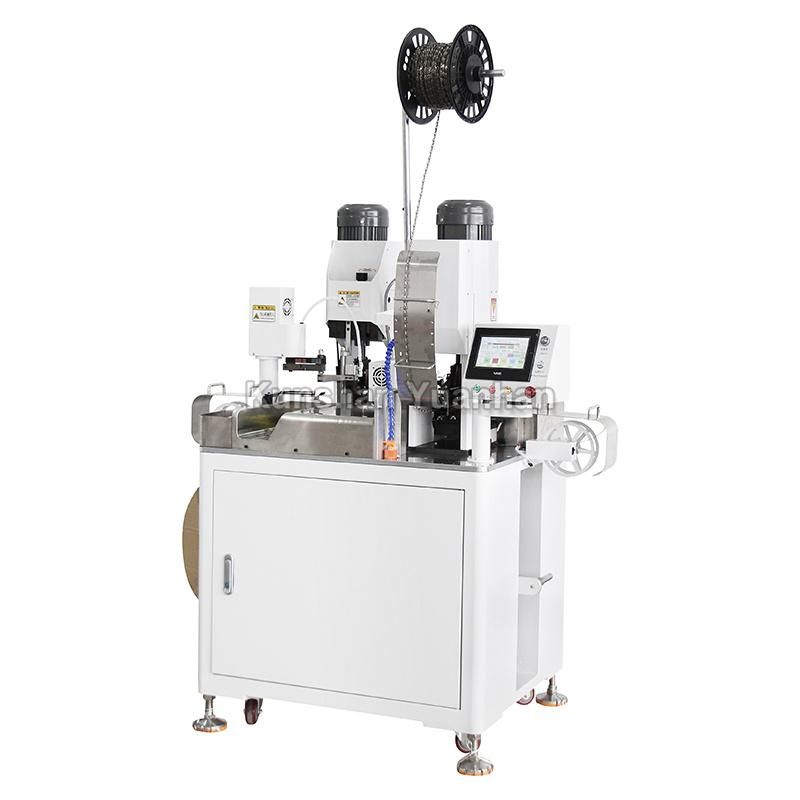

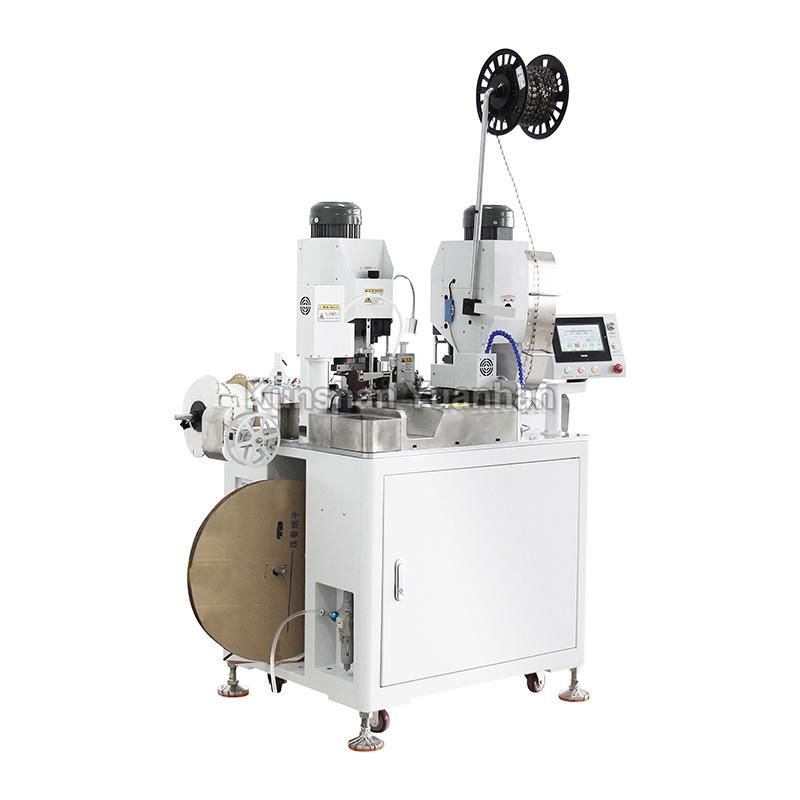

Continues Terminal Strip Cut and Crimping Machine

Kunshan Yuanhan Electronic Equipment Co., Ltd.
  • After-sales Service：24h
  • Driven Type：Electric
  • Condition：New
  • Certification：RoHS, ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic

Base Info

  • Model NO.：YH-SF201
  • Model：Yh-Sf201
  • Wire Cutting Length：26mm-9999mm
  • Cutting Tolerance：≥1m, Below ±0.02%
  • Stripping Length：0.5mm-35mm (Half Stripping Is Required for More Th
  • Cutting Speed：5500 PCS,H (Within 100mm)
  • Processing Efficiency：4000-4800,H (Within 30~200mm)
  • Crimping Force：2.0t, Other Pressures Can Be Customized
  • Applicable Wire：AWG30#-AWG14#
  • Applicable Applicator：Otp Horizontal Applicator, Straight Applicator (EU
  • Motor：5 Sets of Mitsubishi Servo Motors + 2 Sets of Step
  • Screw：4 Sets of Tbi Screw
  • Slide Rail：7 Sets of Upper Silver Rail
  • Bearing：Sweden SKF
  • Terminal Crimping Capacity：2t,3t European Precision Frequency Conversion Term
  • Voltage：AC220V 50Hz
  • Transport Package：Carton,Wooden Case
  • Trademark：YH
  • Origin：China
  • HS Code：8479819000

Description

ModelYH-SF201Wire cutting length26mm-9999mmCutting tolerance≥1m, below ±0.02%Stripping length0.5mm-35mm (half stripping is required for more than 12mm)Cutting speed5500 pcs/h (within 100mm)Processing efficiency4000-4800/h (within 30~200mm)Crimping force2.0T, other pressures can be customizedApplicable wireAWG30#-AWG14#Applicable applicatorOTP horizontal applicator, straight applicator (European applicator can be customized)Motor5 sets of Mitsubishi servo motors + 2 sets of stepper motorsScrew4 sets of TBI screwSlide rail7 sets of upper silver railBearingSweden SKFTerminal crimping capacity2T/3T European precision frequency conversion terminal machineVoltageAC220V 50HzAir pressure0.5~0.6MPa (stable, clean, dry)Rated power1.8KWDimensionslength 1380 * width 750 * 1580 height (mm)Weight360KgContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping MachineContinues Terminal Strip Cut and Crimping Machine

Continues Terminal Strip Cut and Crimping Machine

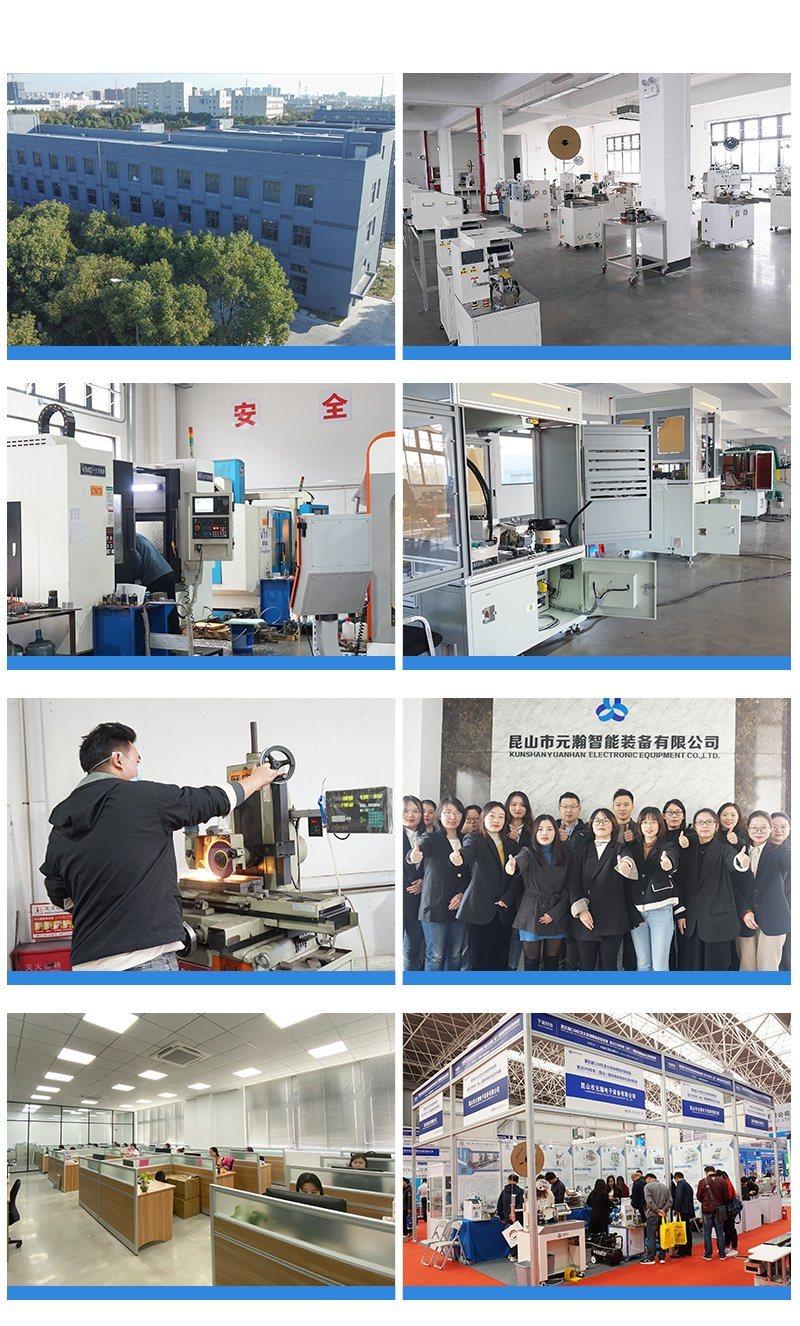

Packaging DetailsExport standard package for  terminal crimping machineDelivery detailsWithin 3-5 working daysOur company

Continues Terminal Strip Cut and Crimping Machine

Yuanhan wire harness processing machines are widely used in automotive, home appliances, communications, rail transit, nuclear power, aerospace, charging piles, photovoltaic and new energy industries. With an annual output of more than 10,000 sets of wire harness processing equipment, we deliver efficient, high-quality services and fast solutions to many customers around the world.
