• Model NO.：T4
• Type：High-speed Chip Mounter
• Mounting Head：4 Groups
• Max Working Size：580*230mm
• Typical Pick and Place Speed：6000~8000cph
• Max Speed：8000cph
• Repeat Accuracy：± 0.015mm
• Position：Visional Position
• X,Y Axisprecision：+,- 0.001mm
• Repeat Mount Precision：+-0.015
• Position Manner：Visional Position
• Component Available：Above 0201 and Less Than 38 mm IC (48mm Camera and
• Transport Package：Wooden Case
• Specification：ISO9000 ISO14000
• Trademark：TERMWAY
• Origin：Beijing
• HS Code：847989620
• Production Capacity：15PCS,Month

Basic Info.

Model NO. T4 Type High-speed Chip Mounter Mounting Head 4 Groups Max Working Size 580*230mm Typical Pick and Place Speed 6000~8000cph Max Speed 8000cph Repeat Accuracy ± 0.015mm Position Visional Position X,Y Axisprecision +/- 0.001mm Repeat Mount Precision +-0.015 Position Manner Visional Position Component Available Above 0201 and Less Than 38 mm IC (48mm Camera and Transport Package Wooden Case Specification ISO9000 ISO14000 Trademark TERMWAY Origin Beijing HS Code 847989620 Production Capacity 15PCS/Month

Product Description

High accuracy smt 0201 placement mounter Machine T4

General Characteristics:
1. The whole structure is made of cast + marble platform. The bottom of the high-level marble platform; X, Y-axis gantry structure, X-axis beam using the casting process, Y-axis gantry marble structure with marble platform integration, effectively guarantee the reliability and stability of long-term use Mounter.



2.  Using imported precision square rail, effectively improve the placement accuracy.

3.  Using a unique high-definition optical prism industrial cameras to complete mount high-precision components.

4.  With the vision position system, can automatically identify the MARK point, effectively improve SMT production
efficiency and placement accuracy.

5.  Automatic visional programming, it is no need to input the coordinates of components by manual, programming is simple, easy to learn for beginners and it is convenient and practical.It can universally import the PCB data, it is most suitable for mass production in middle scale.

6.  Standard configure a set of minitype IC tray.

7.  The placement configure 8 nozzles.

8.  Cost-effective automatic placement machine, it is most suitable for mass production in middle scale and scientific research military industrial enterprises high quality usage.

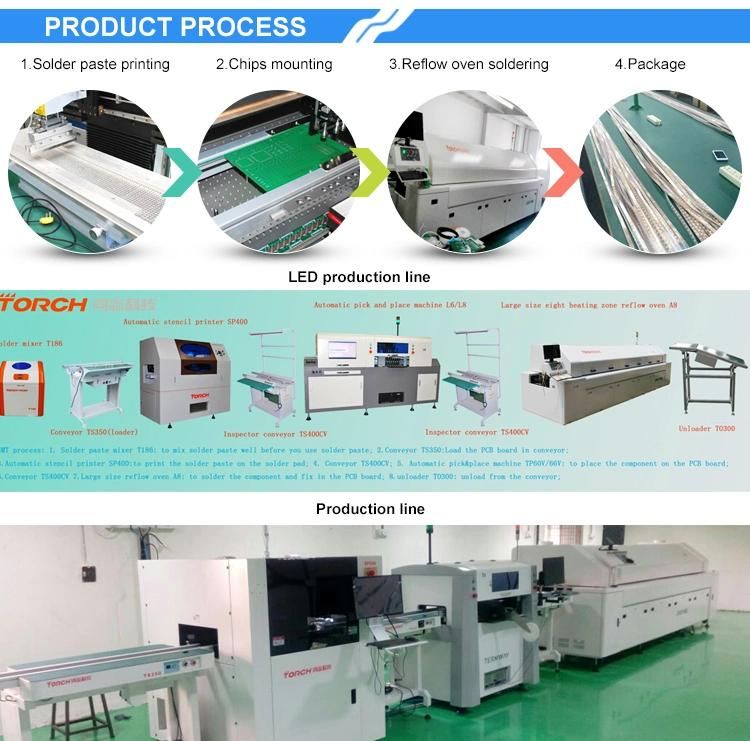

9.  The placement configure a set of PCB board transport system, it can seamless connection with stencil printer
handplace desk and reflow oven.



Technology Parameters:
1. Mounter head: 4 heads
2. Max PCB board: 600×240mm
3. Max move range: 640×460mm
4. Z axis move range: 20mm
5. Typical speed Without vision: 6000-8000cph with vision: 4000-6000cph
6. Max speed:  8000cph
7. X,Y axisprecision: +/- 0.001mm
8: Repeat mount precision:  ±0.015mm
9. Position manner:  Visional position
10. Component available: Above 0201 and less than 38 mm IC (48mm camera and lens are selected)
Programme method Automatic data import / video learning / keyboard input
11. Transmission: XY-axis high precision ball screw with precision guide+ Industrial dual-belt drive+ grating ruler position
12. Tape feeder:  Optional 8mm,12mm,16mm,24mm,32mm,44mm feeder
13. Feeder No.: Can be put 70 pcs of 8MM GFTA-08S feeder the front and back can be put 35pcs 8mm GFTA-08S feeder (no IC tray)   Can be put 80 pcs of 8MM CF feeder
14.  IC feeder NO. : No more than 2 pcs
15. Operation system: WINDOWS XP/win7(32bit)
16. Compressed air:  80psi 0.5Mpa flue 90L/min
17. Power: 220V,50Hz 5Kw
18. Weight:  700Kg
