Automatic PVC/PE Wire Cable Coiling and Wrapping Machine

JIANGSU YESSJET PRECISE MACHINERY CO., LTD.
  • Voltage：380V
  • Warranty：1 Year
  • Origin：China

Base Info

  • Model NO.：CP1040,CP1860

Description

Basic Info.

Model NO. CP1040/CP1860

Product Description

AUTO COILING & WRAPPING 2 IN 1 MACHINE AND AUTO STACKING DEVICE SYSTEM
1.Features
  • Auto-cable coiling with continuous wrapping in one machine.

  • Automatic adjustment of the wire arm,no manual adjustment.

  • Automatic cable feeder,no manual labeling,more safe and convenient.

  • Suggestion connect with the Auto-Stacking System or Auto-Palletizing System to make more efficiency production line.

  • When there is a problem,the error will be detected automatically and the operator will be alerted by an alarm.

  • Save manpower,expand production capacity and improve industrial automation

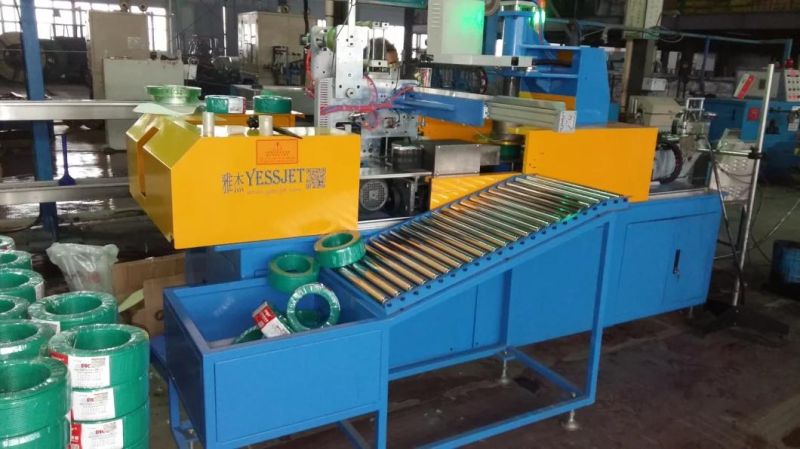

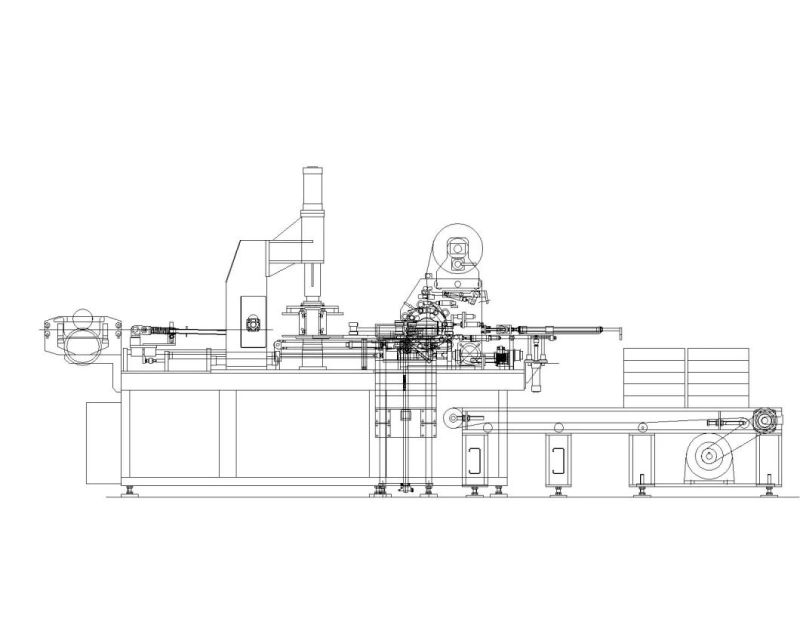

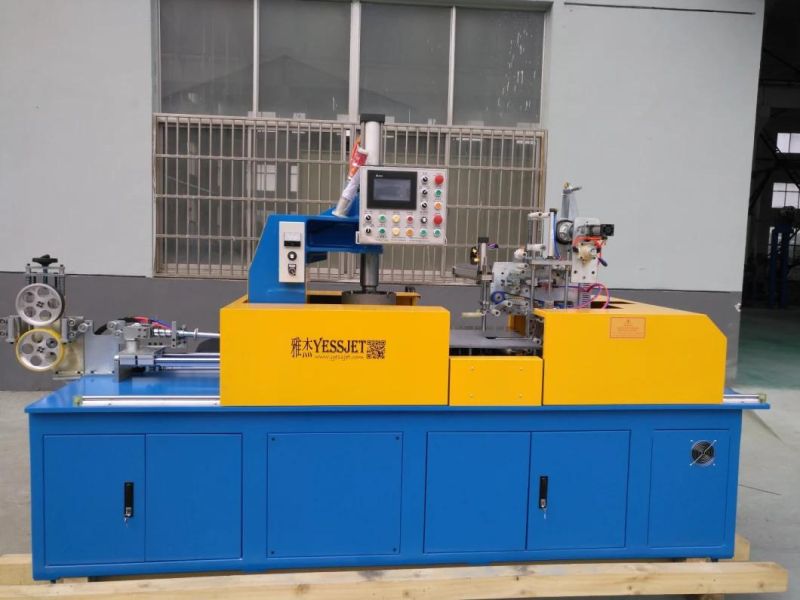

2.Equipment Picture

Automatic PVC/PE Wire Cable Coiling and Wrapping MachineAutomatic PVC/PE Wire Cable Coiling and Wrapping MachineAutomatic PVC/PE Wire Cable Coiling and Wrapping MachineAutomatic PVC/PE Wire Cable Coiling and Wrapping Machine

3.Technical Parameters
ModelHeight
(mm)		Outside Diameter
O.D (mm)		Inside Diameter
I.D (mm)		Cable Diameter
(mm)		Wrapping MaterialAverage output Speed
(100M/Coil)
CP104050-100180-400120-2003-10PVC/PE2-2.5 coil/min
CP186080-180280-600180-2504~15PVC/PE1~1.5 coil/min

Automatic PVC/PE Wire Cable Coiling and Wrapping Machine
Automatic PVC/PE Wire Cable Coiling and Wrapping Machine
Automatic PVC/PE Wire Cable Coiling and Wrapping MachineAutomatic PVC/PE Wire Cable Coiling and Wrapping MachineAutomatic PVC/PE Wire Cable Coiling and Wrapping Machine
