1.5/2.5/4/6 mm2 Cable Extrusion Machines
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Screw L/D：26:1
Base Info
- Model NO.：XJ-70,80,90,120,150
- Customized：Customized
- Motor Brand：Siemens
- Inverter Brand：Yaskawa or Inovance
- Bearing Brand：NSK
- Machine Name：Cable Extrusion Machines
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, China
- HS Code：8479400000
- Production Capacity：10 Sets,Month
Description
Double heads harp type passive pay-off/ doube bobbins shaftless passive or active pay-off , applicable bobbin:Φ500-1250mm, Gantry type and double column type pay-off, applicable bobbin: Φ1250-2000mm.Take-up type Φ400-630 Double shafts Φ400-630 Double shafts Φ630 -1000
Single shaft Φ1250 -2000 Single shaft Φ1250 -2000 Single shaft ITEM DESCRIPTION QTY
(pcs/set) REMARKS 01 Active or Passive type pay-off 1 02 Tension buffer rack 1 03 Straightening device 1 04 Powder machine 1 option 05 Main extruder 06 Automatric drying hopper and suction machine 1 07 Numerical control electric cabinet 1 08 Movable water tank 1 09 Fixed cooling water tank 1 10 Horizontal wire accumulator 1 11 Double wheel belt capstan 1 12 Caterpiller 1 option 13 Take-up machine 1 14 Meter counter 1 15 Printer 1 option 16 Laser diameter tester 1 17 Power frequency spark tester 1 18 LED Electronic displayboard 1
1) Used widely:Suitable for insulation extrusion for sheathing/jacket of power wire, computer wire, high-frequency data cable etc.
2) High output: Optimize the design of screw, screw durable, chromeplate non worn down, non conglutination, color-change quickly, high speed, high output.
3) High quality: Extrusion concentricity:over 90%, OD tolerance: +/- 0.03mm;
4) Temperature control stability: Adopted SCR power controller with imported high quality temperature control table and copper casting heater, temperature tolerance: +/- 1ºC;
5) Easy operation: Exclusive adopted NEWTOPP Teflon specialized touch screen, both provide Chinese/English operation interface, automatic control, easy to operate.

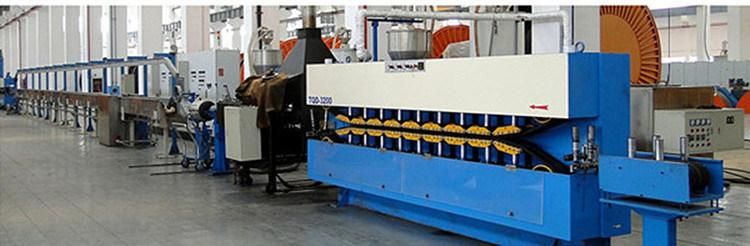

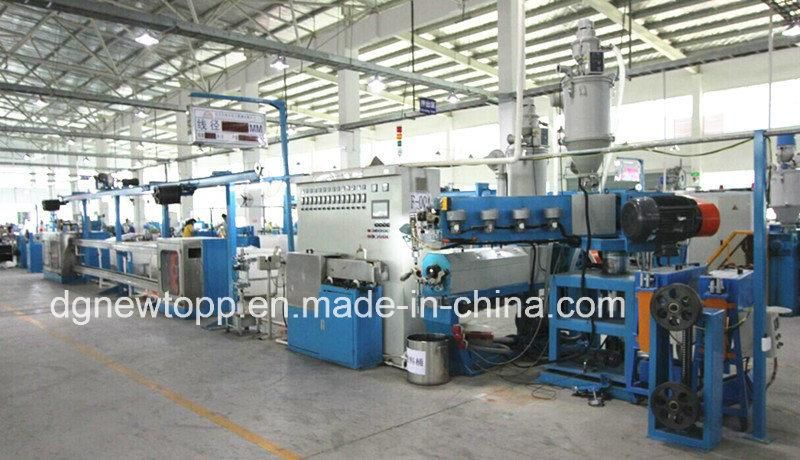

5. Machine pictures:
6. Abuot us:Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding/twisting machine, planetary cage type twisting machine, triple-core stranding machine with back-twist, single/double layer wrapping/taping machine and so on; Our products have passed CE certification and SGS audited , and our factory have passed ISO9001 quality management system certification and ISO14001 environmental sytem certification.
7. Some of our certificates:
8. Packaging and Shipping:
9. Our exhibitions:
10. FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years of R&D and manufacturing experience in the field of cable machinery ; our machines are exported to different countries, such as Italy, Russia, Iran, Japan, India, Korea,Thailand, Malaysia, Vietnam etc, and have received recognition and praise from customers.
2) How can we get to your factory to see the machines?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 2.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
