• Model NO.：WG-9850
• Power Consumption：Min.20W-Max.380W
• Funtaion：Stripping & Cutting
• Wire Diameter Range：5-25mm
• Stripping Layers：1-9
• Strip Length：250-400mm
• Stripping Mode：Rotary Blade,Cutter and Stripping Blade
• Transport Package：Wooden Case
• Specification：1430*700*1300mm
• Trademark：wingud
• Origin：China
• Production Capacity：120,Month

Basic Info.

Model NO. WG-9850 Power Consumption Min.20W-Max.380W Funtaion Stripping & Cutting Wire Diameter Range 5-25mm Stripping Layers 1-9 Strip Length 250-400mm Stripping Mode Rotary Blade,Cutter and Stripping Blade Transport Package Wooden Case Specification 1430*700*1300mm Trademark wingud Origin China Production Capacity 120/Month

Product Description

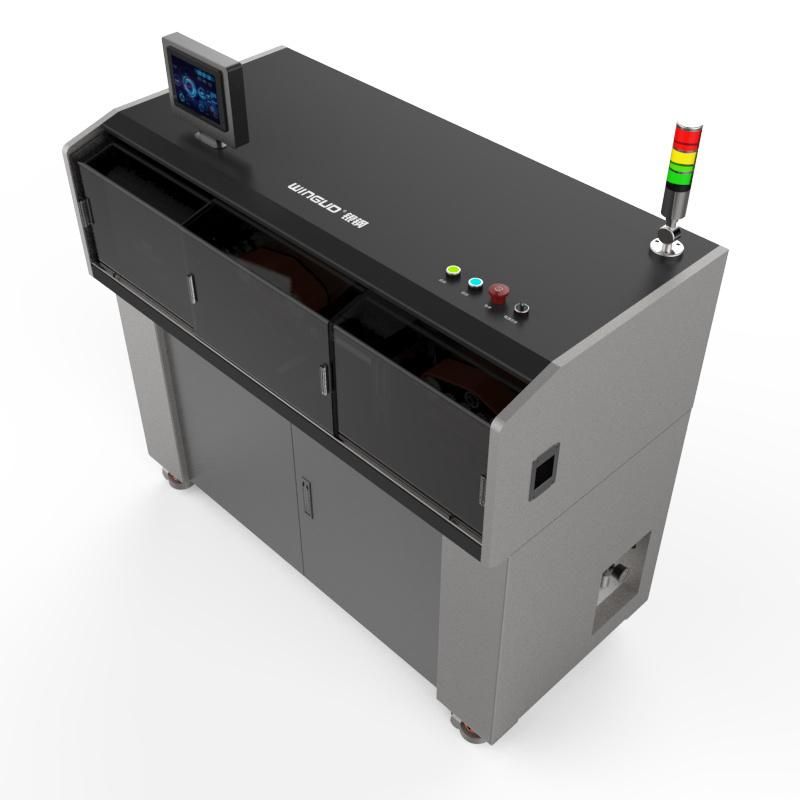

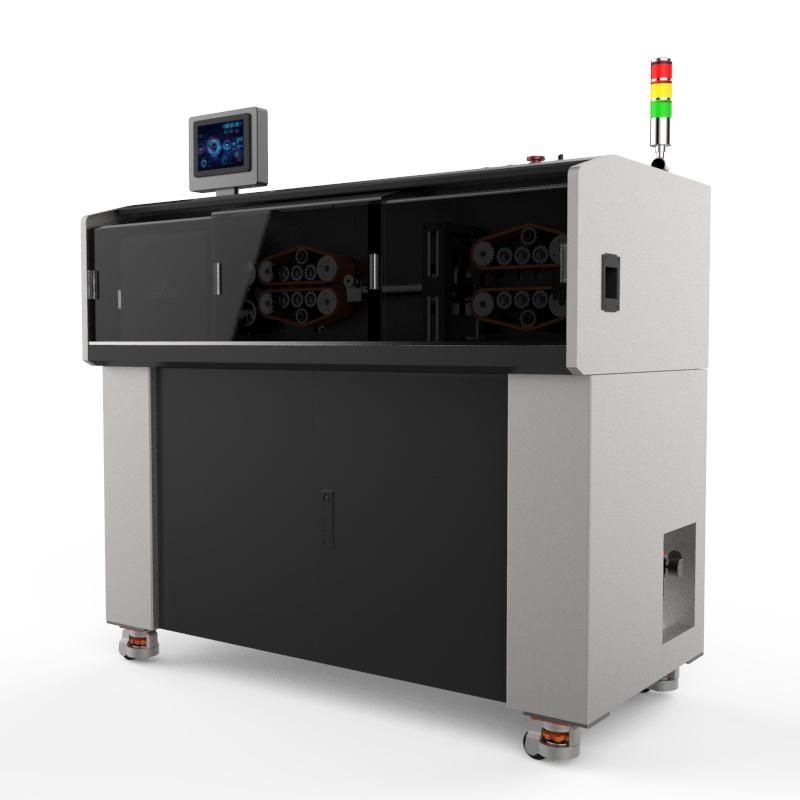

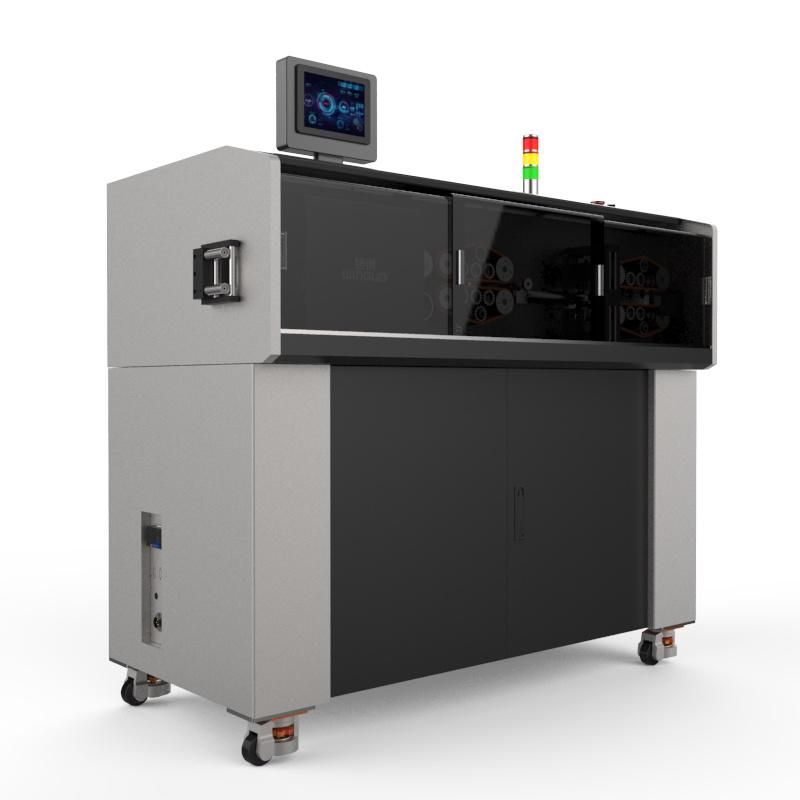

WG-9850 Automatic Big Square EV Cable Stripping Machine
Functional Characteristics:

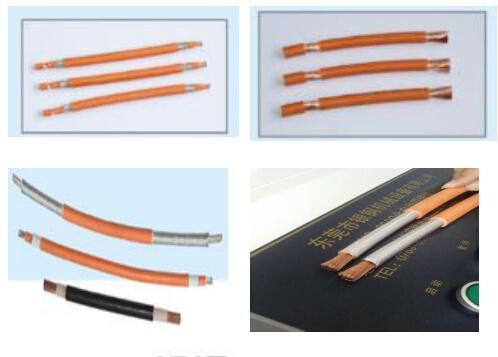

WG-9850 Automatic Big Square Coaxial Wire Cutting and Stripping Machine is mainly designed for process of the thick cables and the multi-layer cables.  It can complete the wire cutting, multi-layer or multi-stage stripping in one time. This machine is using the rotary blade for cutting and V shape blade for peeling, accurately improve the quality and output of the processed products under the interwork of these two blades. The incision is flat and level with no hurt to the conductor. It can complete the process of the whole range of cable machining of various types and diameters with no need to change and blades. All the processing data can be saved into the set file for convenient use and simple operation. This machine has powerful functions. It has reserved 10 ports for the in and out signals from the equipped auxiliary equipment. This machine is equipped with four control units and one one set of independent encoder, using 11 motors + imported ball screw drive. All the motors for the whole machine are closed loop stepper motor (stepper motor with encoder) which have the same function and effect with the servo motor.

Technical parameters:

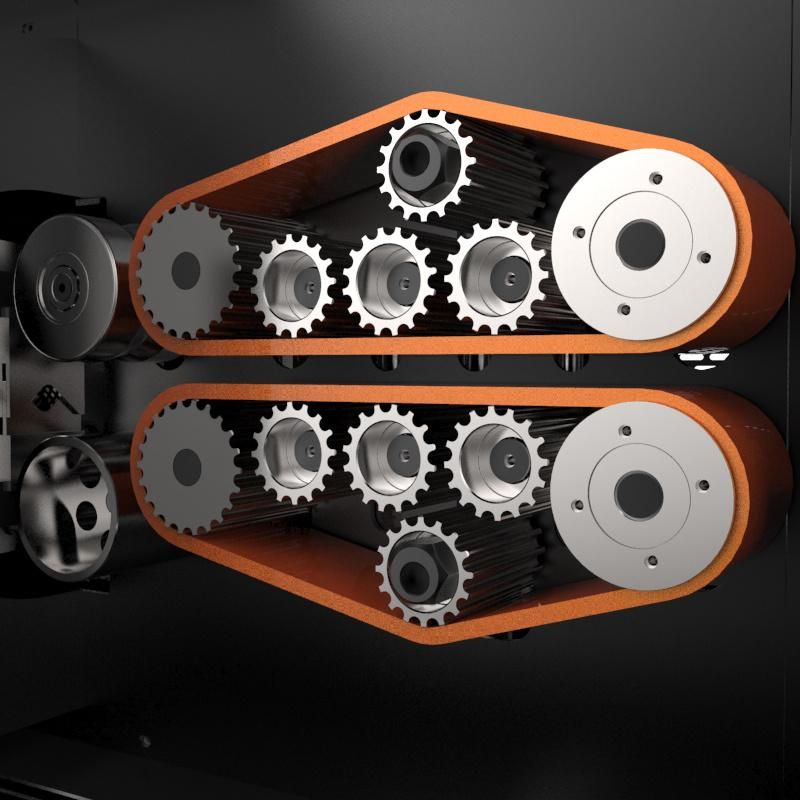

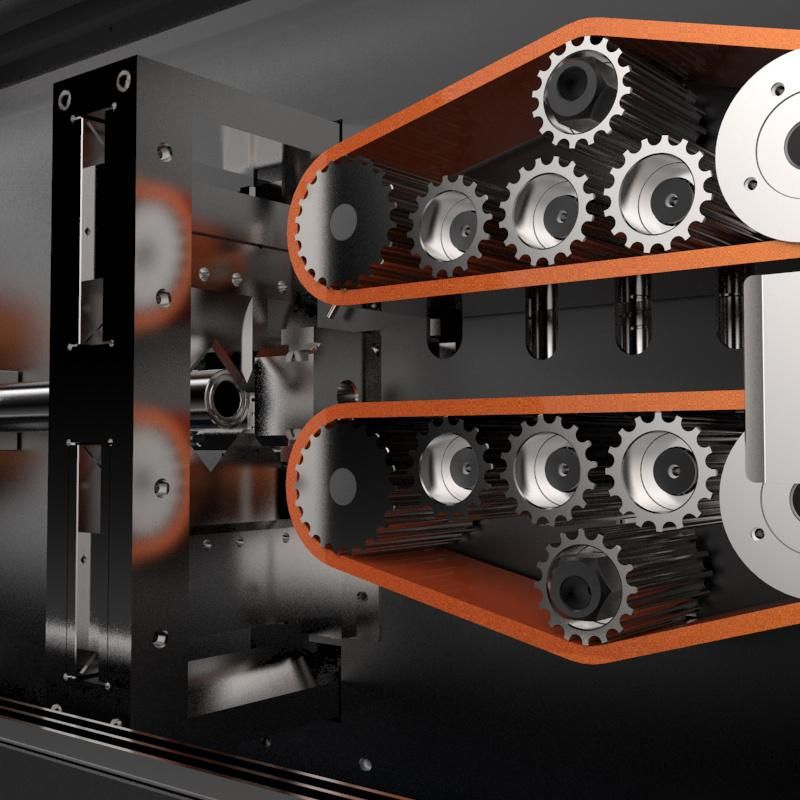

• Four feeding belts and four individual driven motors in feeding unit.
• The cut and strip unit is using one closed loop servomotor with imported ball screw drive for cutting and peeling. The exchange of displacement is also using one closed loop stepper motor.
• The rotary cutting unit is using three groups of closed loop stepper motor to control the rotary cutting and wire clamping. A set of DC motor to drive the blade rotation.
• Feeding pipe unit: using one closed loop servomotor  to control the  up and down of the of the material pipe.
• Machining diameter: 5~25mm
• Cutting length: 0~50m (customizable for longer length)
• Cutting depth unit: 0.01mm
• Minimum length for each stripping: 1mm
• Maximum stripping layer: 6 layers
• Driving mode: motor/ball screw drive
• Cutting and stripping blade: 4pcs; Material: imported high-speed steel
• Rotary blade: imported tungsten steel; 2pcs
• Maximum stripping length on A side: 300mm
• Maximum stripping length on B side: 200mm (it can reach 250mm for half stripping)
• Productivity: 200-300pcs/h

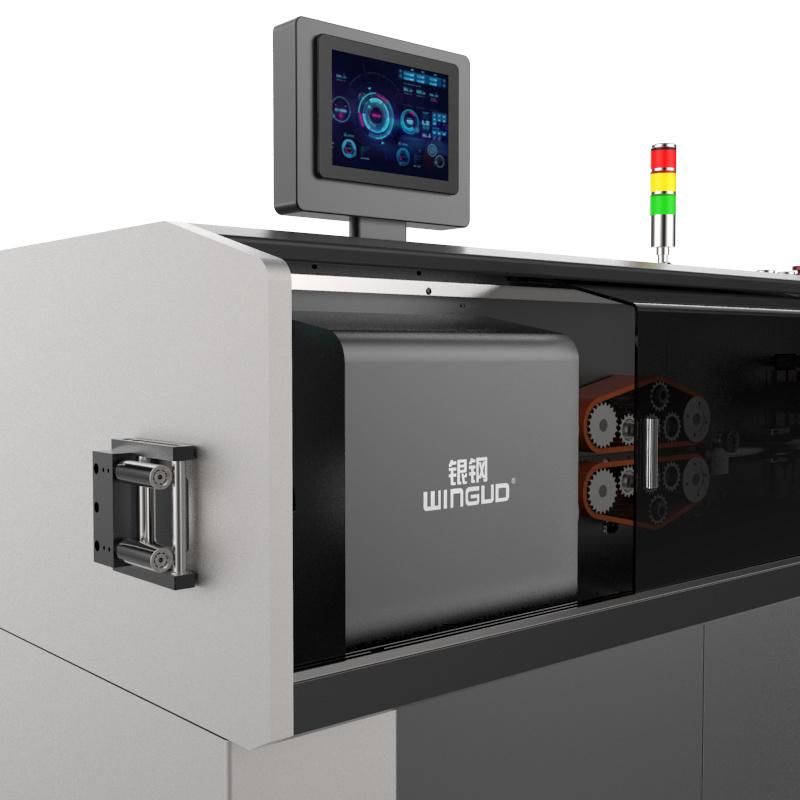

• Display mode: 7 in touch screen with simplified Chinese interface
• Power supply: AC220V
• Pressure wheel set: motor driving, digital program to control the pressing force on material wheel.
• Memory capacity: 100 kinds of cable machining data
• Weight: 280KGs
• Power: 1.2KW
• Dimension: 1160*700*1240mm
