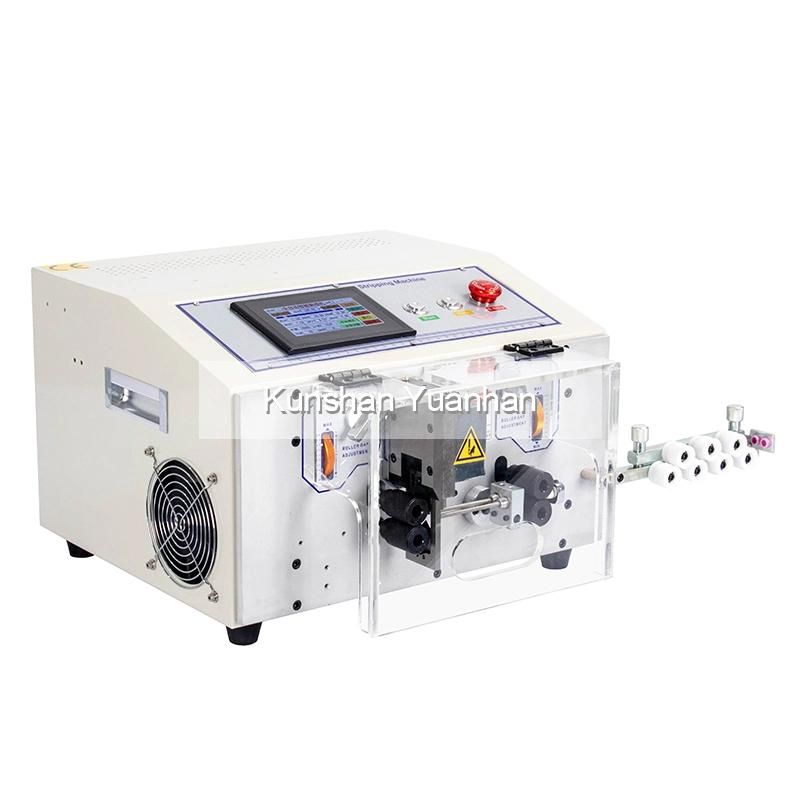

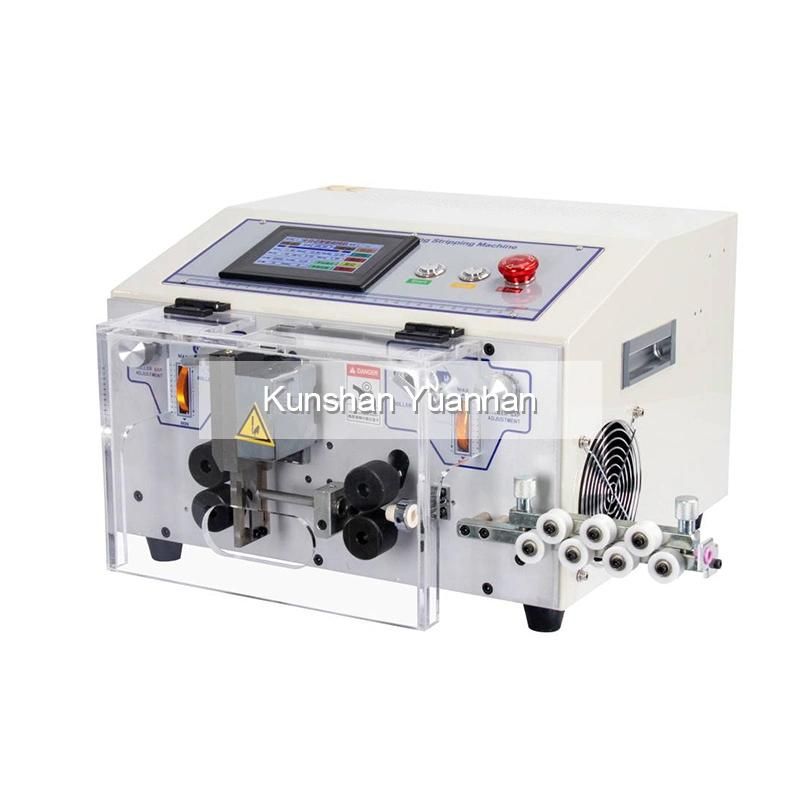

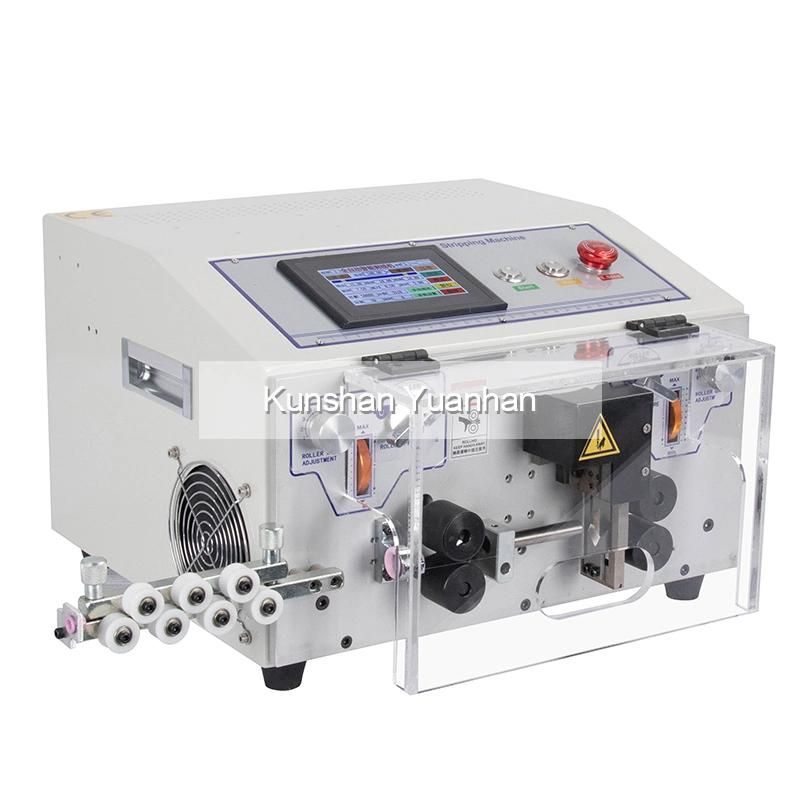

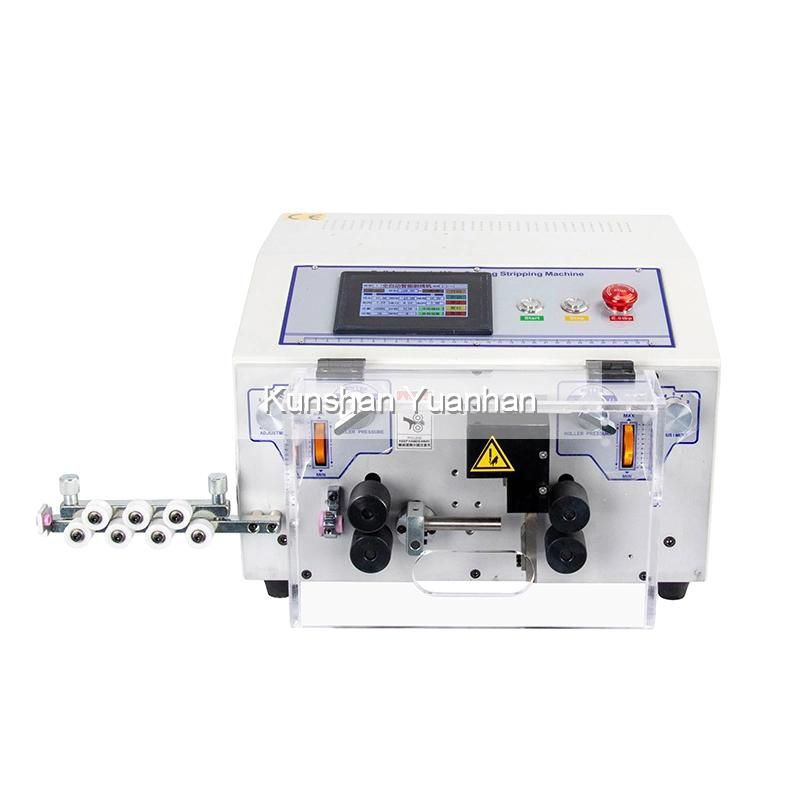

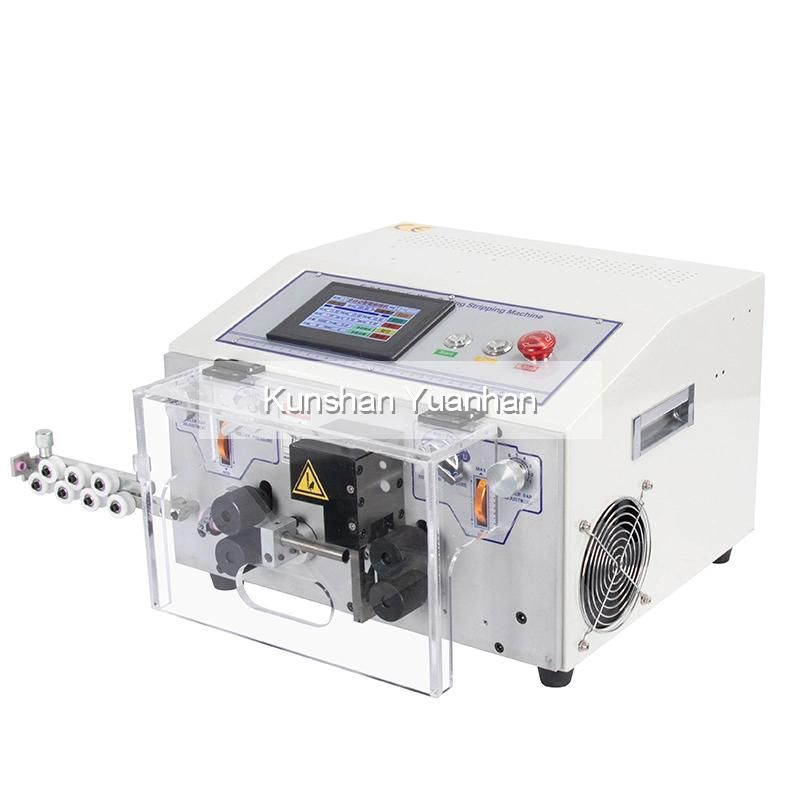

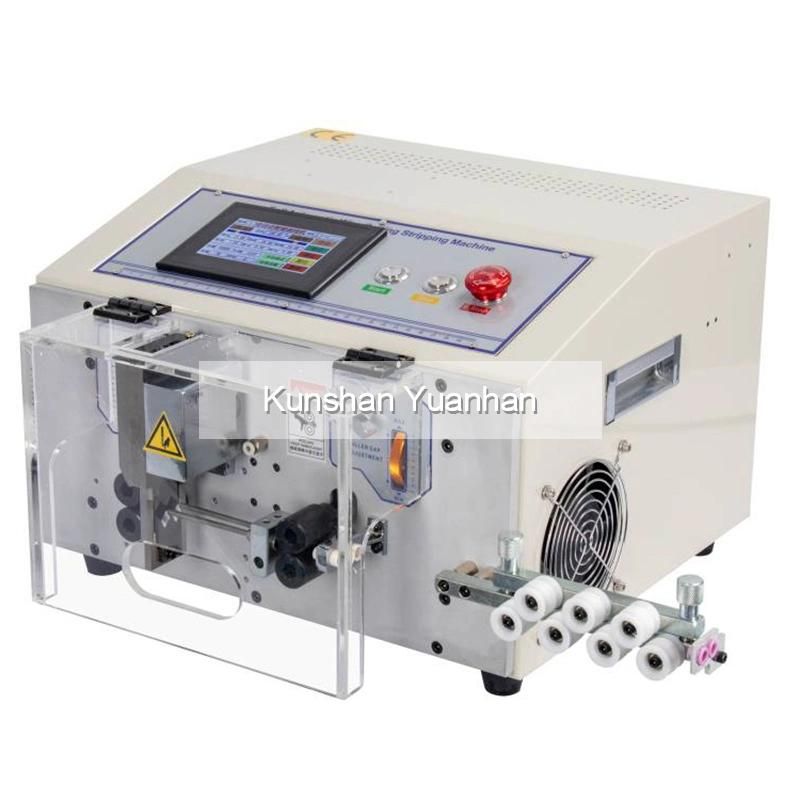

Large Cable Cutting Stripping Machine
Kunshan Yuanhan Electronic Equipment Co., Ltd.- After-sales Service:24th
- Driven Type:Electric
- Condition:New
- Certification:RoHS, ISO, CE
- Warranty:12 Months
- Automatic Grade:Automatic
Base Info
- Model NO.:YH-BMAX1
- Function:Stripping
- Model:Yh-Bmax1
- Input Voltage:AC220,50Hz
- Power:800W
- Cutting Length:1-100000mm
- Stripping Length:Head: 0-100mm Tail: 0-100mm
- Cutting Tolerances:± (0.0001XL)mm
- Middle Stripping Cutting Section:16
- Available Wire Size:0.3-25mm2
- Od of Wire:13
- Applicable Wire:PVC, Teflon, Glass Wire, Multi-Strand Steel Wire
- Tool Material:Imported High Speed Steel
- Stripping Speed:4000-5000 (L=100mmpcs,Hour)
- Drive Mode:6-Wheel Drive
- Transport Package:Double-Layer Export Carton
- Specification:920*220*400mm
- Trademark:YH
- Origin:China
- HS Code:8479819000
- Production Capacity:L=100mm, 700-1000PCS,H
Description
6-wheel drive
Features:
1. Chinese and English switching display
2. The key operation, convenient and quick, Can stay in the middle of 34mm glue,
3. Make both ends semi-stripping and twisting.
4. Easy and fast, ultra-high precision, while compatible with ordinary wire machine function, improve production efficiency.
Processing Capabilities: Cutting to length, Full strip,
Half strip, precision cut

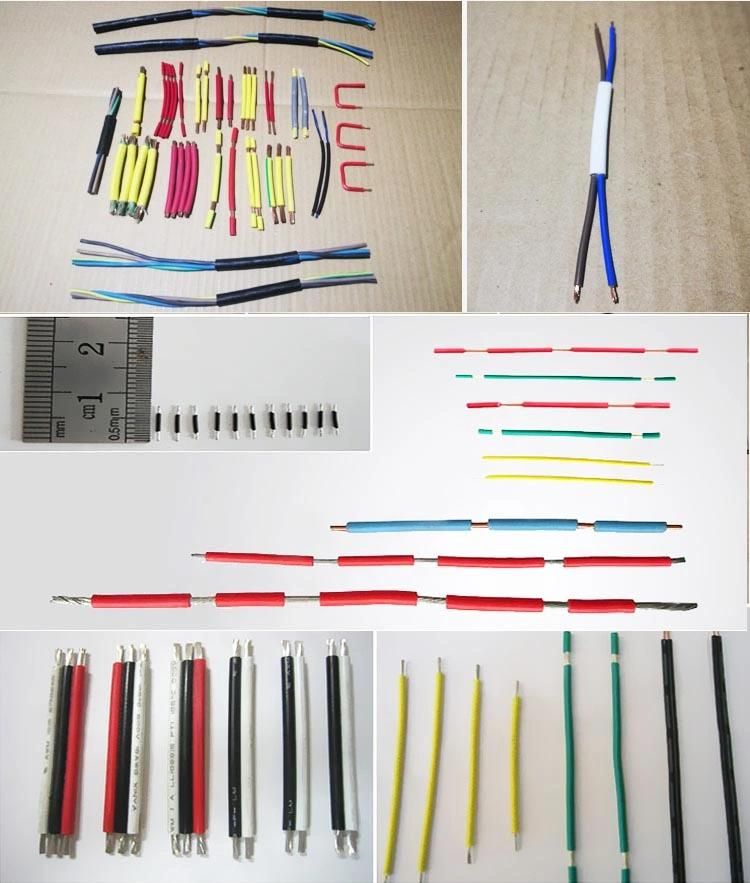

Sample: cut and strip wire automatically
For any questions please feel free to contact Phyllis lee! Many thanks!
