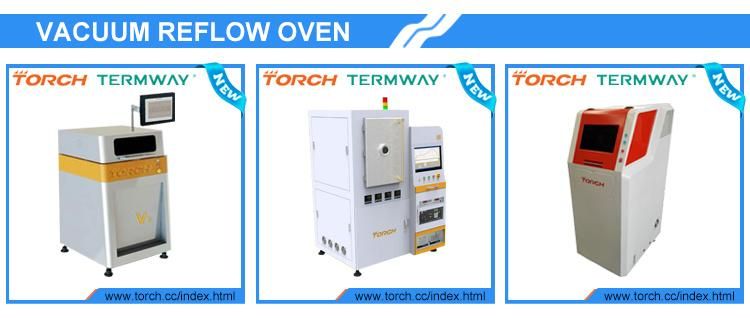

Torch 2021 Nitrogen Hydrogen Hybrid Formic Acid Vacuum Reflow Welding Low Void Ratio Vacuum Reflow Oven RS220

Termway (Beijing) Precision Technology Co., Ltd.
  • After-sales Service：1 Year
  • Condition：New
  • Certification：ISO, CE
  • Warranty：24 Months
  • Automatic Grade：Automatic
  • Installation：Vertical

Base Info

  • Model NO.：RS220
  • Furnace Height：40mm(Other Hights Is Optional)
  • Temperature Range：up to 400
  • Connector：Serial 485 Network , USB
  • Control Way：40 Segments Temperature Control + Vacuum Pressure
  • Temperature Curve：Can Store Several Curves Temperature of 40 Segment
  • Model：RS220
  • Transport Package：Plywood with Foam Inside
  • Specification：450*450*1300mm
  • Trademark：torch
  • Origin：China
  • Production Capacity：10 PCS,Month

Description

40mm(other Hights is optional) Temperature RangeUp to 400ConnectorSerial 485 network / USBControl Way 40 segments Temperature control + Vacuum Pressure ControlTemperature curve can store several curves Temperature of 40 segmentsVoltage220V 25A220V 28A220V 36ARated Power9KW11KW15KWActual Power6KW(Don't choose a vacuum pump)8KW(configurate  molecular pump)11KW(Don't choose a vacuum pump)8KW(configurate  molecular pump)10KW(configurate  molecular pump13KW(configurate  molecular pump)Dismension450*450*1300mm450*450*1300mm500*450*1300mmWight210KG240KG270KGThe maximum heating rate120/min120/min120/minThe maximum cooling rate80k/min80k/min80k/minCooling Way
Air-Cooled / Water-Cooled
Air-cooled / water-cooledAir-cooled / water-cooled
