• Model NO.：N300
• Warranty：12 Months
• Automatic Grade：Automatic
• Installation：Vertical
• Mode：Jaguar N300
• No. of Preheater：3
• Pre-Heater Passage：1450mm
• Weight：1000kg
• Total/Steady Consumption：19kw,5-7kw
• Air Supply：4-7kg,Cm2 12.5L,Min
• Heating Mode：Hot Air
• Preheater Power Supply：220V; 6kw
• Machine Control：PC+PLC or LCD+PLC or Button+PLC
• Applicable Solder Type：Lead-Free or Sn-Pb
• Solder Tank Volume：280kg
• Machine Power Supply：3 Phase 380V
• Transport Package：Plywood Box
• Specification：L3600*W1250*H1650mm
• Trademark：JAGUAR
• Origin：China
• HS Code：85151900
• Production Capacity：50sets,Month
• Package size per unit product：360.00cm * 125.00cm * 165.00cm
• Gross weight per unit product：1000.000kg

Basic Info.

Model NO. N300 Warranty 12 Months Automatic Grade Automatic Installation Vertical Mode Jaguar N300 No. of Preheater 3 Pre-Heater Passage 1450mm Weight 1000kg Total/Steady Consumption 19kw/5-7kw Air Supply 4-7kg/Cm2 12.5L/Min Heating Mode Hot Air Preheater Power Supply 220V; 6kw Machine Control PC+PLC or LCD+PLC or Button+PLC Applicable Solder Type Lead-Free or Sn-Pb Solder Tank Volume 280kg Machine Power Supply 3 Phase 380V Transport Package Plywood Box Specification L3600*W1250*H1650mm Trademark JAGUAR Origin China HS Code 85151900 Production Capacity 50sets/Month

Packaging & Delivery

Package size per unit product 360.00cm * 125.00cm * 165.00cm Gross weight per unit product 1000.000kg

Product Description

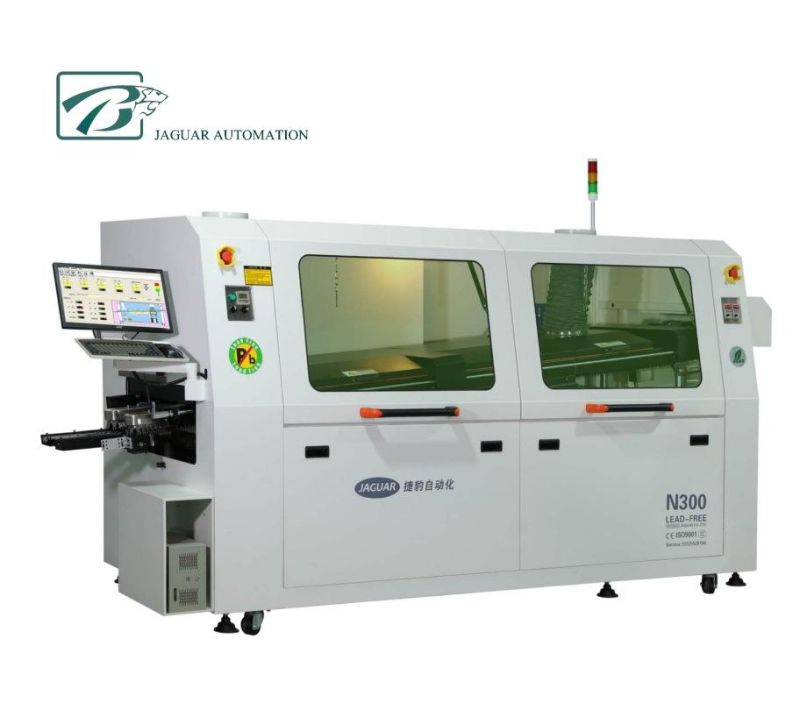

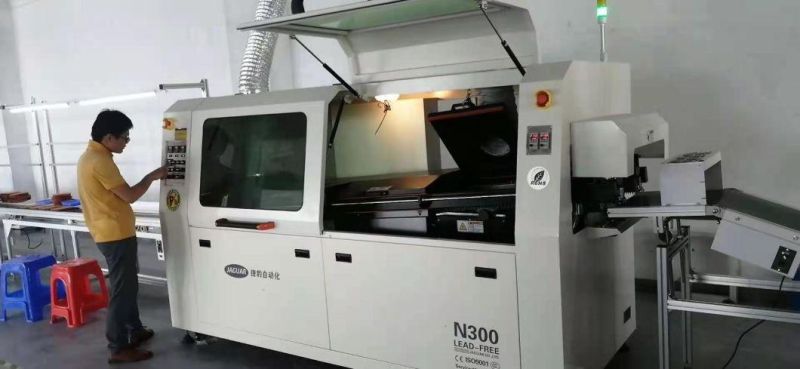

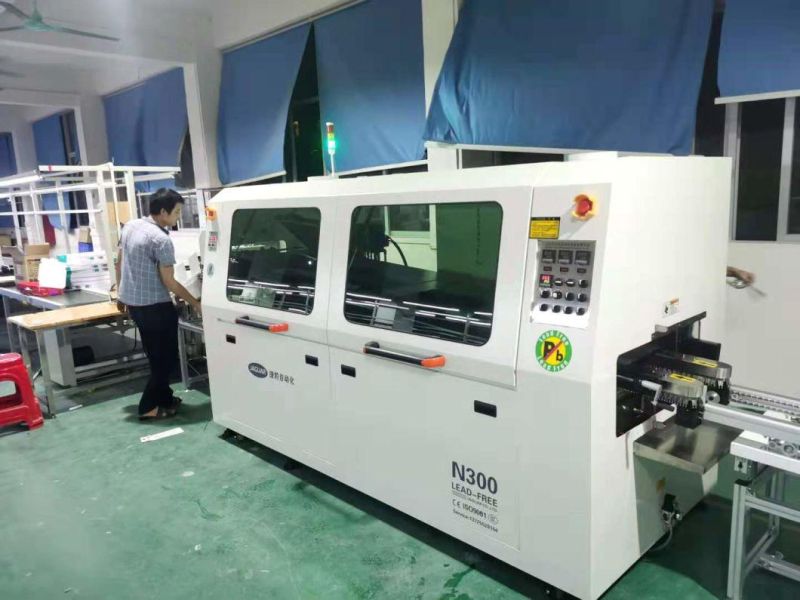

JAGUAR Practical Lead-free Wave Soldering Machine N300
Stepper motor driven spray fluxer, reliable and stable
Automatic fluxer with PCB intelligent recognition, non-stop and economic fluxer style are optional
Titanium alloyed finger, durable and deformable, with automatic finger cleaning
Hot air preheater, total preheater length: 1450mm, good temperature uniformity and high productivity
Dual wave solder tank, perfect soldering effection
Medium solder pot volume: 280kgs, 316L SS/ Titanium Alloy/ Cast Iron Enamel material are optional
Machine PC+PLC, LCD+PLC, Button+PLC control are optional
Specifications:

Model No.	JAGUAR N300
Control  Method	Button+PLC(Optional: Touch Screen or PC)
Number of Pre-heaters	3
Pre-heater Passage	1450mm
Preheating Time	About 10-15mins for Setting 150ºC
Preheat Style	Hot Air
Preheat Consumption	220V 6KW
Solder Application	Lead-free / Sn-Pb
Solder Pot Capacity	280kgs
Solder Pot Temperature	300ºC
Solder Pot Consumption	380V 9KW
Solder Temp. Control Method	PID&SSR
Wave Motor Power	250Wx2pcs 220V
Solder Melting	About 120mins for Setting 250ºC
PCB  Width	50-300mm
Conveyor Speed	0-1800mm/min
Conveyor Direction	L→R (R→L optional)
Solder Angel	4-7 º
Flux Pressure/Capacity	3-5 Bar
Flux Capacity	5.2L
Weight	1200KG
Total/Steady Sonsumption	19KW/5-7KW
Air Supply	0.5MPa
Body Size	2800(L)*1250(W)*1650(H)
Outside Dimension	3600(L)*1250(W)*1650(H)

Introduction:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators' safety.
