• Model NO.：NXN1-100,150
• Automatic：Automatic
• Certification：CCC
• Transport Package：Plywooden-Case
• Specification：customized
• Trademark：NIDE
• Origin：China
• HS Code：8468800000
• Production Capacity：100 Sets,Year

Product nameNXN1-100/150 BLDC stator needle winding machine   Stator ID   ≥25mm   Stator OD   ≤150mm   Stack height   10~100mm   suitable wire diameter   0.3-1.0mm   Power supply    220V/ 50/60Hz    Weight   600KG   Dimension   1400*900*2000mm
Application:
This machine is suitable for winding fan motor and BLDC stator.

Competitive advantages:
Variety of application, easy operation.
We have Overseas Service Center.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

Operation step:
1.  Power on the machine
2. Thread the wire
3. Put stator to the working station table
4. Adjust the tooling according to different model stator
5. Set the stator diameter in the touch screen then select the pre-set data.
6. Press "start" button.
7. Machine will automatically do winding.
8. Take out the stator

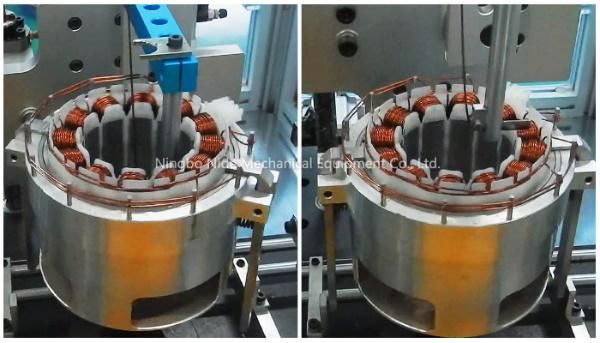

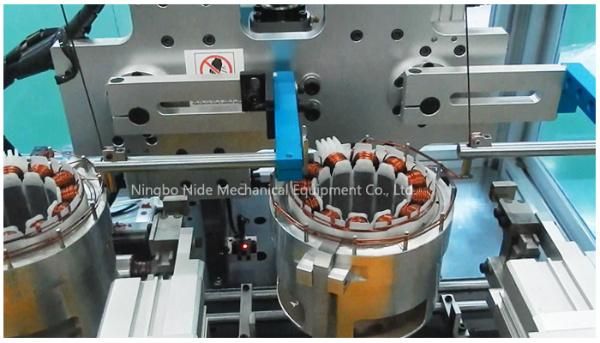

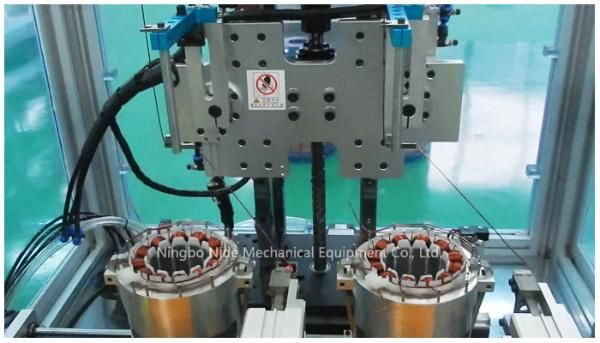

BLDC stator automatic needle winding machine winding diagram:

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

Customerized service1. Customized product design and manufacturing2. Customized tranning3.Technical suggestionsAfter-sales service1. Warranty Period: 12 month usually2. Overseas service center available

3. Engineers available to service overseas

Established in 2007, NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

NIDE has three main business divisions.
The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
