• Model NO.：NeoDen4
• Tape Reel Feeder Qty：48, on Base All Are 8mm Feeders
• Vibrating Feeder Qty：5
• Tray IC Capacity：45
• Component Size with Vision：0201~Tqfp 144
• Placement Speed：5000cph,H with Vision
• Components′ Height：5mm
• Positioning Accuracy：+,-0.02mm
• PCB Area：310X1500mm with Internal Rails
• Placement Area：140X1500mm with 1 Waffle Tray
• Transport Package：Fumigation-Free Wooden Box
• Specification：CE
• Trademark：Neoden
• Origin：Zhejiang
• HS Code：84798962
• Production Capacity：200sets,M

Overview Product Description

NeoDen4 is a flexible pick and place machine for all types of production.

With placement rates of 5,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.

Feature

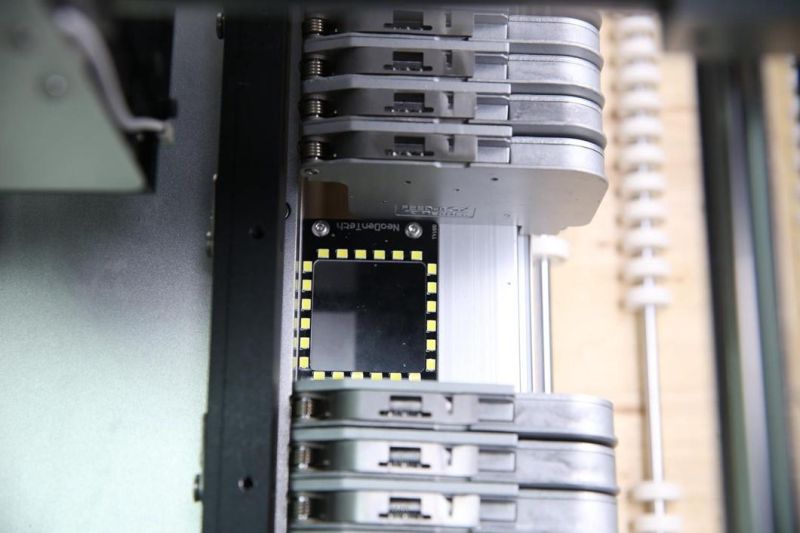

1. Dual vision system (up-looking and down-looking cameras), identify and calibrate the different components at one time, improves the accuracy of placement from 0201 to BGA;

2. Auto rails, help to achieve continuous placement and solve the problem of long LED bar, ex. 1.5m LED bar;
3. Automatic electric feeders, reduce the feeding deviation;

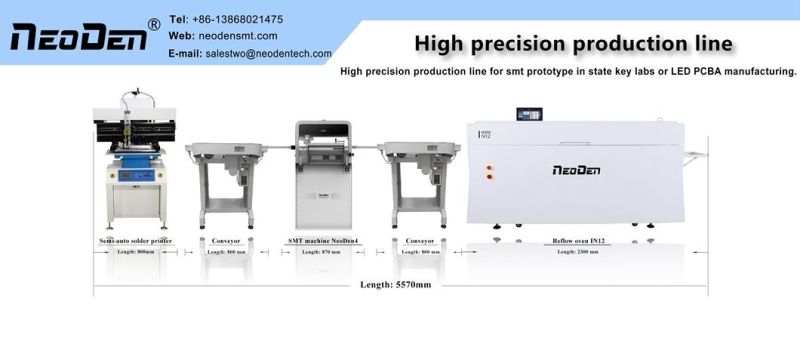

4. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving;
5. Four placement heads can pick up and calibrate components at one time.
6. The device supports remote system upgrade, NeoDen provides a life long system upgrade service for free to you;


Product Parameters



NeoDen4Machine styleSingle gantry with 4 headsAlignmentStage VisionPlacement RateVision on5, 000CPHVision off10, 000CPH(Optimum)Feeder CapacityTape feeder: 48(all 8mm)Vibration feeder: 5Tray feeder: 45Component RangeSmallest Size0201Largest Size32X32mm (Pitch 0.5mm)Max Height5mmRotation±180°Placement Accuracy±0.02mmX-Y Repeatability±0.02mmBoard Dimension(mm)Maximum310 X 1, 500mmMinimum310 X 400mm(Option)140 X1, 500mm(Option)Main ControlGUIElectricity Supply110V/220VPower180WExternal Dimensions(mm)Machine size870(L)X680(W)X480(H)Packing size940(L)X740(W)X600(H)WeightNet Weight60kgsGross weight80kgs
Accessories
 1Vibration feeder12Nozzle638G Flash Drive14Power Cord(3m)15Rail extension parts16Double Sided Adhesive Tape27Allen wrench Set58Tool Box19Reel holder stand1

Feedback and Review


Delivery and Lead time
1) Payment method: PayPal
2) The default delivery method is via DHL (door to door), unless specific requirement from customer.
3) Delivery time: 7 - 10 working days.

Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply.
NeoDen will provide online Q/A and troubleshooting support and technical advice service.

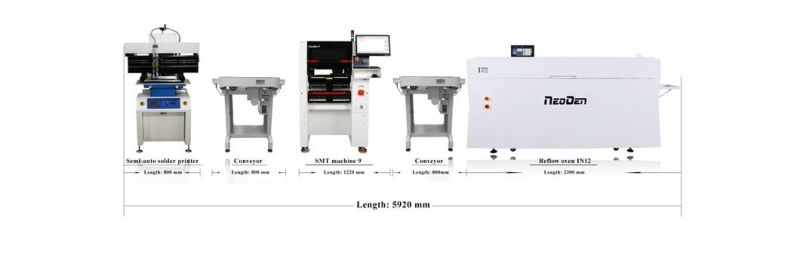

6-head pick and place machine assembly line:

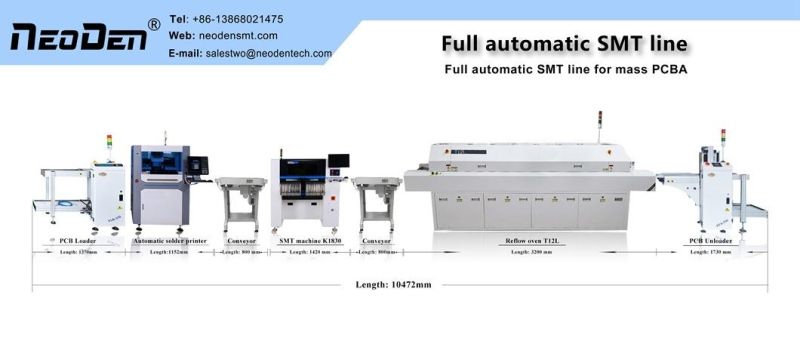

8-head pick and place machine assembly line:
