• Model NO.：comflex
• Production Name：Cable Extruder
• Material：PVC, PE, HDPE, MDPE, TPU
• Screw L/D Ratio：25:1
• Screw Diameter：45-150mm
• Traction Method：Pneumatic Flat Belt or No Flat Belt
• Power Supply：Three Phase, 240,480V,510 60Hz with Neutral Wire
• Extrution Output：PE, 600kg Per Hour TPU, 20rpm
• Before The Sheath Core Diameter：DN40-190
• After The Cable Insulation Diameter：DN50-200
• Length of The Water Tank,：Single Layer, 4+20meters
• Center Height：1000mm
• Temperature：0 to 46
• Humidity：0-95% Rh
• Speed of Screw：68rpm
• Max. Extrusion Output：600kg,H, for MDPE
• Transport Package：Standard Seaworthy Package
• Specification：20000*2500*2200mm
• Trademark：HLT
• Origin：China, Jiangsu
• HS Code：8477900000
• Production Capacity：5000set,Year

Basic Info.

Model NO. comflex Production Name Cable Extruder Material PVC, PE, HDPE, MDPE, TPU Screw L/D Ratio 25:1 Screw Diameter 45-150mm Traction Method Pneumatic Flat Belt or No Flat Belt Power Supply Three Phase, 240/480V/510 60Hz with Neutral Wire Extrution Output PE, 600kg Per Hour TPU, 20rpm Before The Sheath Core Diameter DN40-190 After The Cable Insulation Diameter DN50-200 Length of The Water Tank, Single Layer, 4+20meters Center Height 1000mm Temperature 0 to 46 Humidity 0-95% Rh Speed of Screw 68rpm Max. Extrusion Output 600kg/H, for MDPE Transport Package Standard Seaworthy Package Specification 20000*2500*2200mm Trademark HLT Origin China, Jiangsu HS Code 8477900000 Production Capacity 5000set/Year

Product Description

150 High-Quality Electric Wire/ Cable Making Machine, Cable Sheathing/Insulated Extruder

Application

The unit comfortable soft PVC,such as poly(PVC by hot press method to be extruded insulation wire core)

The production line to the requirement of working environment
Temperature:0-45 degrees
Power supply:three-phase 380 plus or minus 10%,50 hz with neutral wire.No impulse voltage,interference.

Technical Parameters

The screw diameter	150mm
The screw length to diameter ratio	25:01:00
After sheath outside diameter	φ35~140mm
Maximum traction	2500kg
The production line speed	>40m/min
Steel specification	PN1600-PN3150
The line plate specification	PN1600-PN3150
Equipment center high	1000mm
Production line direction	In the face of the nose left put right

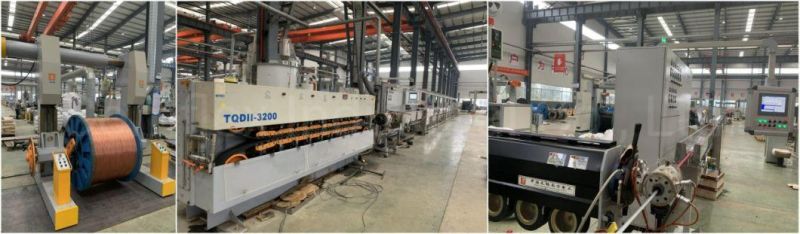

Equipment Composition

LF1600/3150 gantry rail walking type of passive motorized	1 sets of
TQD-2000kg crawler type pneumatic tractor traction before	1 sets of
SJ-150X25 plastic extruder	1 sets of
Automaic drying feeding device	1 sets of
φ140 square sheathed the nose	1 only
24 m stainless steel water trough(including 4 meters mobile sink)	1 sets of
Cable blow dry device	1 set
TQD-2500kg crawler type pneumatic tractor traction after	1 set
LSP1600 /walk type 3150 gantry rail line frame	1 sets of
Electrical synchronization control system	1 sets of

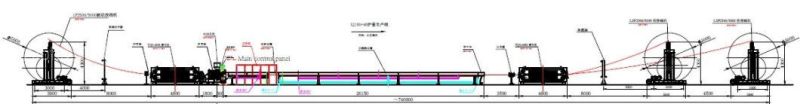

Raw material (PP,PE,PA,PET)-----Pay-off ----Caterpillar--- Extruder head---Water cooling---Drying----Caterpillar ---winder/take -up machine

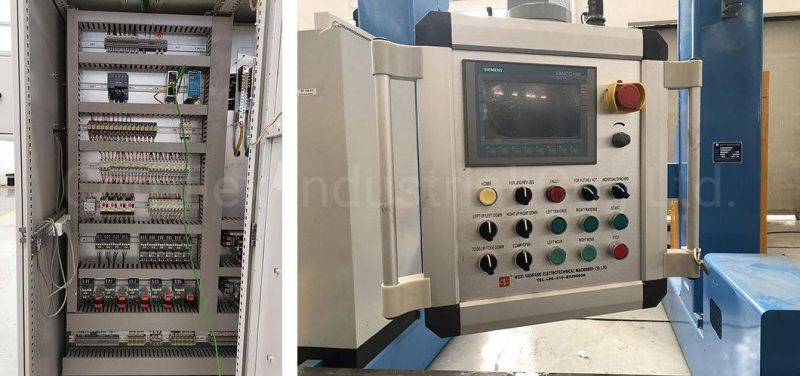

Electrical Part

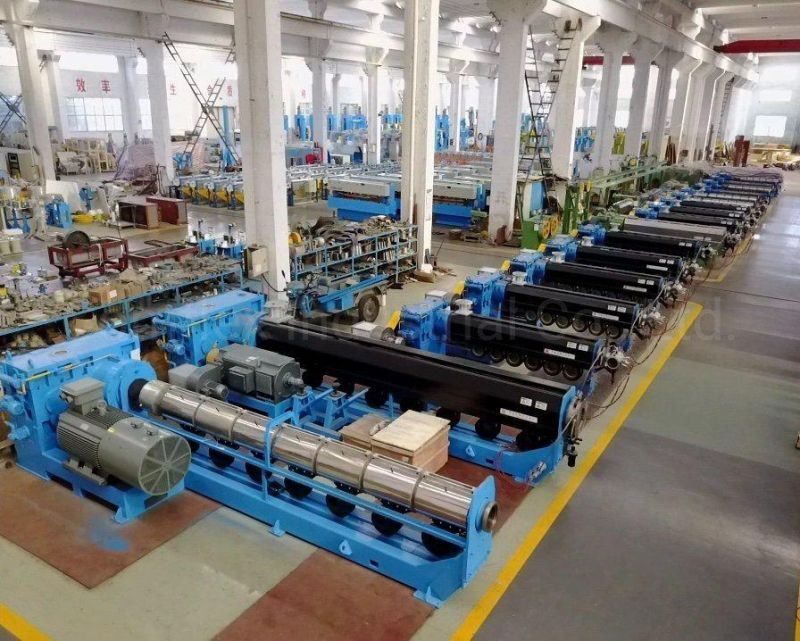

 Company
We are a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt puller LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.

Our company has a technical administration team who engages wire and cable equipment industrial more than twenty years, as well as an experienced engineer and skilled workers, our honest business reputation and good sales achievement, win the trust from our domestic and overseas customers, the products are exported to United States, France, Spain, Portugal, New Zealand, Brazil, Mexico, Chile, South Africa, Zambia, Egypt, South Korea, Singapore, Indonesia, Thailand, Iran, etc.

After-sales Service


FAQ
− Q: Are you the manufacturer or trading company?

     A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

− Q: What is your company's main production?

     A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?

     A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

     A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
     A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

         We have an experienced team of skilled workers and engineers.

         We can support overseas training engineers.

         We can customize the design, to accept the customer's sample design.

         We can provide customers with after-sales service.

Enable us to send you an accurate machine offer. pls kindly send us the following information:
1. How many kgs/meters to extrusion per hour?
2. Reel/Flange Diameter, we need to quote correct take-up and pay off machine

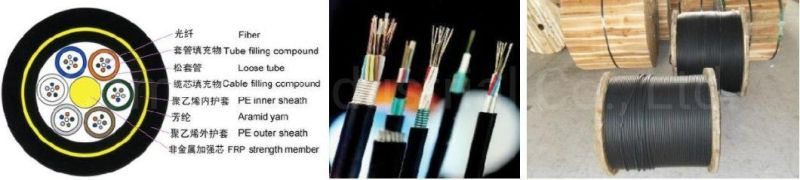

3.Could you please send us your cable structure?
4. Extrusion material of  cable sheath and Cable sheath thickness
5.Cable size
6.Cable pulling speed
