• Model NO.：GWCM-2001
• Supply Voltage：AC 220V(50Hz)
• Mechanical Dimensions：420mm*320mm*420mm
• Weight：30kg
• Certification：RoHS, CE, ISO
• Wire Size Range：0.03-0.8
• Winder Width：0-110
• Key Word：Voice Widning Machine
• Machine Type：Semi-Auto Winding Machine
• Wire Type：Copper Wire
• Key Word 1：High Speed Winding Machine
• Key Words：Speaker Voice Winding Machine
• Transport Package：Export Standard Carton or Customize Strong Pallet
• Specification：CE
• Trademark：Grewin
• Origin：China
• HS Code：85043190
• Production Capacity：100PCS

Basic Info.

Model NO. GWCM-2001 Supply Voltage AC 220V(50Hz) Mechanical Dimensions 420mm*320mm*420mm Weight 30kg Certification RoHS, CE, ISO Wire Size Range 0.03-0.8 Winder Width 0-110 Key Word Voice Widning Machine Machine Type Semi-Auto Winding Machine Wire Type Copper Wire Key Word 1 High Speed Winding Machine Key Words Speaker Voice Winding Machine Transport Package Export Standard Carton or Customize Strong Pallet Specification CE Trademark Grewin Origin China HS Code 85043190 Production Capacity 100PCS

Product Description

Product Description:

Automatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for the insulation tape wrapping machine on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.

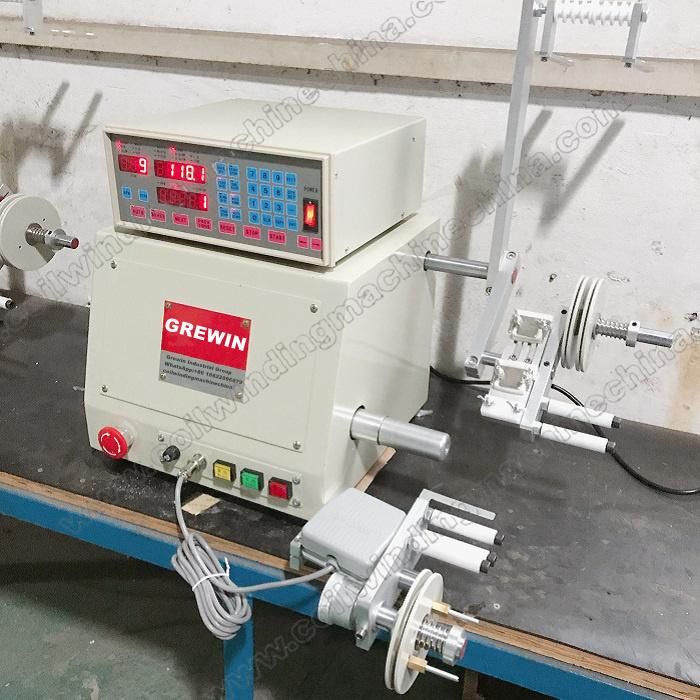

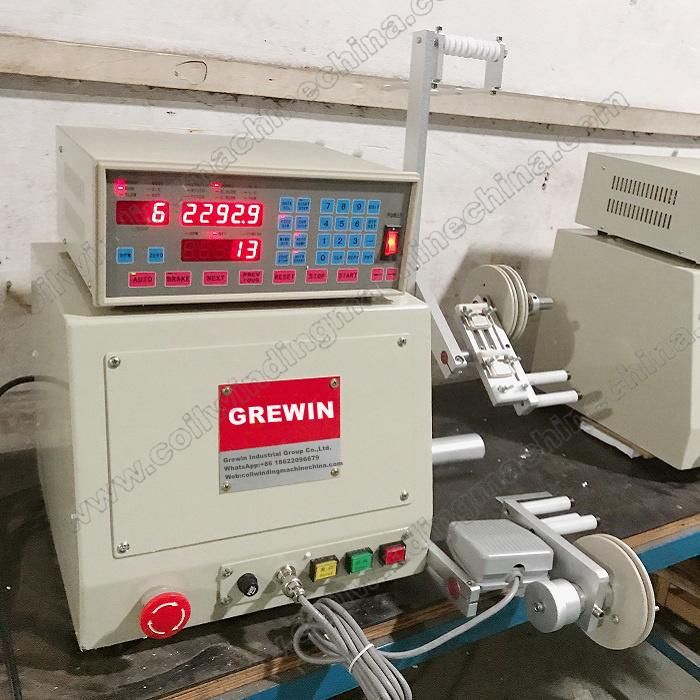

SpecificationGWCM-2001 Single Spindle Coil Winding Machine

Wire size range	0.03-0.8mm
Winder width	0-110mm
No. Of spindle	1spindle
Main motor	DC Brushless 400W
Winding Motor	Stepping motor
Machine Max speed	6000RPM
Memory groups	999
Power	AC220V/50HZ
Machine weight	30kg
Machine size	420mm*320mm*420mm



How to select the best suited automatic toroid taping machine for your toroid coil?

Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.

Packaging Information:
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.) Packaging: Packaging material: Carton/Wooden case with foam inside.


Why Choose Us1.Environmental protection, low noise and high efficiency;
2.The storage capacity can be super large.
3.You can choose different row direction, winding angle and sectional angle.
4.Photoelectric induction switch technology has high accuracy and accurate number of rings.
5.Stepper motor wiring, spacing can be accurately controlled;
6.Products that can be tetragonal.

Packing & Shipping :
General package(Paper carton or plastic bag): For small goods, Package it with form and pack paper to guarantee unbroken during the transport.
Wooden case package: For larger scale goods as machine equipment etc, we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock. We will inform you the delivery note. You just need to wait for phone call, then pick
up the goods at the nearest logistic station .(Please let me know in advance if you want get the goods at home.)
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM

1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Service tenet:
Provide you the best service with "fast + satisfactory + safe".
Warranty period:
12 months long after the user received the product.
Warranty items:
Only for abnormal breakdown caused by the machine design or manufacture defect,free repair and accessory will be provided.
Technology service ability:
All service engineers with many years experience are gotten special technology training, who can deal with various breakdown problem.
Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
Service after sell:
In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.
Use instruction:
Apply for the right complete size of product, otherwise, the wrong dimensions will affect the use effect.
Do ensure using the product accord to the use instruction completely.Do not exceed the scope of application of the products.
Maintain the product after use,Damp proof, rust proof, leak proof, explosion-proof, regular maintenance and inspection should be taken care. All done help to extend the use period.
Company Information and Profile
We-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.
