Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)

SanShine Electronics (Xiamen) Technology Co., Ltd.
  • After-sales Service：Online Suppord
  • Condition：New
  • Certification：High Precision and Steady
  • Warranty：12 Months
  • Automatic Grade：Automatic
  • Installation：Desktop

Base Info

  • Model NO.：SS-RT01
  • Power Source：AC 220 , 110 V ; 50,60 Hz
  • Traverse：Max 76 mm (Stepping Motor)
  • Inner Bath Material：Lead Free Titanium
  • Inner Bath Dimension：L300 *W100 *H 60 mm
  • Dimension：L600 *W600 *H 750 mm
  • Transport Package：Customs approved wood box
  • Specification：SS-RT01
  • Trademark：SanShine
  • Origin：China
  • Production Capacity：6000sets,year

Description

Overview Detailed Photos

Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)

Automatic Soldering Machine Suitable to Solder Coils at Angle (SS-RT01)

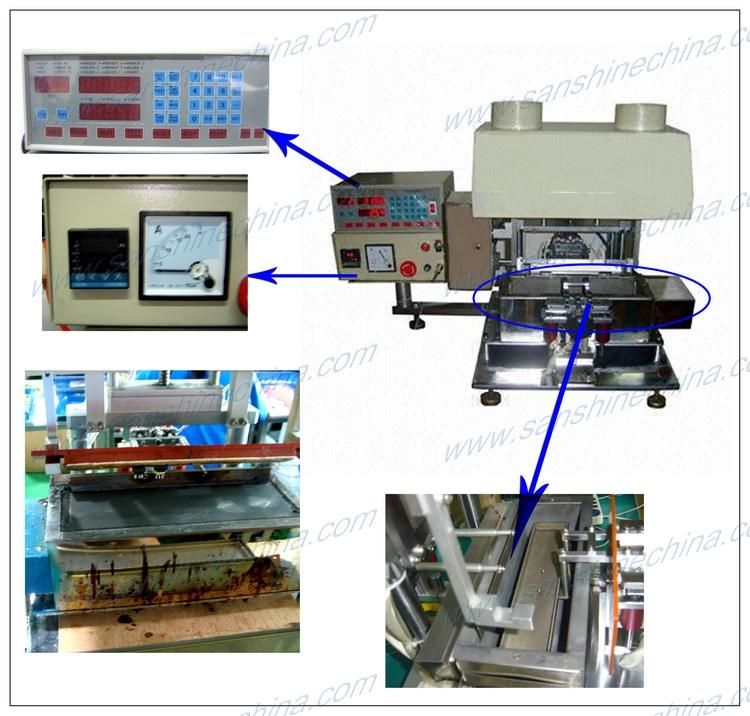

CNC controller of  the SS-RT01 Product Description



The SS-RT01 Multi-functional automatic soldering / tinning / dip machine adopts precise digital tinning controller and servo motors. It is best for soldering SMT components and Coils(SMT / SMD transformers inductors) which require soldering(tinning) at an angle like choke coils.
Feature :
1. Multi-function and multi-purpose automatic soldering machine
2. Most suitable for soldering SMD components or for coils which require soldering at an angle like chokes.
3. SS-RT01Power sourceAC 220 / 110 V   ;   50/60 Hz  Power consuming2KWAir source5kg /c  m2TraverseMAX 76 mm (stepping motor)Inner bath materialLead free titaniumInner bath DimensionL300 *W100 *H 60 mmDimensionL600 *W600 *H 750 mmWeight40 Kgs Our Services
