• Model NO.：NeoDen3V-standard
• Qty of Placement Head：2
• Feeders：24
• Max Mounting Capability：5000cph
• Ics：10PCS
• Max Applicable Height：5mm
• Max Mounting Speed：2m,S
• Tape Width：8,12,16,24mm
• Vacuum Pump Qty：3PCS
• Transport Package：Funigation-Free Wooden Packing
• Specification：CE
• Trademark：Neoden
• Origin：Zhejiang, Cn
• HS Code：84798962
• Production Capacity：200sets,M

Overview Product Description

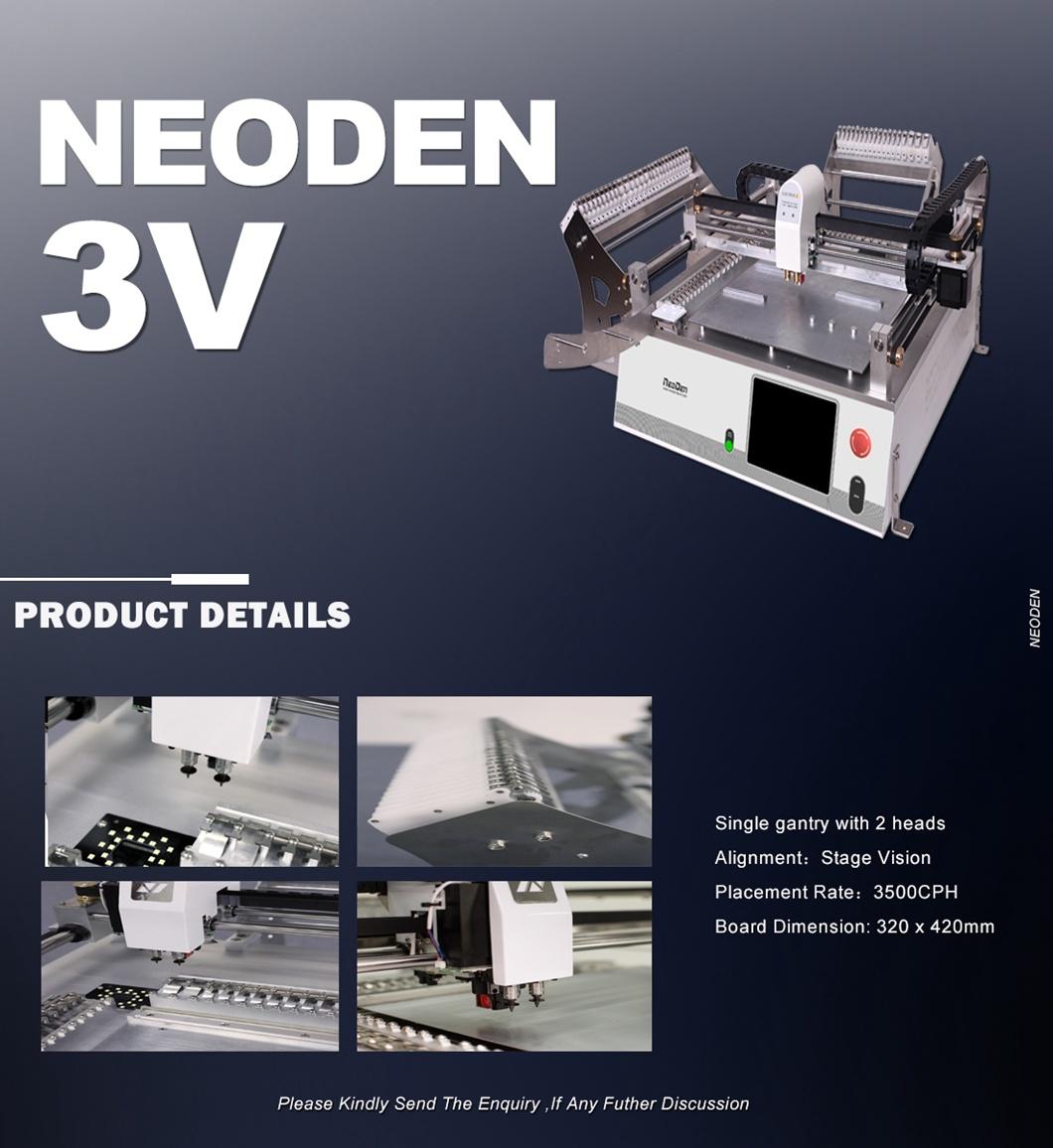

NeoDen3V-std is an upgraded version of TM245P series.

It features dual head, 24 feeder slots, vision system and flexible positioning system, which is suitable for prototyping, small-medium batch production with stable performance and affordable price.

 Feature

1. Full Vision 2 Head System

Dual high-precision placement heads with ±180° rotation could satisfy the need of wide range components.

2. Patented Automatic Peel-box
Patented electromagnetic actuators, you don't need to get rid of the wasted nylon film manually, which saves you more time and effort.

3. Flexible PCB positioning
By using PCB support bars and pins, wherever you want to put the PCB and whatever the shape of your PCB is, all can be handled well

4. Integrated Controller
More stable performance and easier to do maintenance.

Accessories
1)Pick and Place Machine NeoDen3V-Std: 1
2)PCB support bar: 4units
3)PCB support pin: 8units
4)Electromagnet: 1pack
5)Needle: 2sets
6)Allen wren set: 1
7)Tool box: 1unit
8)Cleaning needle: 3units
9)Power cord: 1unit
10)Double side adhesive tape: 1set
11) Silicon tube: 0.5m
12)Fuse(1A): 2units
13)8G flash drive: 1unit
14)Reel holder stand:1set
15)Nozzle rubber 0.3mm: 5units
16)Nozzle rubber 1.0mm: 5units
17) Vibration feeder: 1unitProduct Parameters



Feeder CapacityTape feeder:24(all 8mm)Vibration feeder: 0~5Tray feeder: 5~10
(Customization supported)Board DimensionMaximum:320*420mmComponent RangeSmallest components:0402Largest components:TQFP144Max height:5mmNumbers Of Pumps3Placement Accuracy±0.02mmOperate SystemWindowsXP-NOVAPower160~200WElectricity Supply110V/220VMachine Size820(L)*650(W)*410(H)mmPacking Size1001(L)*790(W)*590(H)mmNet Weight55kgGross Weight80Kg

Warranty:
The complete machine has a warranty period of ONE year from the time  of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and trouble shooting support and technical advice service.

Payment&Warranty
1) Payment method: PayPal
2) The default delivery method is via DHL (door to door), unless specific requirement from customer.
3) Delivery time:  10-15 working days.


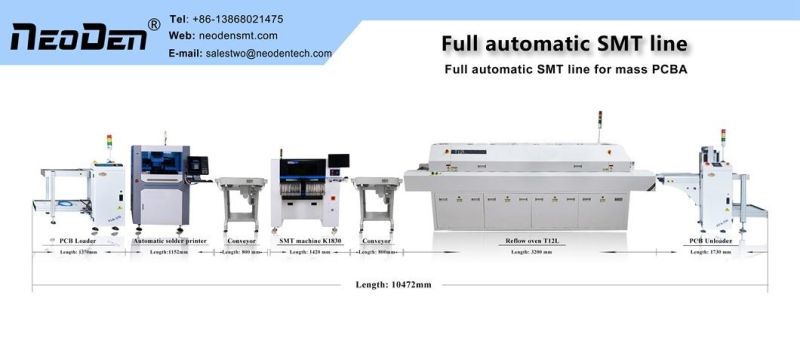

We could also supply customer one whole SMT producing line :

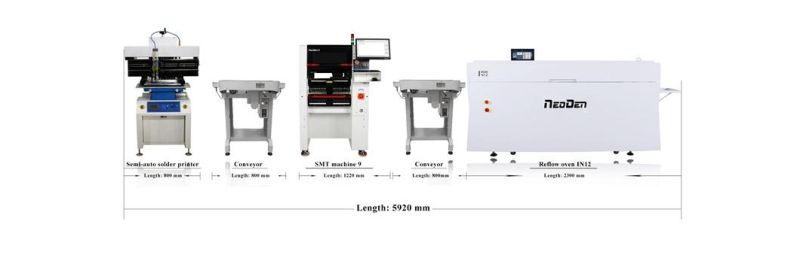

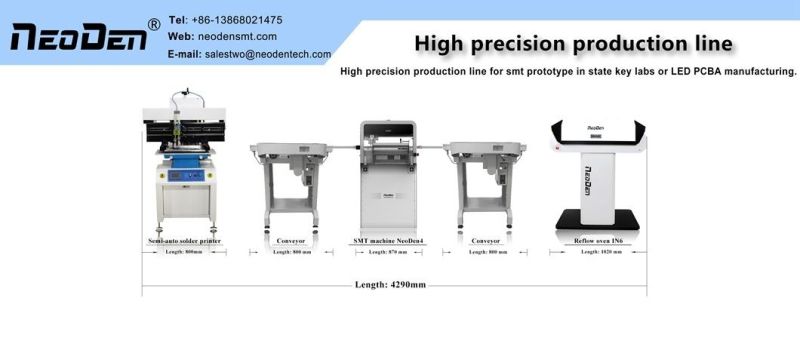

Solder printer → desktop pick and palce machine → reflow solder

4- head pick and place assembly line:

6- head pick and place assembly line:

8- head pick and place assembly line:
