Cantilever Take-up Machine, Cable Making Machine
Alpha Technical Industrial Co., Ltd.- After-sales Service：Avaliable
- Automatic Grade：Automatic
- Driven Type：Electric
- Warranty：12 Months
- Apply Bobbin Size：800-1700mm
- Bobbin Width：500-1200mm
Base Info
- Adaptor Hole Diameter：75 150mm
- Applied Cable Diameter Range：10~60mm
- Bobbin Weight：4t
- Line Speed：26.52rpm
- Take-up Torque：Max 4600 N.M
- Main Parts Bearing：NSK
- Power Supply：3 Phase 415
- Lifting Mode：Electro-Hydraulic Lifting Mode
- Transport Package：Wooden Box
- Specification：customized
- Trademark：Alpha
- Origin：China
- HS Code：8479819000
- Production Capacity：100sets Per Year
Description

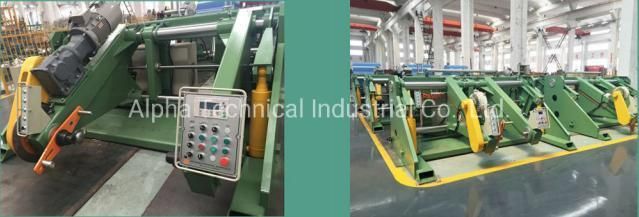

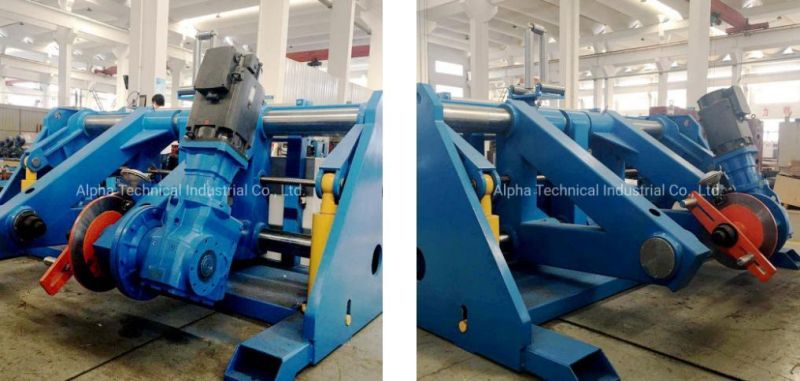

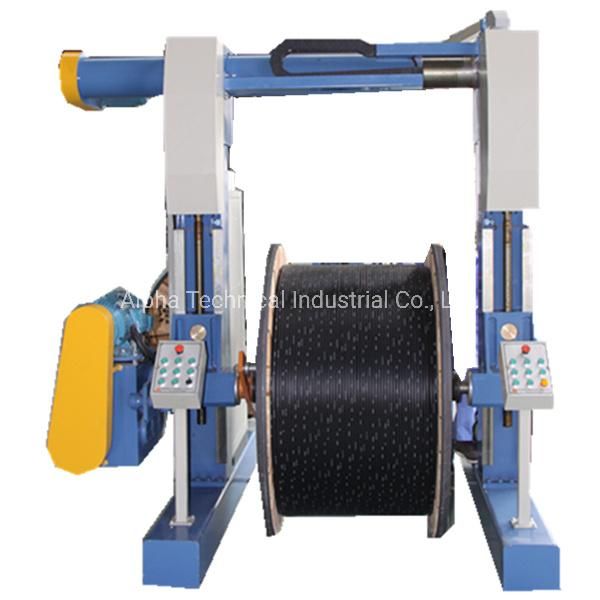

1700 Hydraulic Cantilever Type Take-up with traverseThe machine adopts double sleeve structure to enhance the bearing capacity of the equipment, Cantilever hydraulic lifting, easy to operate. Using ball screw to traverse wire, suitable for different wire diameter with high precision.
Uses: Stranding extruding and irradiated lines. Machine Details
- Lifting mode: adopt electro-hydraulic lifting mode
- Bobbin Clamping mode: 400W deceleration motor clamping
- Take-up model: 15kw 1500rpm Siemens AC servo motor drive, Speed and tension control can be achieved
- Take-up torque: Max ~4600 N.m
- The wire traversing adopts AC servo motor drive, ball screw traversing wire, pitch: 0 ~ 40mm, and sychronization with Take-up.
- The device contains pneumatic brakes that can be used to brake rapidly during downtime.
- Siemens S7-1200 PLC control, 7-inch touch screen control wiring traversig, wiring pitch can be set on the touch screen
- Main parts bearing use NSK

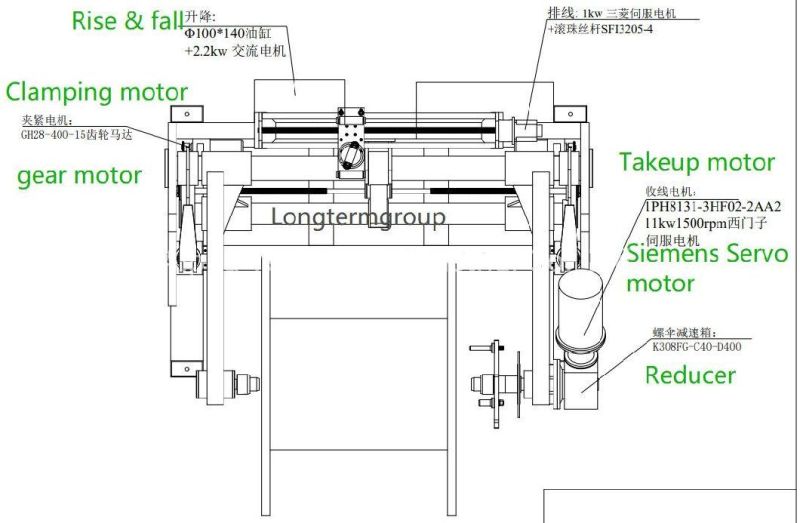

Technical drawing of the machine
Related Machine

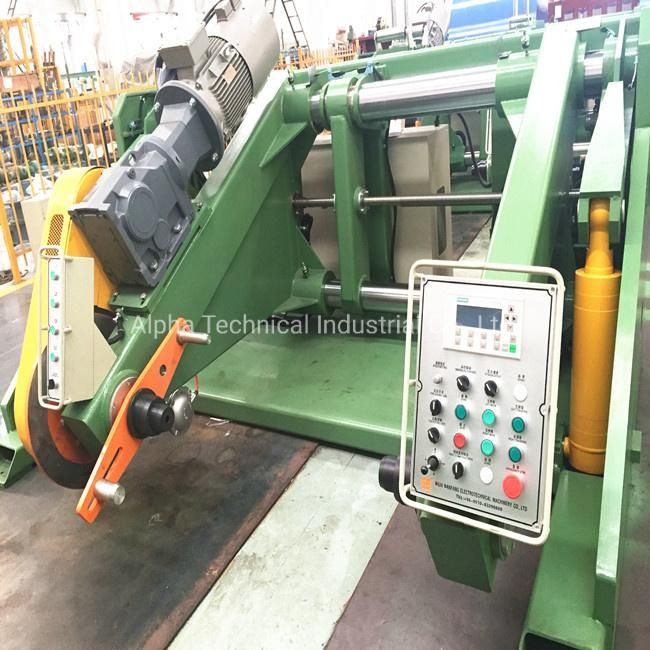

Gantry Rail Walk Type Pay-off And Take-up1.The machine frame adopts high quality rectangular steel tube and steel plate bending welded together. Beam with two large beams connected by structure, perfect appearacne, good rigidity, high strength.
2. Adopt the way of walking beam, the whole cable tray for wiring, implementation of pay-off and take-up.
3. The equipment adopts AC variable frequency motor speed cable, high precision, uniform wiring.
4. PLC programmable controller can be integrated with all kinds of host.
5. Take-up main motor
- Take up main motor adopts DC motor, controller is European series products

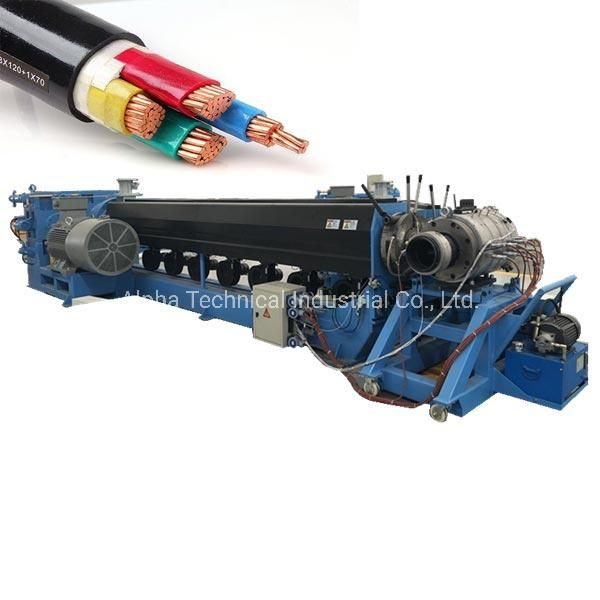

- Take up main motor adopts frequency conversion, controller for SiemensCable Making Extruder
1.It is Suitable for optical cable outer sheath and core strengthening comprehensive production, can also be used for inner protection layer production
2.PE inner sheath,aluminum-plastic compound belt and PE inner sheath.
3.PE outer sheath,aluminum-plastic compound belt,PE composite outer sheath,steel- plastic compound belt,PE composite outer sheath.
4.Parallel double steel wire tube bundling type optic-fibet cable.

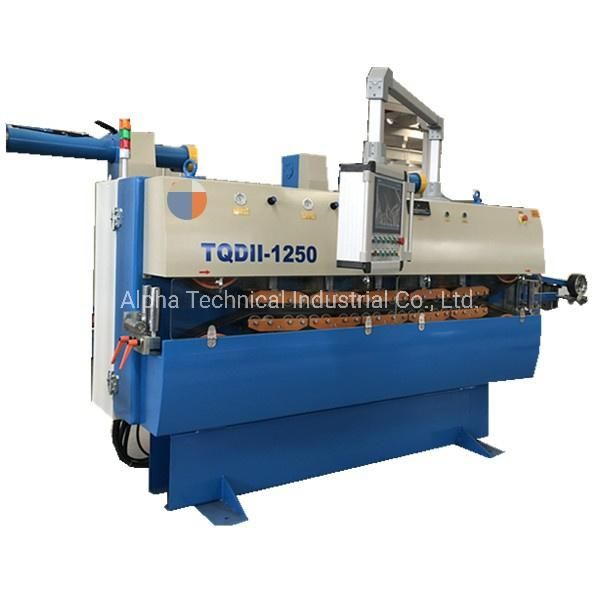

Cable wire steel wire Puller with Speed regulative machine1. The whole frame is made of a high-quality steel plate after bending and splicing, and the appearance is novel.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of Z4 DC motor or variable-frequency motor for users to choose.
4. With the electronic meter, it can display the line speed and meter length in time.
5. It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.

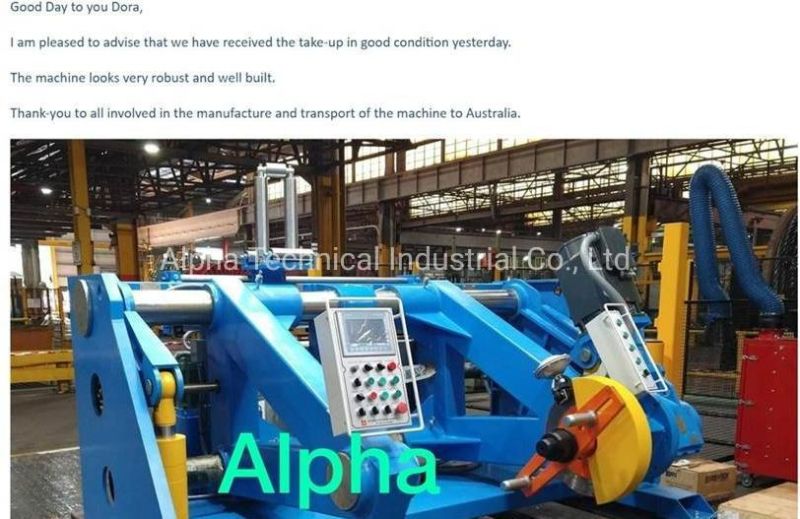

Customer comments
After Sales Service

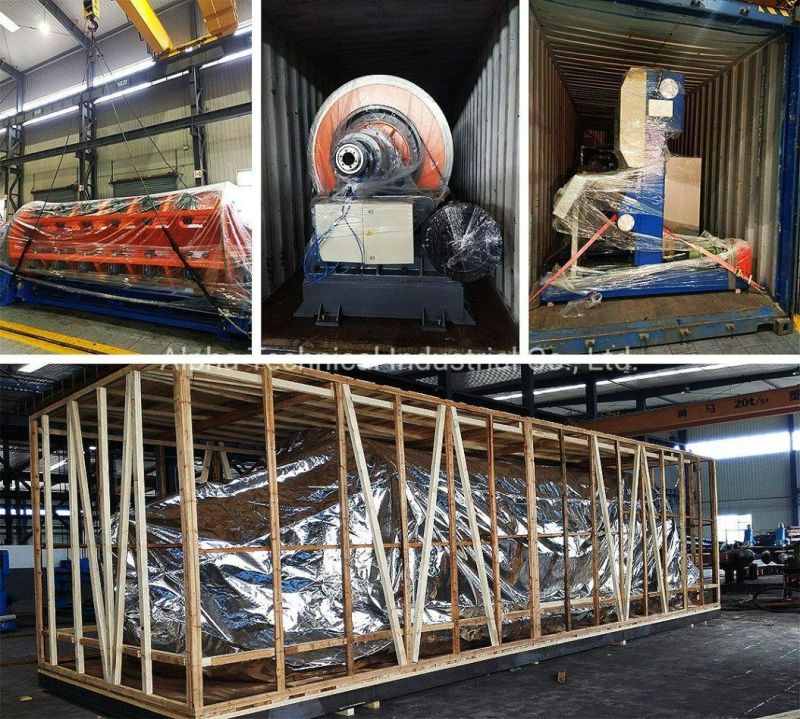

Packaging & Shipping
