• Model NO.：SS862
• Spread Width：100mm (Max. )
• Coil Diameter：100mm (Max. )
• Demoulding：Pull Core
• Condition：New
• Certification：ISO, Internal
• Automatic Grade：Automatic
• Installation：Desktop
• Driven Type：Electric
• Mould Life：300,000-1,000,000 Shots
• Function：High Precision and Steady
• Transport Package：Customs Approved Wood Box
• Specification：SanShine
• Trademark：SanShine
• Origin：China
• HS Code：8479811000
• Production Capacity：6000sets,Year

Overview Detailed Photos

SS862 Obverse Two Spindle Automatic Coil Winding Machine
Product Description


SS-86x Series digital coil winding machine are digital programmable High-speed coil winding machine, there are four models: One spindle, two Spindles, three spindles and four spindles. It's the highest efficiency equipment.

Feature:
1. Microprocessor design, easy for program-setting.
2. Stepping motor driven by constant-current power supply, High spreading speed precise winding.
3. "Start Point" could set by key panel or with teachable function. Display Will show the position of spreading head while setting.

4. Wire spreading by nozzle type spreading head.
5. Wire passing through ceramic rollers prevent enamel from high temperature.
6. Multiple spindles winding synchronal for highest efficiency.
7. Foot-switch connection for better efficiency.
8. Winding parameters and options can be set independently for each step.
9. Memory capacity accommodates 999 steps of parameters with off-power memory retention.

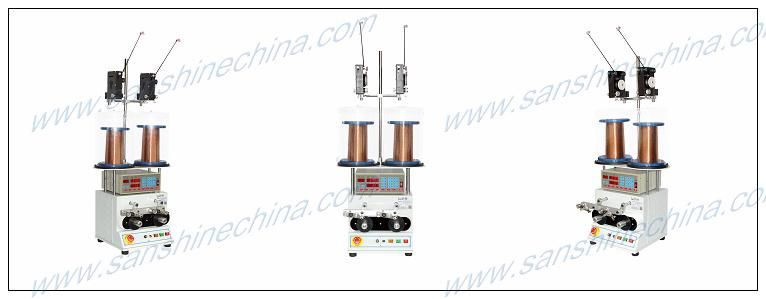

The picture of SS86X winding machine
 0.02~ 0.8mm (Depends on Tension & Nozzle)
 Spread pitch
 0~ 9.999mm
 Spread width
 100mm (Max. )
 Coil diameter
 100mm (Max. )
 Main motor
 Brushless Motor
 Spread motor
 Stepping motor
 Max. speed
 6000rpm
 Memory
 999 Sequences
 Power source
 AC220V + 10%, 50/60 Hz
 Dimension (CM)
 45x67x100
 50x67x100
 75x67x100
 100x67x100
 Net weight(KG)
 45
 50
 55
 60
