FEP/PFA/ETFE Wire & Cable Extruding Machines
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Machine Name：FEP,PFA,ETFE Wire & Cable Extruder Machines
Base Info
- Model NO.：XJ-20mm,25mm,30mm,40mm
- Outlet Wire Dia.：0.2mm-2.5mm
- Screw L/D Ratio：28:1
- Line Speed：Max.180m,Min
- Precision：High Precision
- Demoulding：Automatic
- Heating System：Electric
- Automatic Grade：Automatic
- Customized：Customized
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
U-type single-layer water troughAccumulate length 0-100m 0-100m 0-100m 0-100m Capstan power 1kw Servo motor 2kw Servo motor 2kw Servo motor 2kw Servo motor Max speed 150m/min 150m/min 180m/min 180m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up power 3HP 3HP 4HP 3HP Take-up bobbin Φ100-200mm Φ200-300mm Φ200-300mm Φ300-400mm Size( L*W*H) 8000*1200*2100 8000*1400*2100 9000*1400*2100 12000*1800*2100 Total Weight 3.0 T 3.5T 4T 5.5T
1) Motor: Siemens
2) Driver: Yaskawa or Inovance
3) Bearing: NSK, NACHI, ASCHI
4) Electric components: Omron
5) PLC controller: Siemens
5. Safety performances:
1) Switch-off at overpressure
2) Disabling signal at under temperatures
3) Stop at over temperature
3) Motor power limit
4) Emergency stop
5) Monitoring of tolerances and alarms
6) Monitoring of sensors

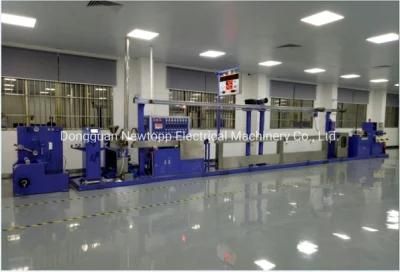

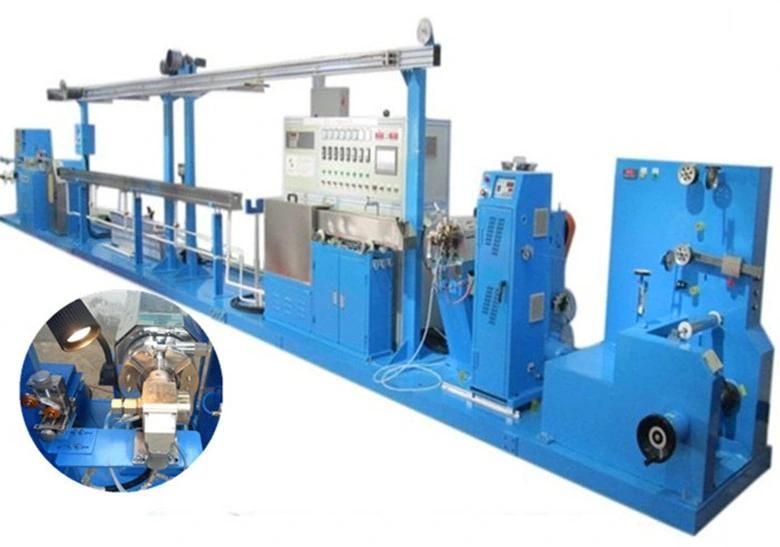

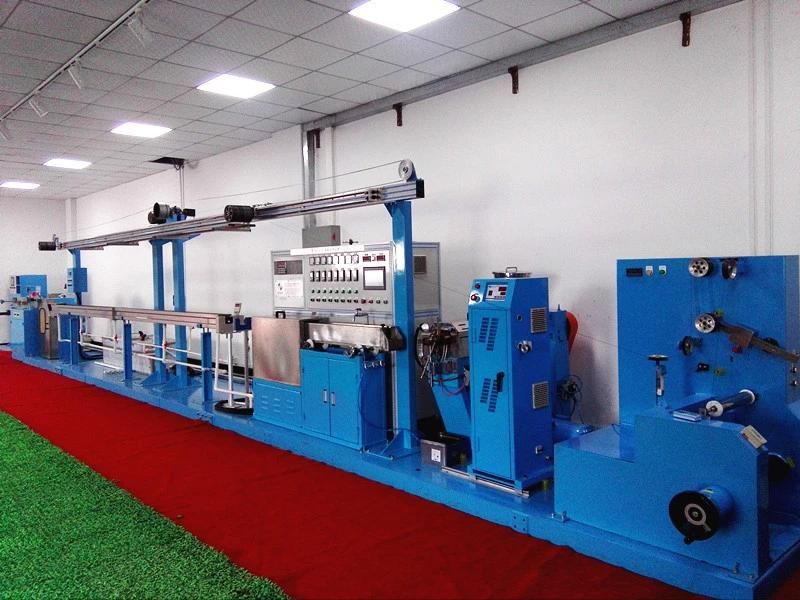

6. Machine pictures:
7.Packaging & Shipping
1) Transparent PE film + Wooden box
2) Cardboard wrapping corner to protection, wire rope in fixed to sea ship
3) 20 Feet container for complete production Line equipment
4) Machine dimension: L x W x H = 20m x 2.5m x 3.2m; Unit weight: about 5500 kg/set
8.Our Services
Pre-sale Services:
1) Spot investigation and professional guiding suggestions;
2) Equipment configuration, model selection reference and technical consultation;
3) Onestop service for investment equipment,product developing, new materials researching and personnel training.
Sale Services:
1) Invite customers to inspect and take trials of finished machines;
2) Provide the training of the maintenance knowledge;
3) Improve the design to the operator's requirements.
After-sale Services:
1) Regular maintenance and product tracking service;
2) Cost price for required parts in lifelong period;
3) Provide quality and efficient after-sale service life long time.
9. About us
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited , and we also have passed ISO9001:2008 since 2010.
10.FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, there are 6000 spuare meters production workshop and office space in our factory.
2) How can we get to your factory to see the machines works?
Address: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to NEWTOPP factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to NEWTOPP factory;
Only 17 minutes by high speed rail from Guangzhou south station to Humen.
