• Model NO.：HH-SZO05
• Color：Blue or Customization
• Power(V)：380V
• Certificate：ISO,CE
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Wood Package
• Specification：CE ISO SGS
• Trademark：HOOHA
• Origin：Dongguan
• HS Code：8479400000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. HH-SZO05 Color Blue or Customization Power(V) 380V Certificate ISO/CE After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Wood Package Specification CE ISO SGS Trademark HOOHA Origin Dongguan HS Code 8479400000 Production Capacity 5 Sets/Month

Product Description

                                                                                 Excellent Optical Wire Extruding Machine

Video link on Youtube:

https://hoohaco.en.made-in-china.com

Specifications:

1,SZ stranding machine
2,production speed:80m/min
3,Automatic high-speed
4,Double wheels
5,Single screw



Equipment Application:

 SZ stranding machine mainly used for SZ stranding and laying-up of ¢ 2.0-¢4.5mm loose tube oil-filled optic-fiber.




Technical Parameters of  SZ Stranding Equipment:


Reinforcement core pay-off reel specification	PN800-PN1250MM
Tension Wheel diameter	ø800mm(double wheels)
Pay-off reels no of optical-fiber bundle tube	12reels(according to clients' requirement)
Max laying-up outer diameter	ø32mm
Production speed	max.80m/min
Laying-up pitch(single screw )	(80-1500mm)±5-10mm
SZ stranding angle	±(4-24)π
Max revolution speed of cotton wrapping head	3000rpm
Max revolution speed of SZ stranding heads	850rpm
Cotton wrapping pitch	20mm-50mm
Reinforcement core pay-off tension	50N-300N
Take-up tension	50-150N
Take-up reel specification	PN1000-PN1800
Excess loss of laying-up	0.02db/km



Main composition are as follows:


NO	All parts' name and specification	QTY

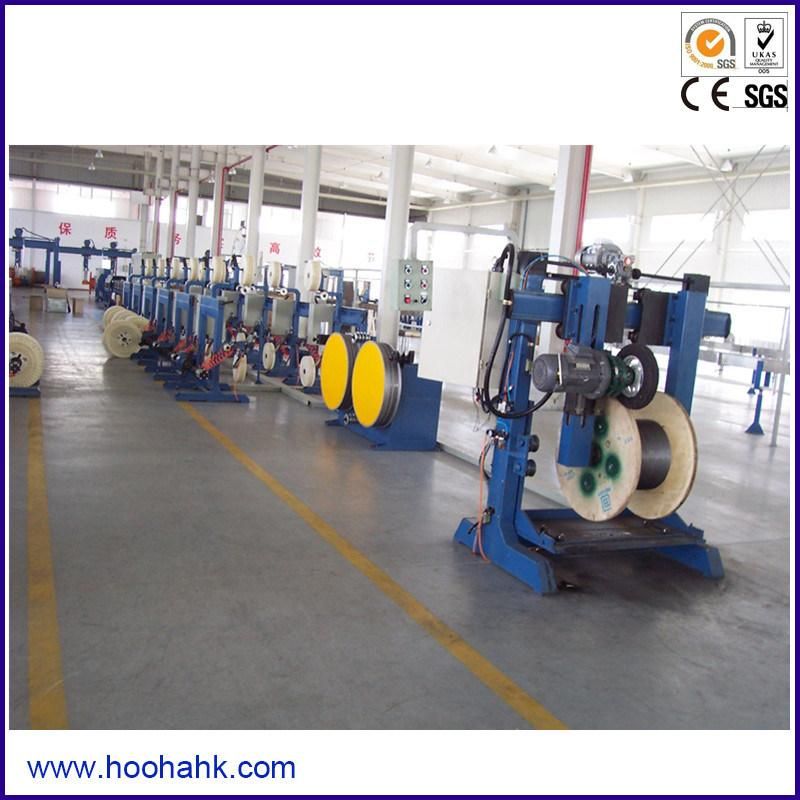

1	Single shaft strengthen core  pay-off rack	1SET
2	tension dancer	1SET

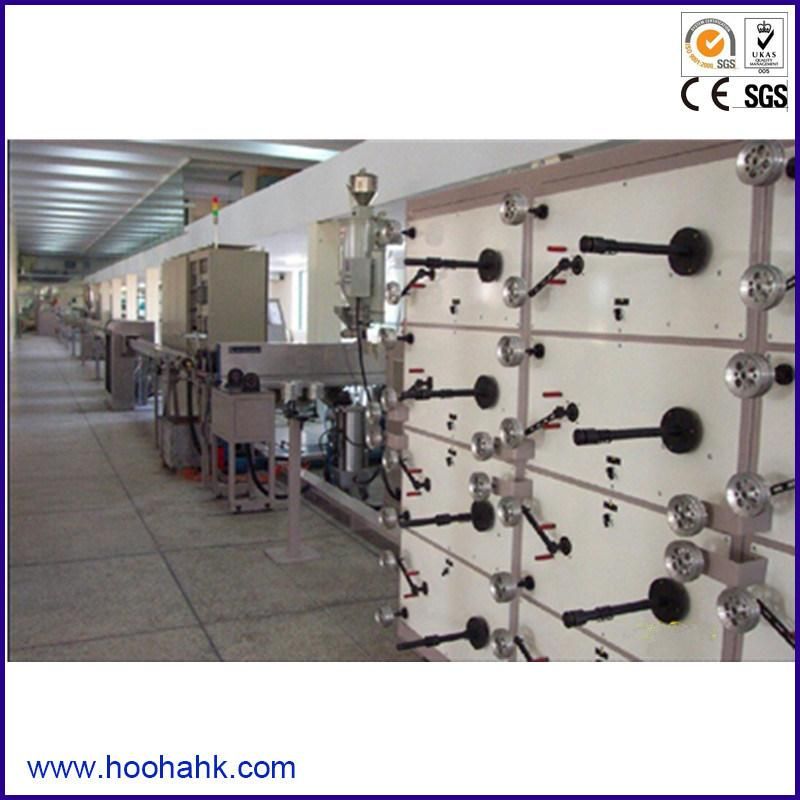

3	Optical fiber tube drive pay-off rack	12set
4	SZ stranding device	1set
5	double-deck concentric with the points  yarn device	1set
6	single-deck yarn and strip longitudinal device	1set

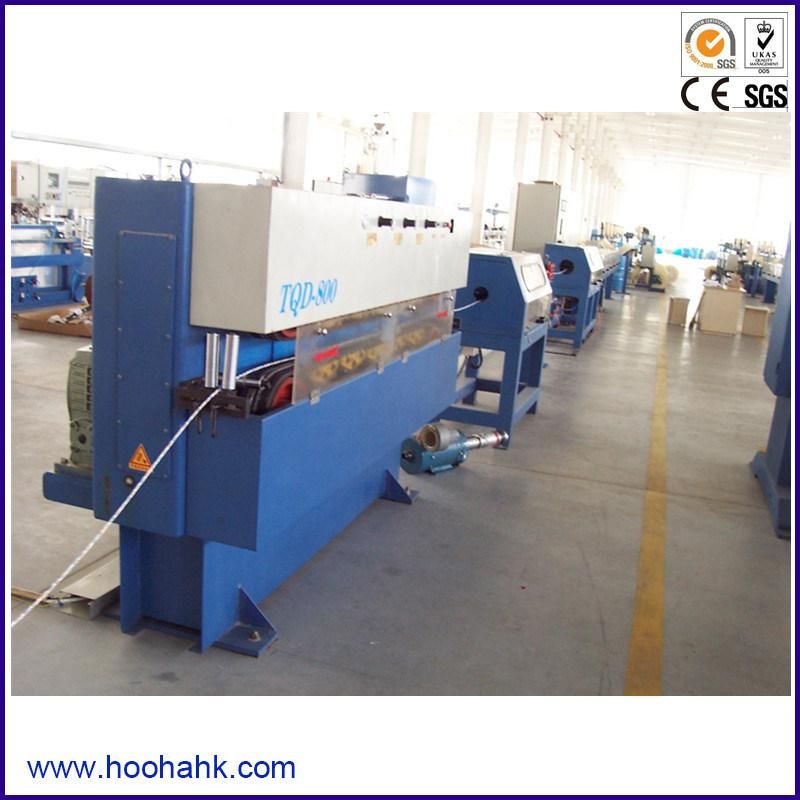

7	800KG pedrail type haul-off machine	1set
8	Roller holder	1set
9	Single shaft cantilever take-up line machine	1set
10	Electric apparatus, main temperature control cabinet(PC+PLC Computer process control)	1set




Contact Information:



Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan  City, Guangdong Province,China

If the machine is not suitable for your wire spec., please contact me.
