Pn630/1250 Cable Reeling Machine Take up& Pay off with Sliding Arms for Drums^

Alpha Technical Industrial Co., Ltd.
  • After-sales Service：Online Video Guidence
  • Automatic Grade：Automatic
  • Driven Type：Pneumatic
  • Warranty：12 Months
  • Function：Abrasion Resistance, Lubrication
  • Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE

Base Info

  • Model NO.：HLT
  • Mould Life：>1,000,000 Shots
  • Application：Winding Various Signal Cable, Optical Cable
  • Machine Model：1250~2500mm
  • Control：PLC
  • Motor：DC Motor
  • Cable Diameter：<60mm
  • Take-up Speed：<100 mm,Min
  • Applicable Wire Coil Dia.：630-2500mm
  • Applicable Outer Dia.：<60mm
  • Applicable Wire Coil Width：475-1900mm
  • Delivery Time：2 Months
  • Product Name：Pn630,1250 Cable Reeling Machine
  • Parts Brand：Siemens
  • Transport Package：Seaworthy Package
  • Specification：Diameter 1250~2500
  • Trademark：Alpha
  • Origin：Wuxi, Jiangsu, China(Mainland)
  • HS Code：8477209000
  • Production Capacity：500 Sets Per Year

Description

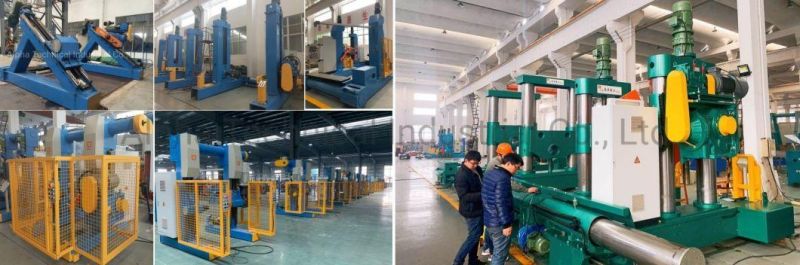

Model630/1250800/16001000/20001250/2500Applicable wire-coil specificationPN630-PN1250PN800-PN1600PN1000-PN2000PN1250-PN2500Applicable cable outer diameter (mm)≤25≤40≤50≤60Applicable wire-coil diameter (mm)630-1250800-16001000-20001250-2500Applicable wire-coil width (mm)475-950600-1180750-1500950-1900Take-up speed (mm/min)≤100≤100≤80≤60Winding precision (%)1-21-21-21-2Loading capacity (T)234.56Pn630/1250 Cable Reeling Machine Take up& Pay off with Sliding Arms for Drums^Our FactoryPn630/1250 Cable Reeling Machine Take up& Pay off with Sliding Arms for Drums^   FAQ

− Q: Are you the manufacturer or trading company?

     A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than ten years.

− Q: What is your company's main production?

     A: We specialized in optical fiber and optical cable machine researching and manufacturing. Our products include Optical fiber coloring and rewinding machine series, Optical fiber secondary coating line series, Optical cable stranding line, Optical fiber cable sheathing line series and other optical cable equipment.

− Q: What can we offer our customers?

     A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

     A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
     A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.

         We have an experienced team of skilled workers and engineers.

         We can support overseas training engineers.

         We can customize the design, to accept the customer's sample design.

         We can provide customers with after-sales service.



Enable us make quotation for you, would you pls share below information:
1.Technical drawing of reel, on the drawing we can find reel diameter, center hole diameter and width of reel
2.Pay off and take up speed
3.Loading weight
4.The pay-off and take-up is controlled by torque or speed.
