• Model NO.：WRZ-500
• Wire Size Dia：0.3-3.5mm
• Power：2.5kw
• Driven Type：Electric
• Condition：New
• Certification：ISO, CE
• Automatic Grade：Automatic
• Mould Life：<300,000 Shots
• Type：Automatic Winding
• Transport Package：Sea Shipping
• Specification：1200KG
• Trademark：Senerge
• Origin：Zhejiang, China
• HS Code：8479811
• Production Capacity：4 Units, Month

Basic Info.

Model NO. WRZ-500 Wire Size Dia 0.3-3.5mm Power 2.5kw Driven Type Electric Condition New Certification ISO, CE Automatic Grade Automatic Mould Life <300,000 Shots Type Automatic Winding Transport Package Sea Shipping Specification 1200KG Trademark Senerge Origin Zhejiang, China HS Code 8479811 Production Capacity 4 Units/ Month

Product Description

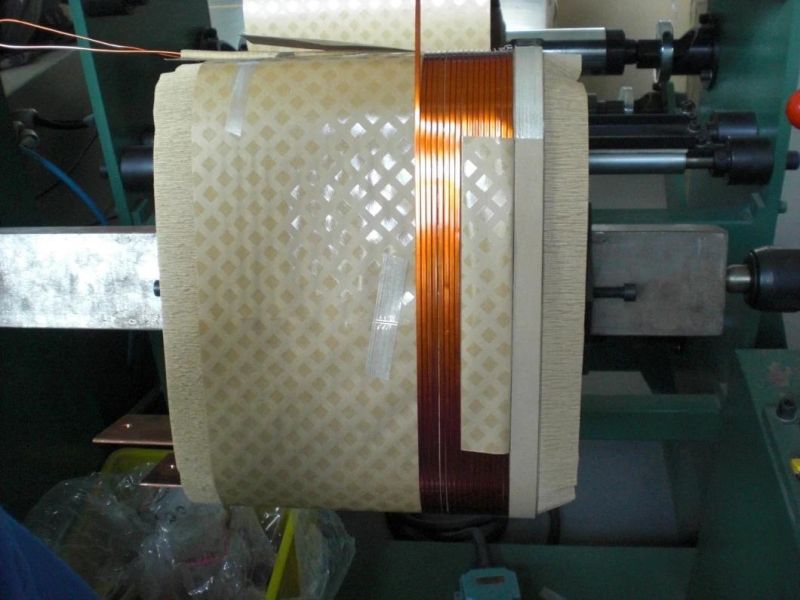

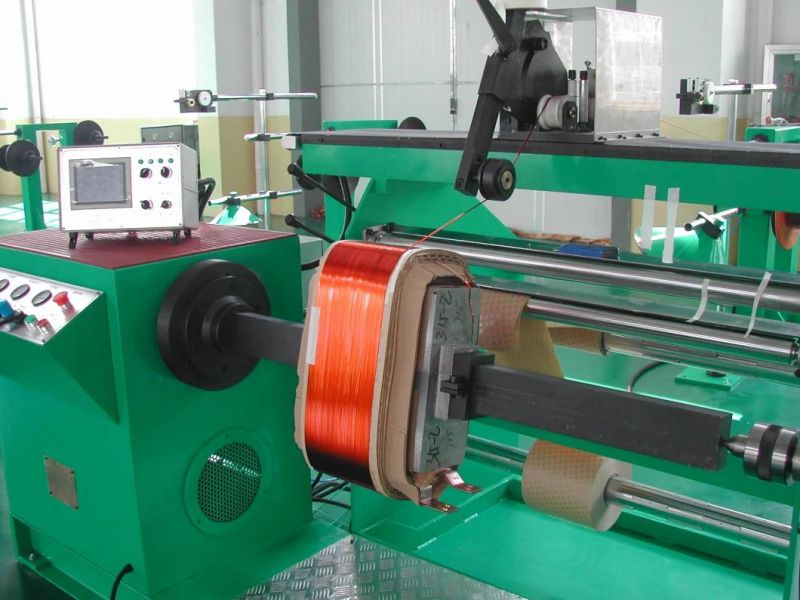

WRZ-500 Vertical Coil Winding Machine for Transformer

WRZ-550 model automatic HV winding machine applies to manufacture of windings for various types of small distribution transformer, current transformer and reactor etc.

It consists of winder, automatic wire pitch setter, layer insulation feeder, tension adjustable feeder, pneumatic system, PLC control and servo system. Having the advantages of high automaticity, complete functions, strong power etc. and ensures the axial and radial tightness and also for manufacturing square coil.

1. Main technical parameters

1. Center height	860mm
2. Center distance of spindle	500mm
3. Mandeill torque	Max 100 N-M
4.Rotation speed	0- 400 r/min
6. Used winding parameters
Outside diameter (o.d.)	≤ 350 mm
Inside diameter (i.d.)(As size of customer mold)	≥ 80 mm
Coil Length ( L )	≤ 400 mm
Weight of working part	≤ 100 kg
7. Power	2.5 kW
8. Max. set turns	0--9999.9
9.Conductor specification
Cu .Wire Size dia	Φ0.3 mm-Φ3.5 mm
Fate Cu. Wire	≤ 10 mm2
Cu. Flat Strip	2.5mm (T)x6mm(W)
10. Automatic wire pitch setter
Minimum Pitch of wire	0.01mm
11.Power supply Three phase	AC 380 V+/- 10% 50 HZ
12. Weight	1200kg
13.Outline dimension	3500(L)×1400(W)×1200(H) mm
14. temperature of working shop	0-45°C



2.Main parts Supplier

Item	Supplier
Inverter	MITSUBISHI
Servo system	MITSUBISHI
PLC	MITSUBISHI
Screen	MITSUBISHI
Electrical components	Schneider
Pneumatic components	EMC
Liner guide	TBI
