Qm F Series Zln Straight-Socket M12 Cable Push Pull Connector
Shanghai Quanma Electronic Technology Co., Ltd.- After-sales Service：12month
- Precision：Precision
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Automatic Grade：Automatic
Base Info
- Model NO.：ZLN
- Installation：Vertical
- Driven Type：Electric
- Protection Level：IP68
- Numbers of Inserts：>5000
- Vibration：10-20000Hz, 15g
- Temperature Rang：-45c~ +125c
- Mechanical Shock：100g.6ms
- Salt Spray Corrosion Test：96h
- Material：Cooper Alloy
- Series：F Series
- Pins：Multipins
- Voltage：12V
- Humidity：at 60c, The Highest Humidity Can Reach 95%
- Quality：Waterproof
- Pin：Multipin
- Type：Push Pull Connector
- Brand：Qm
- Transport Package：Standard Box as Required
- Specification：0F, 1F, AF, 2F, 3F
- Trademark：QM
- Origin：China
- HS Code：8536700000
- Production Capacity：5000000PCE,Year
Description
Product Description

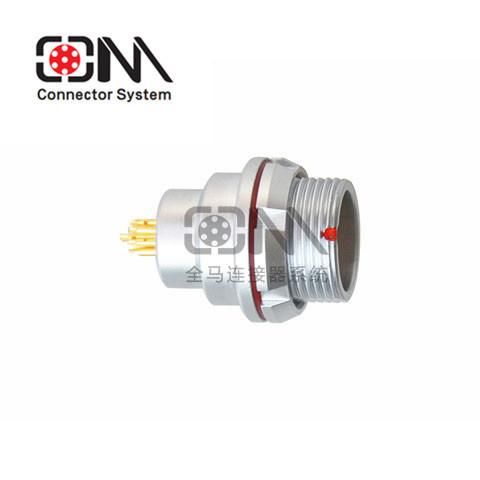

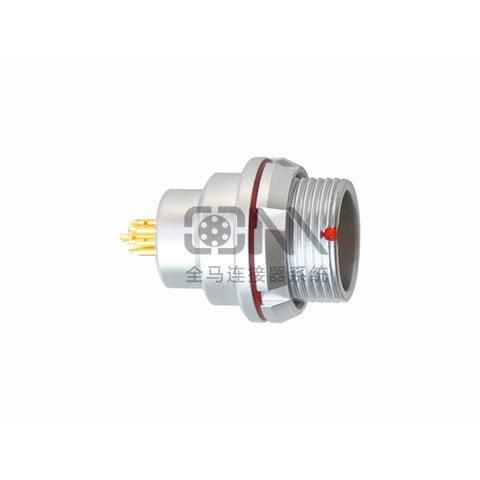

ZLN straight socket
Socket, connector, semi-circle positioning, waterproof
F series split push-pull self-latching waterproof plug, waterproof level IP68, and has the characteristics of small and convenient installation
Detailed Photos
Features

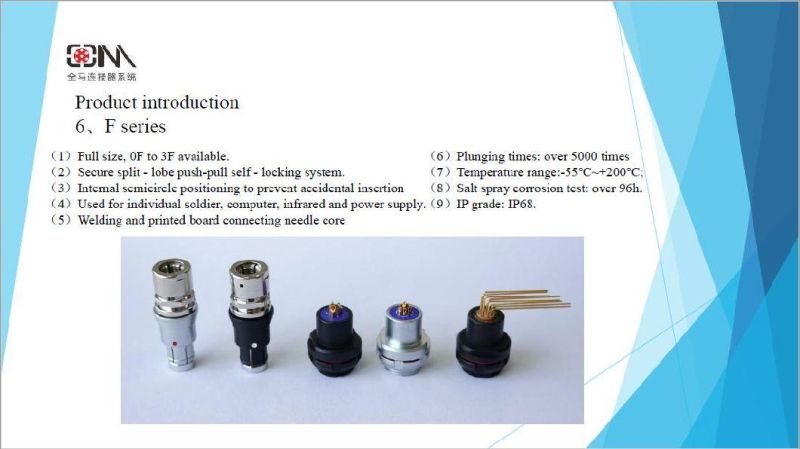

Main features of F series connector
Safe split push-pull self-latching system
Multi-core type: 1-40 cores
Straight type, 90°angle type
Positioning piece system, single positioning piece, double positioning piece, used for connector alignment to prevent mis-insertion
High density installation, saving space
360° shielding provides all-round EMC protection
Specification
Technical characteristics of F series connectors:

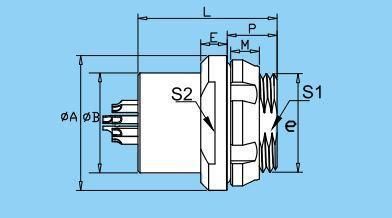

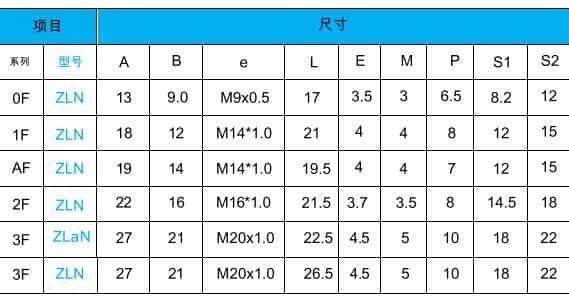

Product ParametersTechnical parameters of ZLN straight socket
Catagory: Waterproof F series
Model: ZLN
Series :0F,1F,AF,2F,3F
Company Profile

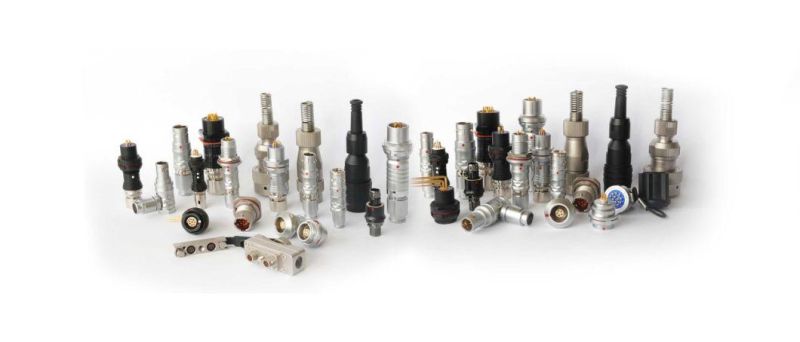

QM connector is a Chinese manufacture of waterproof push pull connector. We aim to provide high quality connectors for our customers. Push pull connector is a small and convenient spare parts for your equipment. It can be used in medical device such as endoscopy, can be used in military use helmet and garments, base station for telecommunication, automatic machine such as dispensing machine, etc. Our waterproof self-locking connector have different series will fit your requirement in different equipment. We also provide custom made service if reach the MOQ. QM always keeps in faith that we should do our best to help our customers. Your satisfiction is our motivation!

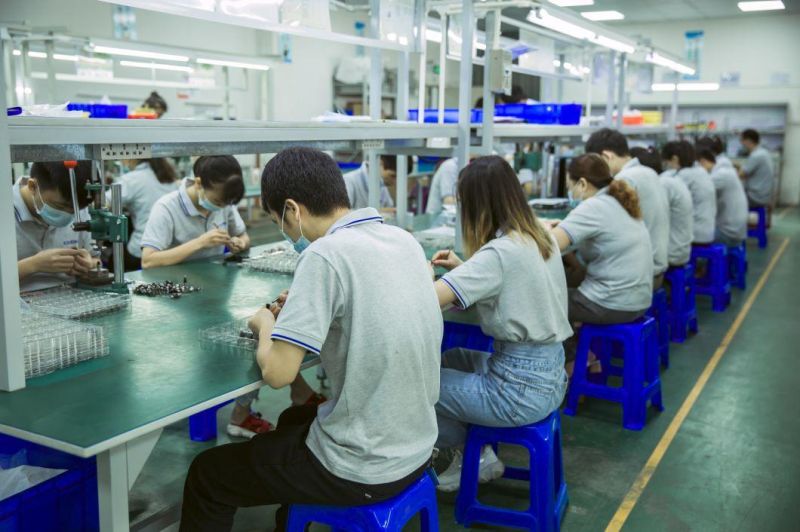

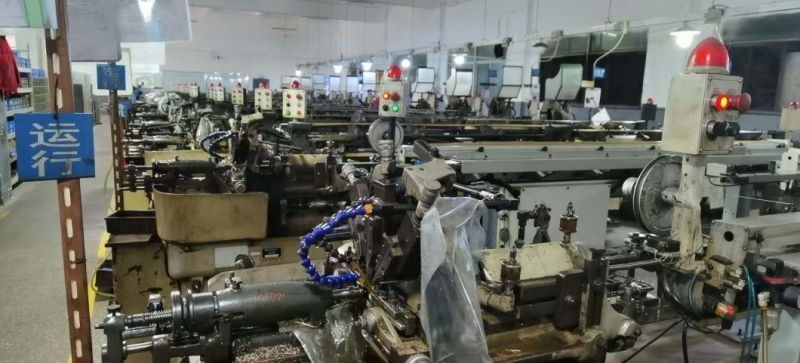

Our factory is located in Shenzhen. The pictures of our factory shows below. We have qualified staff that make sure our customer's order will be delivered in time. Also research and invent new product is always important for a manufacturer. We have a reliable reserach and development team that will make sure our product fit our customer's needs.
Certificate
FAQQ1. Are you a manufacturer or trading company?
QUANMA:We are a professional manufacturer of push pull connectors our sales servicedepartment is in Shanghai and our factory is in Shenzhen
Q2. What's the lead time after place order?
QUANMA: Normally we will deliver your order 7-12 working days after place order.
Q3. Is you connector compatible with other brand connector?
QUANMA:B series is compatible with LEMO connector.Q4. How many field can be used this kind of connector?QUANMA: QUANMA connector now widely used in the fields of measurement,medical,
audio-video,military,navigation,security,aviation,industrial control,automo-tive and power etc.
Q5: How's our order spacked and delivered ?QUANMA:

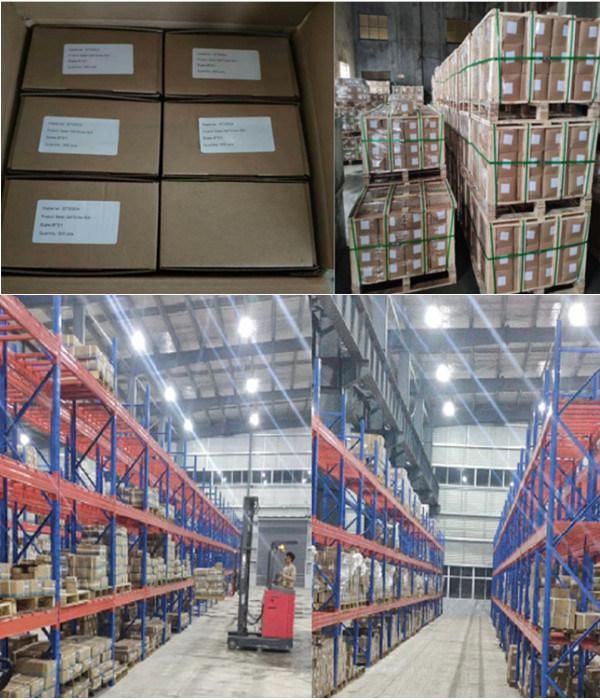

Our connector will pack and ship to you safely. We will pack it as you required. Check our package and warehouse below!
