• Model NO.：AIMIQI-DJJ-A00002
• Installation：Desktop
• Driven Type：Electric
• Transport Package：PE Protecter with Outer Carton
• Specification：680*570*680mm
• Trademark：AIMIQI
• Origin：China
• HS Code：8479509090
• Production Capacity：600 Sets Per Month

Basic Info.

Model NO. AIMIQI-DJJ-A00002 Installation Desktop Driven Type Electric Transport Package PE Protecter with Outer Carton Specification 680*570*680mm Trademark AIMIQI Origin China HS Code 8479509090 Production Capacity 600 Sets Per Month

Product Description

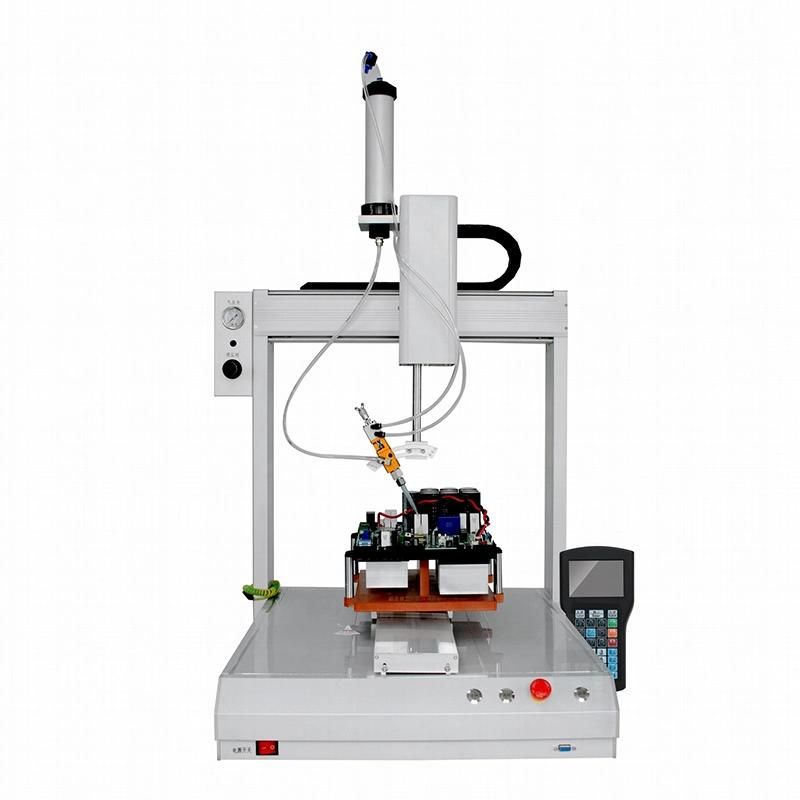

High precision three axis automatic glue dispenser

Allowable Delivery(X/Y/Z)	400*400*100mm (Optional Path)
Max. Speed	500mm/S
Max. Payload(Z Axis)	5KG
Max. Payload(XY)	10KG
Transmission	Micro Stepping Motor + Synchronous Belt
Conductor	Touch Screen + Visual Programm System
Capacity Of Program Storage	999 groups
Reposition Accuracy	±0.1mm
Dispensing Accuracy	95%
Min. Allowable Amount Of Glue	0.01ml
Action Frequency	<60/min
Power	AC220/110V
Applicable Glue	Silicone,  UV glue,  AB glue,  Epoxy resin,  Instant glue,  EMI conducting resin,  Sealant,  Hot glue,  Grease,  Elargol,  Red gum,  Solder paste,  Thermal grease,  Zapon lacquer,  Screw fixing agent

The powerful features of AIMIQI System:

1)The simple structure and less components make it an easy maintenance with low cost.

2)The Dispensing System performs in high precision and more flexible and takes less space.

3)All the control can be implemented through a touch screen of control box for an easy operation.

4)The robot can work continuously for a long time, saving the laborforce a lot and being more productive.

Warranty:

One year for core and permanent warranty for firmware.

After-sales service:

Video technical support, Online support.
