• Model NO.：NeoDen K1830
• Type：High-speed Chip Mounter
• Model：Neoden K1830
• Max Speed：1,6000cph for LED Assembly
• Average Speed：8500cph for Drive Board
• Nozzle Head：8
• Vision：Flying Vision System
• Feeder Qty：66PCS (If 8mm, 12mm)
• Packing Size：142*122*166.5cm
• Smallest Component：Imperial 0201
• Max IC：40*40mm
• Transport Package：Fumigation Free Wooden Case
• Specification：142*122*166.5cm
• Trademark：NeoDen
• Origin：Zhejiang, Cn
• HS Code：84798962
• Production Capacity：50sets,M

Basic Info.

Model NO. NeoDen K1830 Type High-speed Chip Mounter Model Neoden K1830 Max Speed 1,6000cph for LED Assembly Average Speed 8500cph for Drive Board Nozzle Head 8 Vision Flying Vision System Feeder Qty 66PCS (If 8mm/ 12mm) Packing Size 142*122*166.5cm Smallest Component Imperial 0201 Max IC 40*40mm Transport Package Fumigation Free Wooden Case Specification 142*122*166.5cm Trademark NeoDen Origin Zhejiang, Cn HS Code 84798962 Production Capacity 50sets/M

Product Description

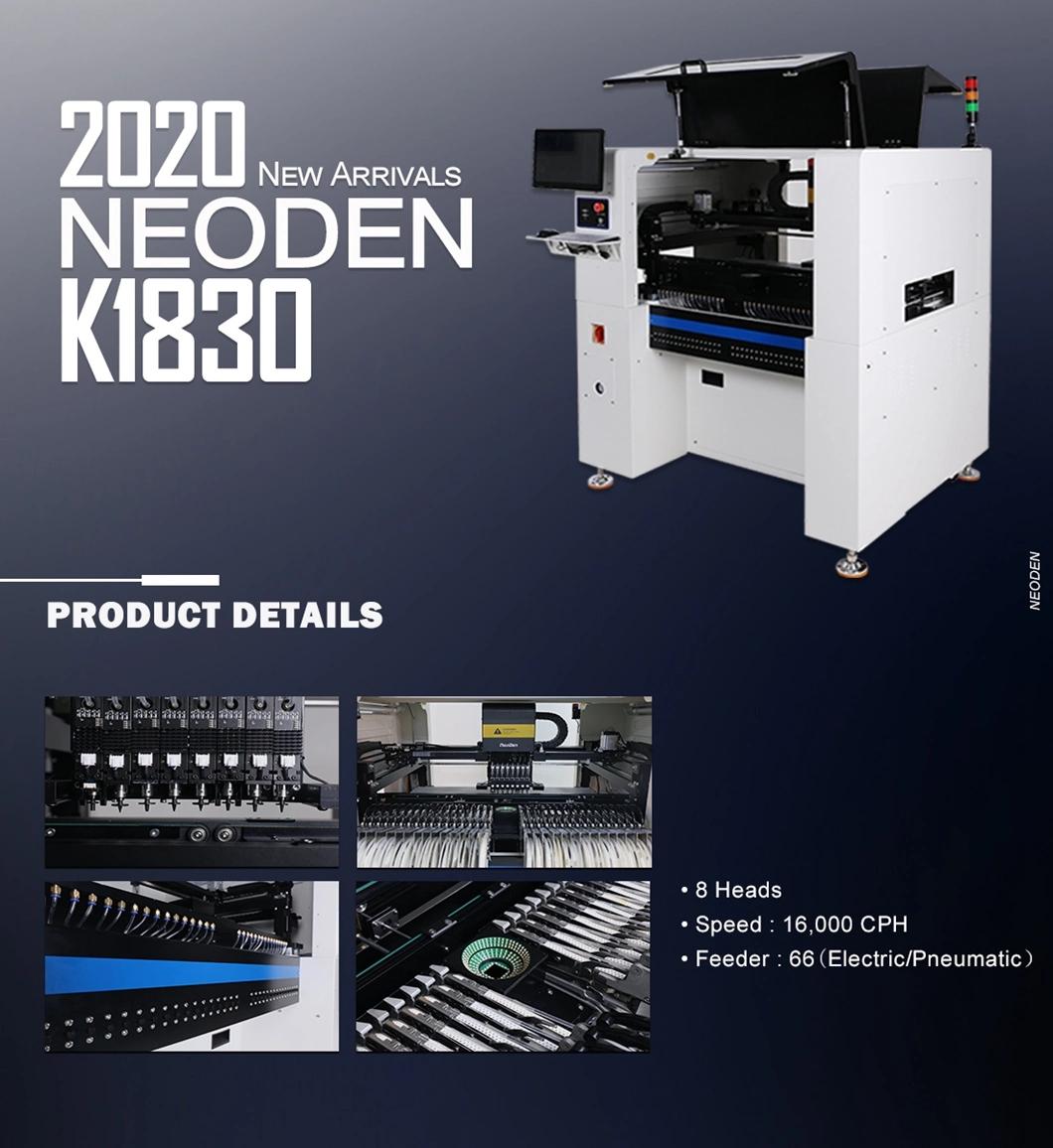

SMT pick and place machine NeoDen K1830
1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed 2. Machine runs on highly stable and secure Linux operating system 3. Double mark cameras to reach at extreme end feeders for better calibration 4. High resolution and high speed component camera system improves the overall speed of the machine 5. Ethernet communication interface for all internal signal travel makes the machine to perform more stable and flexible 6. Closed loop Servo control system with feedback makes the machine to function more accurate 7. PCB location can be calibrated automatically and promptly,based on the correct and specific placement request





Model	NeoDen-K1830
Nozzle head qty	8

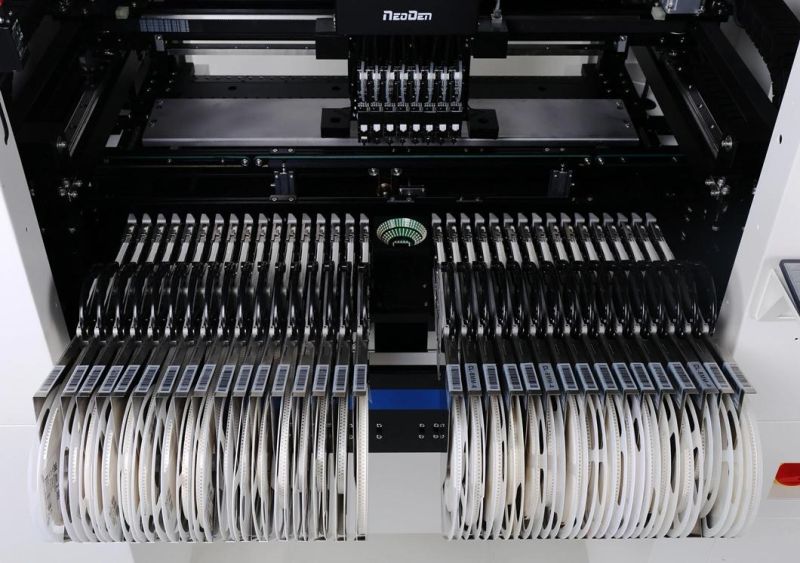

Reel tape feeder qty max.	66

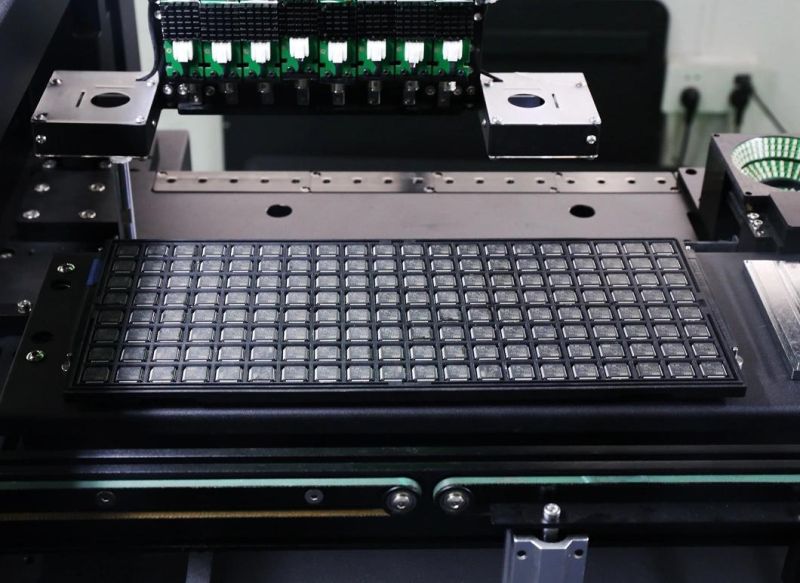

Tray feeder qty	10
PCB size max.	540*300mm (under single phase)
Component available size	0201 (electric feeder), 0402-1210
IC available	QFP, SSOP, QFN, BGA
Machine accuracy	0.01mm
Component available height max.	18mm
Air supply	>0.6MPa
Power	500W
Voltage	220/ 110V
Speed max.	16,000cph

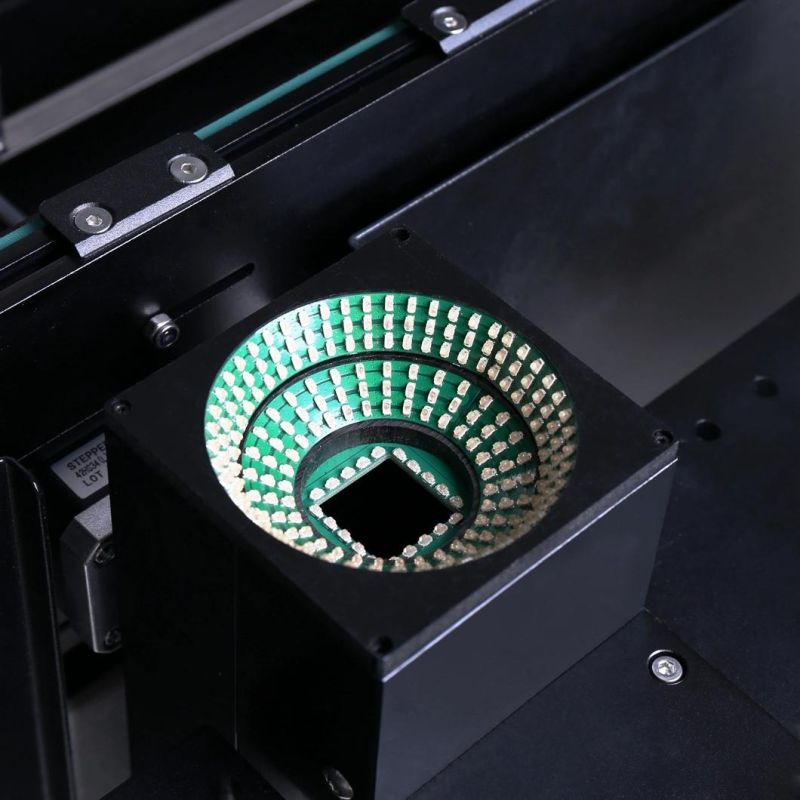

Component recognition	Flying vision
PCB recognition	High precision mark camera
PCB transfer direction	Left→right

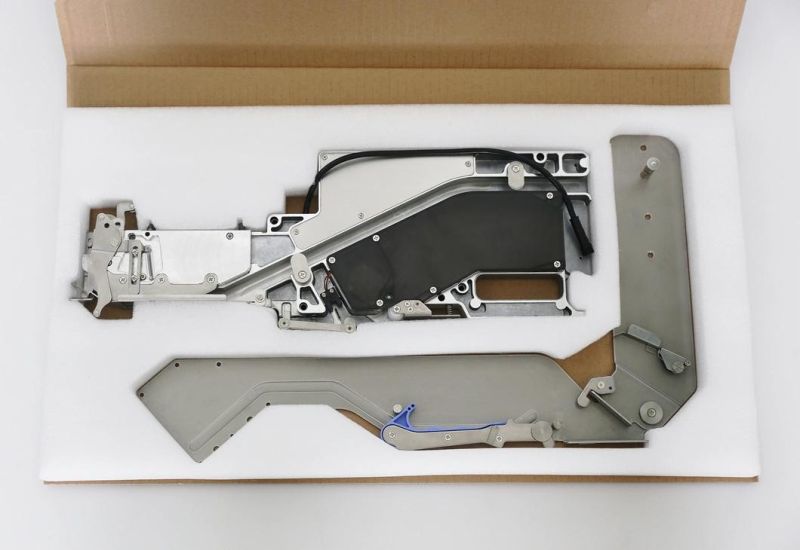

 Applicable to: Scale pcb assembly production.Support electric feeder and pneumatic feeder. Electric feeder cost higher, but for 0201 component, please must select electric feeder.Pneumatic feeder is lower cost, you can select it as normal assembly work, and support feeder size: 8mm/ 12mm/ 16mm/ 24mm/ 32mm/ 44mm/ 56mm.
Why NeoDen

1. NeoDen has owned more than 50 patents and TUV NORD CE certificate.
From 1st generation to 4th generation, NeoDen pick and place machine have gained applause from thousands of electronics hobbyists, start-up owners, lab researchers for its high accuracy, stable performance and affordable price.

2. Efficient After Sales Service
NeoDen has 11 after-sales engineers, act as the strong power back supporters to help user in maintenance and technical support. We shall help to provide a solution within 1-2 hours if any questions arise.The after-sales team works both workday and holidays.

3. Worldwide Sales Network
NeoDen has more than 15 distributors over the world, for example, India, Netherlands, Russia,USA, Japan, South Korea, Turkey, Brazil, Colombia, Vietnam, Iran,Australia,Chile,Argentina and Taiwan.
All the distributors could provide more professional pre-sales, training and technical support to local customers.

4. One Stop SMT Solution
If need related AOI/ loader/ unloader/ reflow oven/ auto stencil printer/ conveyor etc., we can send together

5.Innovation
6 software engineers, 11 hardware engineers, 7 electronics engineers, 4 testing engineers make sure we can develop a new model in every 1~2 years.

Production team
115 staff worked in the processes from hardware cutting, assembly, testing to finished goods in warehouse. 100% test from each accessory part to finished machine to keep sure high quality.

Welcome to visit NeoDen
