• Model NO.：NeoDen3V Standard
• Type：Medium-speed Chip Mounter
• Max Mounting Size：320*420mm
• Max Mounting Capability：3500cph Vision on,5000cph Vision off
• Feeders：24
• Max Applicable Height：5mm
• Tape Width：8,12,16,24mm
• Vibration Feeder：1set
• Power Supply：220V, Convertible 110V
• Max Movement Speed：1m,S
• Vacuum Pump：3PCS
• Placement Head Qty：2PCS
• Transport Package：Fumigation-Free Wooden Box
• Specification：CE,ISO
• Trademark：NeoDen
• Origin：Zhejiang
• HS Code：84798962
• Production Capacity：200sets,M

Full Vision 2 Head System

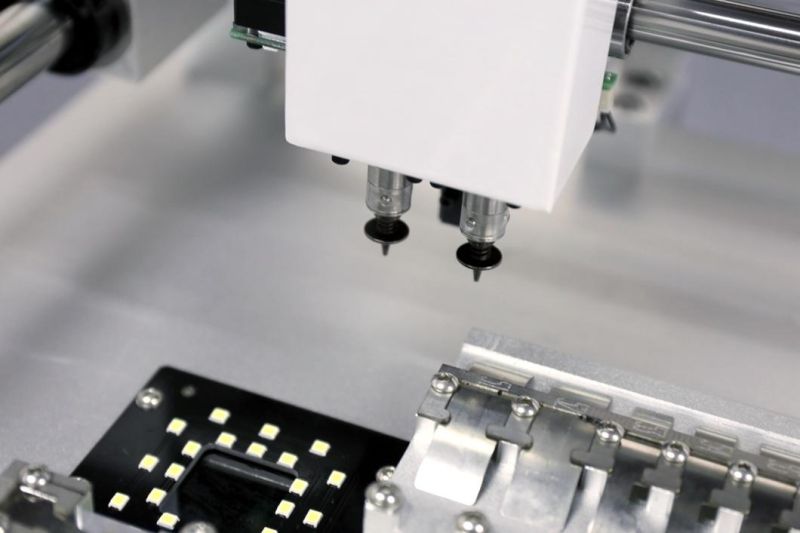

2 high-precision placement heads with ±180° rotation could satisfy the need of wide range components.

Patented Automatic Peel-box
Patented electromagnetic actuators, you don't need to get rid of the wasted nylon film manually, which saves you more time and effort.

Flexible PCB positioning
By using PCB support bars and pins, wherever you want to put the PCB and whatever the shape of your PCB is, all can be handled well

Integrated Controller
More stable performance and easier to do maintenance.


Manual Programming
Select "Chip list" to start manual programming.
Function: it's used to display footprints, coordinates, angles and sequences of components. You can choose to add these information
manually or import coordinates file directly.


Feeder Settings
All component's allocation should be operated in this interface, such as selection of nozzles and feeders, pick-up position, alignmentmethods, etc.
