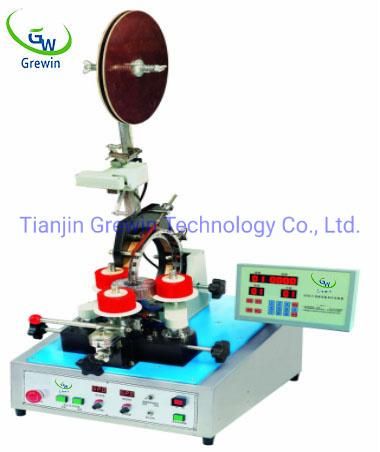

Grewin Tape Wrapping Toroidal Transformer Coil Winding Machine

Tianjin Grewin Technology Co., Ltd.
  • Warranty：1 Year
  • Tape Width：10(8, 12, 15)

Base Info

  • Model NO.：GWTM-0118
  • Max.Final Coil.O.D：60-200
  • Min.Final Coil.I.D：30
  • Max.Finalcoil Height：80
  • Controller Storage Capacity Programs：29 Sets
  • Max.Taping Speed：200rpm
  • Tape Spacing：Proportional Linkage
  • Supply Voltage：AC 220V(50Hz)
  • Mechanical Dimensions：550*500*1100
  • Weight：100kg
  • Automatic：Automatic
  • Certification：RoHS, CE, ISO
  • Wire Type：Copper
  • Machine Type：Semi-Auto Winding Machine
  • Key Words：Taping Machine
  • Transport Package：Export Standard Carton or Customize Strong Pallet
  • Specification：CE
  • Trademark：Grewin
  • Origin：China
  • HS Code：85043190
  • Production Capacity：100PCS
  • Package size per unit product：55.00cm * 50.00cm * 110.00cm
  • Gross weight per unit product：100.000kg

Description

AC 220V/110V(50/60MHz)the winding motor1/2HP DC motorAccording to the machine head and shuttle size
Grewin Tape Wrapping Toroidal Transformer Coil Winding Machine




Related Products

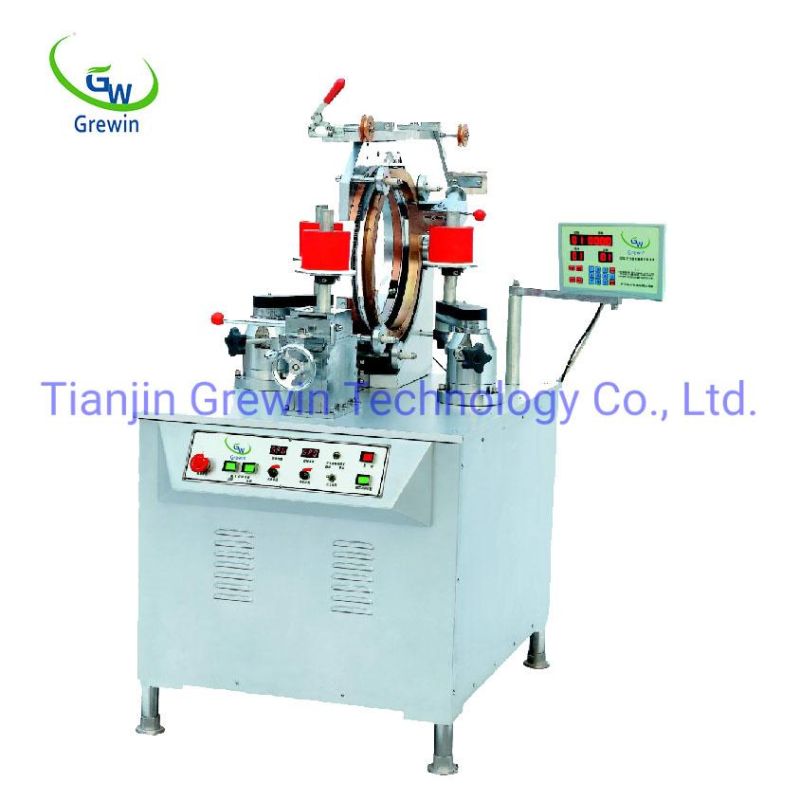

1.GWM-0119 Gear type toroidal coil winding machine

Grewin Tape Wrapping Toroidal Transformer Coil Winding MachineWire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical dimensions550*500*780Controller storage
capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)
(unit): mm


2.GWM-0719 Floor type toroidal coil winding machine

Grewin Tape Wrapping Toroidal Transformer Coil Winding MachineWire diameter1.0-4.50Max.winding speed150rpmMax.final coil.O.Dφ250-800Wire spacingProportional linkageMin.final coil.I.Dφ80Supply voltageAC 220V(50Hz)Max.finalcoil height250Mechanical dimensions1050x900x1530mmController storage
capacity Programs29 (set)Weight383kgGWM-0719 (winding machine/Mag.OD.400)
(unit): mm

3.GWTM-0218 Gear type automatic wrapping insulating tape machine

Grewin Tape Wrapping Toroidal Transformer Coil Winding Machine
 Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical dimensions550×500×1100Controller storage
capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)
(unit): mm
Of course we have other models, please contact us if you need.

How to select the best suited automatic toroid taping machine for your toroid coil?
Tell us your toroidal coil of data as below please:
1.toroid core outside diameter before winding?
2.toroid core inside diameter before winding?
3.toroid core height before winding?
4.how many windings on this core?
5.how many tape windings total on this toroidal coil?
6.how about the tape width of each tape winding?
7.how many turns of each tape winding?
8.provide pictures of product which is better.
