• Model NO.：F8
• Dimension：5300X1320X1490mm
• Heating Style：Hot Air
• Number of Heating Zone：up 8,Bottom 8
• Length of Heating：3121mm
• Convey Type：Meah+Belt
• Max PCB Size：420mm
• Power Supply：5 Line 380V 50Hz
• Control Method：PC+PLC
• Weight：1800kg
• Transport Package：Wooden Box
• Specification：5300*1320*1490mm
• Trademark：Jaguar
• Origin：China
• HS Code：851419
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. F8 Dimension 5300X1320X1490mm Heating Style Hot Air Number of Heating Zone up 8/Bottom 8 Length of Heating 3121mm Convey Type Meah+Belt Max PCB Size 420mm Power Supply 5 Line 380V 50Hz Control Method PC+PLC Weight 1800kg Transport Package Wooden Box Specification 5300*1320*1490mm Trademark Jaguar Origin China HS Code 851419 Production Capacity 30 Sets/Month

Product Description

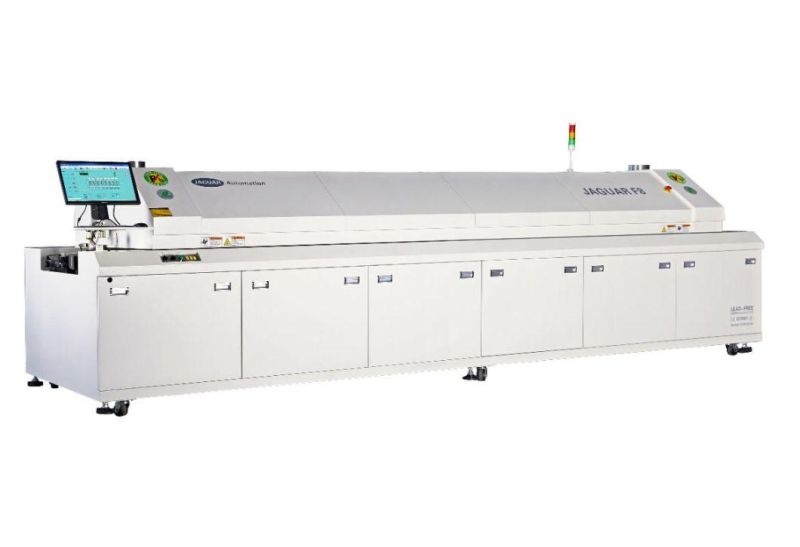

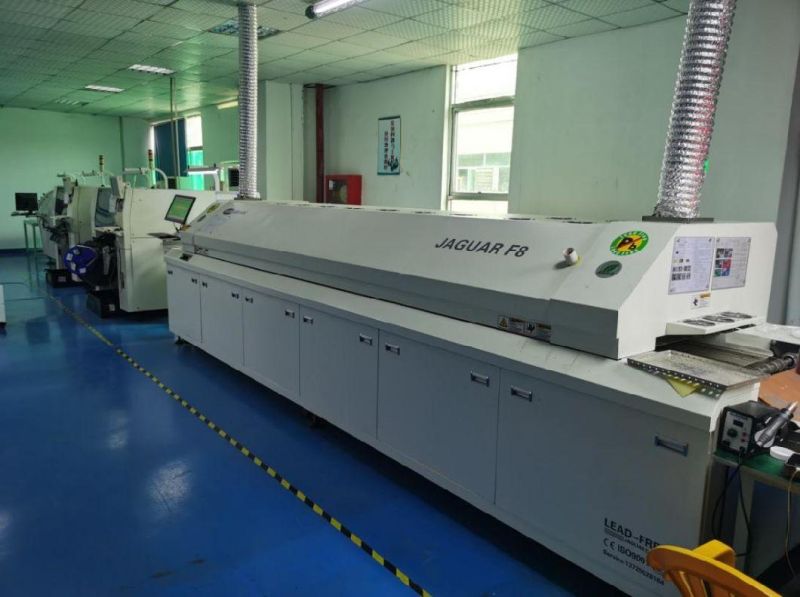

JAGUAR 8 Zones Lead Free Hot Air Reflow Oven F8

Introduction:
 1. Heating zone1.1: New energy saving furnace design, 4 sides return air, the best temperature uniformity
1.2: Plug-in type imported high temperature motor, quick replacement in 5 minutes
1.3: 8 heating zones, 16 heating elements( up 8/ bottom 8 ) , independent temperature control and switch
1.4: The latest design of nozzle plate, the best insulation performance
 2. Control system 2.1: Siemens PLC, table machine performance
2.2: Professional IPC, Windows 7 operation interface, English/Chinese language free switch
 3. Convyeor system3.1: Conveyor speed: The speed of the stepless frequency converter is 0.35m-1.5m /Min, and the accuracy is ±2mm/ Min

4.Cooling zone
4.1: Axial fan forced air cooling ( Up and bottom dual cooling)

5.Protection system
5.1: Temperature out of tolerance alarm, transmission speed out of tolerance alarm
5.2: IPC+UPS
5.3: Super positioning flexible and convenient screw width adjusting system
5.4: IPC delay shutdown function

6.Machine parameters


Machine dimension	5300 x 1350x 1490mm
Color	Ivory
Net weight	Approx. 2250kgs
Exhaust volume	10m3/min X 2pipe
Power supply	5 wire, 3 phase, 380V 50/60HZ
Startup power consumption	48KW
Steady power consumption	8-12KW
Warming time	About 30mins
Temperature range	Room temperature-300ºC
Mesh width	500mm
Max PCB width	420mm
Component height	Up 25mm/Bottom 25mm
Conveyor direction	Left-right ( option: Right-left)
Conveyor speed	300-2000mm/min
Data storage	Process data and status storage(80GB)
Abnormal alarm	Over temp or low temp alarm, sound and light 2 modes

7.Machine configuration


Heating zone	Up 8, Bottom 8
Cooling zone	Up 2, Bottom 2
Control mode	WINDOWS 7+IPC+PLC
Temperature control mode	PID closed loop+SSR driver
Thermal couple wire	3pcs
Conveyor system	Mesh+Chain
Conveyor control mode	3 inverters+Panasonic motor
Hood lift	Electric hood lift
UPS	Standard, power off standby to protect PCB production completed


About Us:

Shenzhen Jaguar Automation Equipment Co., Ltd. is a professional Reflow Oven and Wave Soldering Manufacturer in Shenzhen, China. We focus on SMT and THT Soldering technology for more than 10 years, and our engineers have more than 20 years experience.
We are certified National High-tech Enterprise since 2017, integrated R&D, manufacture, service, trade, all our products have CE certification, our products are widely recognized at our domestic market as well as oversea market.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.



Our Factory:

More than 6000 square meters production plant.
More than 20 years experience in SMT automation equipment manufacturing. More than 50 peoples production team, among them
36 mechanical assembly technicians
12 electrical engineers
4 professional QC



Successful Experience:

JAGUAR's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 600 experts and technician for customers.
3. Became the most reliable Chinese partner for you.



Customer and Feedback:



Exhibitions:

Keep attending more than 10 exhibitions and forums each year.
The annual NEPCON and Electronica exhibitions are our regular event.
Participate in 3-5 overseas famous exhibitions regularly every year, like:
IPC Expo in San Diego, US
Electronica in Delhi, India
Electron Tech Expo in Mosco, Russia
WIN Exhibition in Istanbul, Turkey



Our Certificates:

We passed ISO certifications
We are IPC member company
We are National High-tech Enterprise
All the machines have CE and ROHS certifications




Packing and shipping:


What we can do for you?

1.  We provide full SMT and THT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT and THT factory setup
5.  We can solve any question about SMT and THT
