FEP (F46) /PFA /ETFE (F40) Teflon Cable Extruder Machine
Dongguan Newtopp Electrical Machinery Co., Ltd.- Driven Type：Electric
- Condition：New
- Certification：CCC, PSE, UL, FDA, RoHS, ISO, CE
- Warranty：12 Months
- Screw：Single-Screw
- Name Machine：FEP(F46),PFA ,ETFE(F40) Cable Extruder Machine
Base Info
- Model NO.：XJ-20mm-40mm
- Extrusion Material：ETFE,F40, FEP,F46, Fpa
- Screw Type：Single Screw
- Screw L/D：28:1
- Line Speed：Max.180m,Min
- Precision：High Precision
- Customized：Customized
- Transport Package：PE Film + Wooden Box
- Specification：CE SGS
- Trademark：NEWTOPP
- Origin：Dongguan City, China
- HS Code：8479400000
- Production Capacity：6 Sets,Month
Description
U-type single-layer water troughAccumulate length 0-100m 0-100m 0-100m 0-100m Capstan power 1kw Servo motor 2kw Servo motor 2kw Servo motor 2kw Servo motor Max speed 150m/min 150m/min 180m/min 180m/min Take-up type Double shaft Double shaft Double shaft Double shaft Take-up bobbin Φ100-200mm Φ200-300mm Φ200-300mm Φ300-400mm Size( mm) 8000*1200*2100 8000*1400*2100 9000*1400*2100 12000*1800*2100 Total Weight 3.0 T 3.5T 4T 5.5T
1) The PLC+Touch screen is adopted to store, display and modify technological parameters, adjustment and monitoring the running state of the production line;
2) Equipped with special screw, barrel, crossheas, dies and matching electric-heating control system for teflon insulation;
3) Equipped with precise detect and auto-feedback control system, to ensure speed stable of the line and control sensitivity precise, reduce the errors of the diameter and insulation thickness, depress the cost greatly;
4) The heating parts are all made of copper-alloy with high temperature resistance.
4. Main components:
1) Active type pay-off machine
2) High-frequency preheater
3) Straightening device
4) Main extruder
5) Automatic drying hopper
6) CNC Electric cabinet
7) Movable thermostatic water trough
8) Single layer cooling water trough
9) Horizontal wire accumulator
10) Sigle wheel belt capstan
11 Double shaft take-up machine
12) Meter counter
13) Laser diameter tester
14) Lump gague
15) High-frequency spark tester
Optional:
1) Crosshed ( Taiwan or Swiss brand)
2) Lump gauge (Different brand)
3) Diameter tester (Different brand)
4) other special requests
5. Safety performances:
1) Switch-off at overpressure
2) Stop at over temperature
3) Emergency stop
4) Monitoring of tolerances and alarms
5) Monitoring of senser

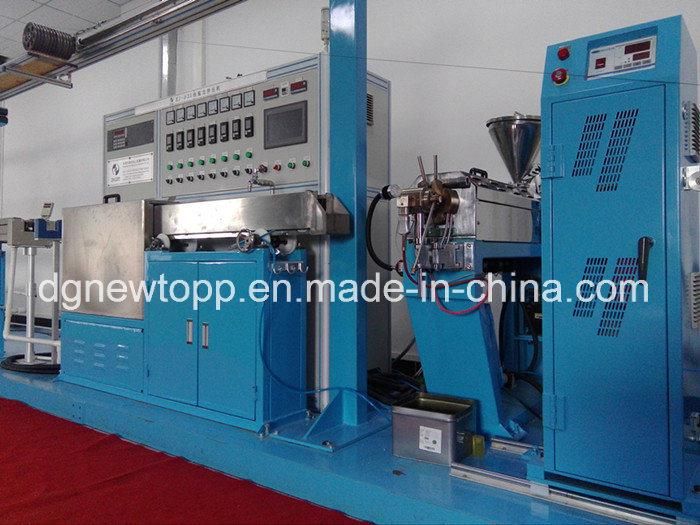

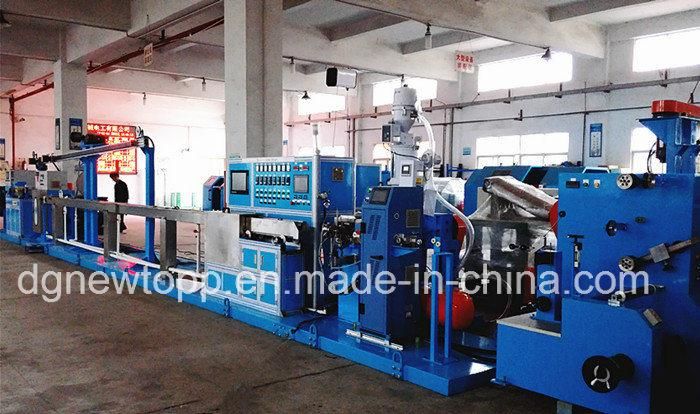

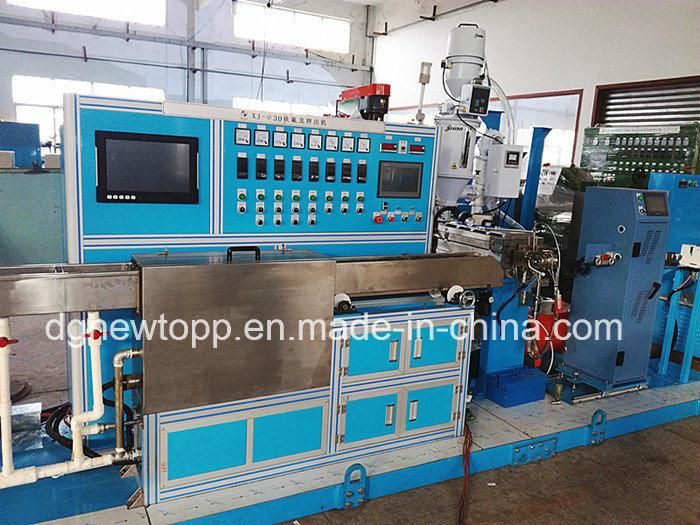

6. Machine pictures:

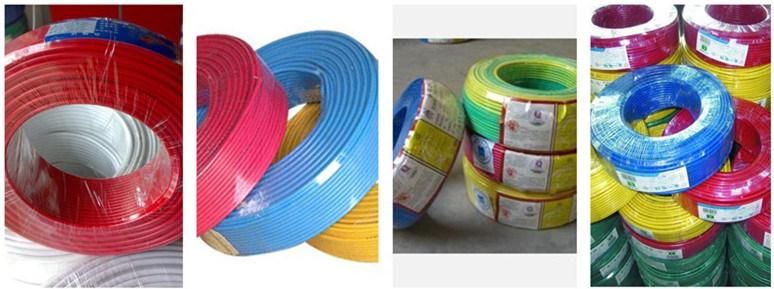

7. Finished products and Structure:
7.Our Services:
1) Free technical consulation for machine configuration and model selection etc.;
2) Free training for machine operation and daily maintenance;
3) Improve the design to the operator's requirements;
4) Cost price for required parts in lifelong period;
5) Provide overseas technical support and services.
9. Abuot us:
Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited , and we also have passed ISO9001 quality management system certification.
10. FAQ
1) Are you a manufacturer or trading company?
We are a manufacturer with more than 10 years of R&D and manufacturing experience in cable machinery; our machines are exported to different countries, such as Italy, Japan, India, Thailand and Malaysia, and have received recognition and praise from customers.
2) How can we get to your factory to see the machines works?
Add: No.286 Huai'de road, Humen Town, Dongguan City,Guangdong Province,China.
Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
Only 17 minutes by high-speed rail from Guangzhou south station to Humen.
