• Model NO.：BZW-882DH
• Specification：Cross section: 0.1-2.5mm2*multi core
• Trademark：bozhiwang
• Origin：Changzhou, China
• HS Code：8538900000
• Production Capacity：5000PCS ,Year

BZW-882DH  Computerized cutting and stripping machine for round sheathed cable

The device is controlled by computer and operated by pressing the button. The stripping speed is fast. Within the cutting range, the parameters of the length of wire, wire head, wire end and stripping could be set. It has the functions of auto quantified, bundle quantity, time postponed, middle part stripping and etc. which are stable in performance and convenient in operation.
 TECHNICAL PARAMETER

Model	BW-882DH (round jacket Model)
Wire range	0.1-2.5mm2 (AWG13#-AWG28#)
Wire diameter	less than Φ12mm
Outer dimension	420 x 297 x 345mm
Weight	31kg
Display	Chinese or English interface on LCD screen.
Power supply	AC180-240V<=50/60Hz
Power	120-220W
Cutting length	0.1mm-99999mm
Middle stripping	13 stripping positions in the middle.
Cutting tolerance	0.002 x L mm (within) x L= cutting length
Stripping length	stripping head: 0.1-250mm, stripping end: 0.1-100mm
Applicable wire core area	0.1 -2.5mm2 x 3 cores (diameter less than 15mm)
Applicable wire	plastic, PVC, Teflon, glass linear materials. Round power jacketed wire
Max. Guide bushing diameter	1.5-26 mm
Blade materials	imported high speed steel, tungsten steel
Drive	4 Wheels driving
Stripping capacity per hour	2000-6000 pieces
Precision for inlet and outlet motor	reactive stepping motor, each step is about 0.1mm
Remarked function	automatic pre-feeding and discharging, time setting for automatic starting, automatic shutdown while no wire or wire tangle.

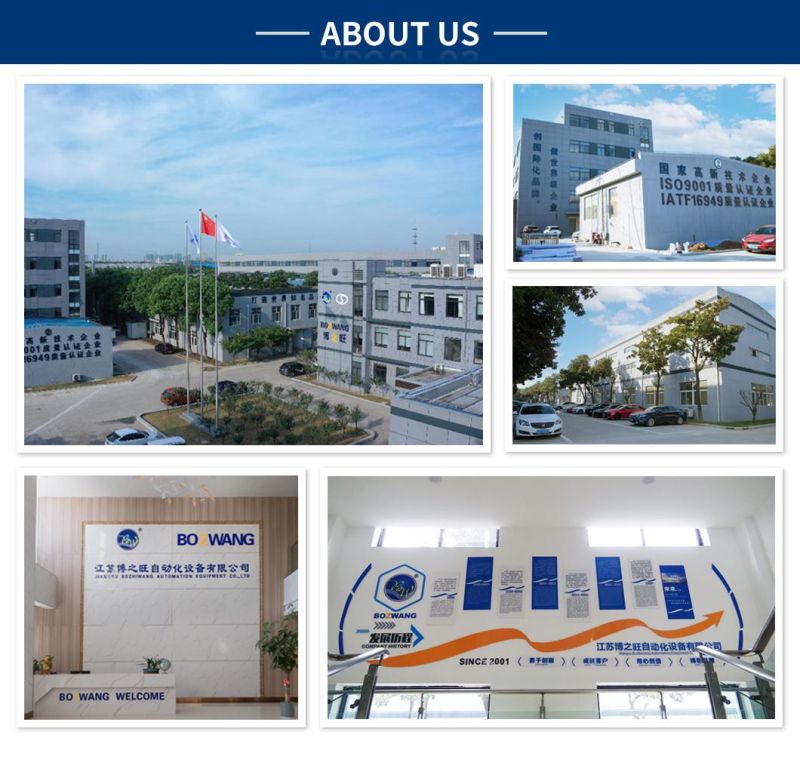

      Jiangsu Bozhiwang Automation Equipment Co., Ltd. is a large-scale intelligent wire processing equipment manufacturer in China,located in the center of the beautiful and rich Yangtze River Delta---China's famous industrial equipment manufacturing base Changzhou City, Jiangsu Province.

      The company covers an area of 40,000 square meters and a building area of 45,000 square meters with more than 400 employees,including more than 300 outstanding technicians. The company has successively passed ISO9001, QS-9000, CE certification, TUV certification, and developed a number of products with independent intellectual property rights, and obtained more than 60 invention patents, more than 100 utility model patents and 100 new appearance patents, the technology and comprehensive strength of product research and development ranks the top among the nationwide.

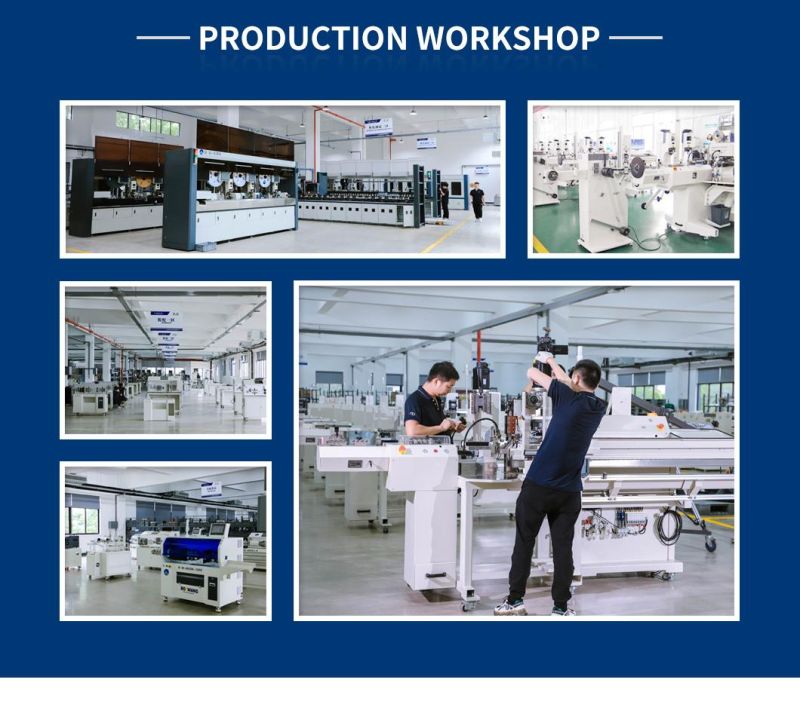

      In the production process, the company strictly follows the ISO:9001 quality standard for daily production and management. It mainly focuses on the automotive, photovoltaic and new energy industries and has developed and produced a series of automatic processing equipment with
high quality, stable performance and high efficiency.

      Mainly include automotive wiring harness/HSD/FAKRA radio frequency wire harness/new energy wiring harness and other related semi-automatic and fully automatic intelligent production lines, automatic double ends terminal machine with seal inserting, automatic ribbon cable terminal machine, automatic single-double-end terminal crimping machine, automatic wire stripping machine,JB box automation equipment, new energy automation equipment, and a complete set of equipment series for various semi-automatic wire harness processing. With the increasing annual output of the company, it has reached an annual output of more than 20,000 sets of intelligent assembly lines and various wire harness processing equipment, and the production equipment has the characteristics of high precision, high degree of automation, and strong supporting performance of the whole machine.
