Efficient Aluminum Wire Motor Winding Machine

NINGBO HI-TECH WEDE MOTOR MACHINES CO., LTD.
  • Voltage：380V
  • Warranty：12 Months
  • Processing Part：Motor Coils Winding
  • Condition：New
  • Automatic Grade：Automatic
  • Mould Life：300,000-1,000,000 Shots

Base Info

  • Model NO.：WD-01-LRX
  • Type：High-Speed Stranding Machine
  • Driven Type：Motor
  • Transport Package：Ply-Wooden Case
  • Trademark：WEDE
  • Origin：China
  • HS Code：8479811000
  • Production Capacity：100PCS,Year

Description

ItemWD-01-LRXWD-02-LRXWD-03-LRXWD-04-LRXWD-06-LRXwire OD0.15-1.2mm0.15-1.2mm0.15-1.2mm0.15-1.2mm0.15-1.2mmmax number of parellel wire102222max core length200mm150mm120mm80mm60mmmax no-load speed1000rpm2000rpm1500rpm2300rpm2300rpmappropriate wirecopper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire copper wire/aluminum wire power supply380V 50/60Hz380V 50/60Hz380V 50/60Hz380V 50/60Hz380V 50/60Hzpower5KW10KW7KW10KW14KWair supply0.4-0.6MPa0.4-0.6MPa0.4-0.6MPa0.4-0.6MPa0.4-0.6MPaweightabout 1500kgsabout 2000kgsabout 1600kgsabout 2500kgsabout 2500kgssize2000x930x2300mm1700x900x2400mm1500x1300x1900mm1575x1580x2400mm1600x1500x1900mm

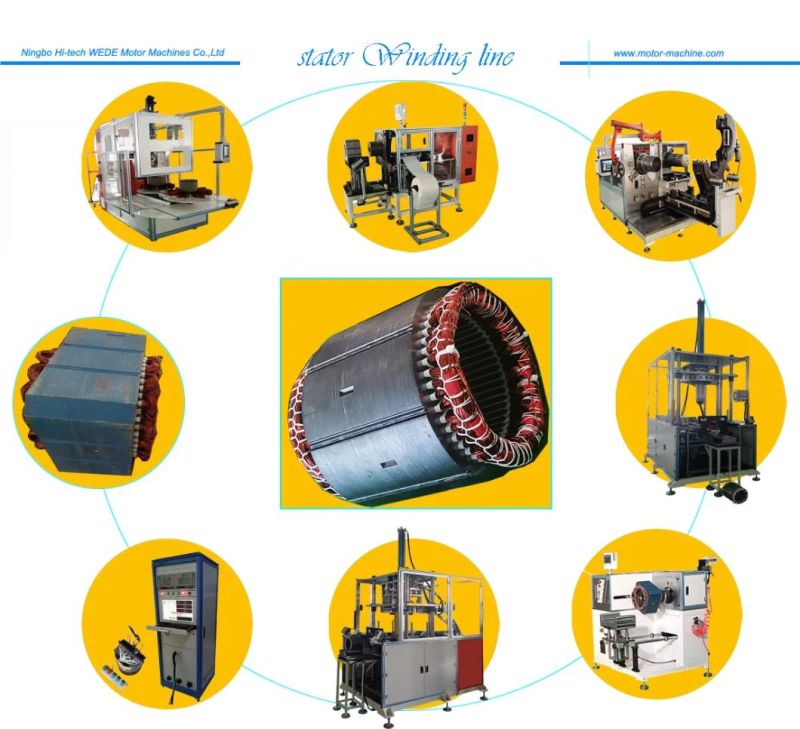

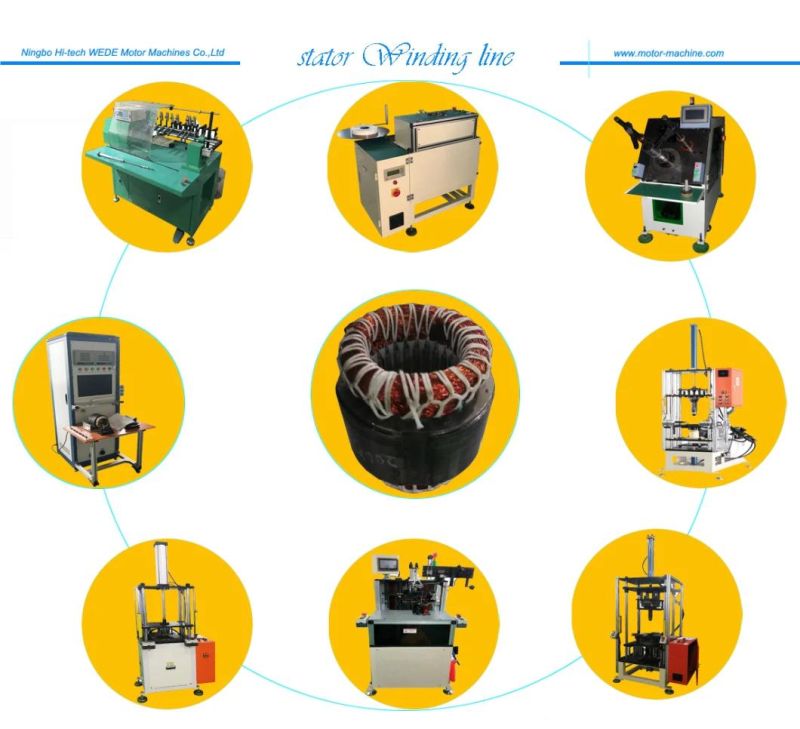

Picture 1
Efficient Aluminum Wire Motor Winding Machine

Picture 2
Efficient Aluminum Wire Motor Winding Machine
