Toch SMT SMD Professional Industrial Vacuum Reflow Oven for IGBT

Termway (Beijing) Precision Technology Co., Ltd.

Certification：ISO, CE
Warranty：24 Months

Base Info

Model NO.：V3,V4,V5
Automatic Grade：Semiautomatic
Installation：Vertical

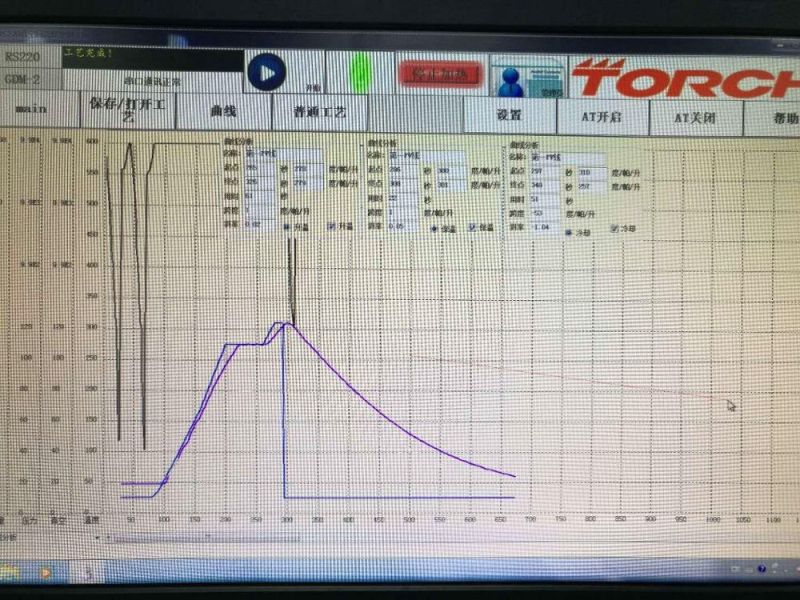

Temperature Carve：Can Save 40 Sections Temperarue Carve
Temperature Range：up to 350-450c
Height of Oven：80mm (Oher Height Is Optional)
Transport Package：Wooden Case
Specification：190*62*120cm
Trademark：Torch
Origin：Beijing
HS Code：1105962268
Production Capacity：10set,Month

Description

80mm (oher height is optional)Temperature rangeup to 350-450CInterfaceserial port /USBControl way40 sections temperature control + vacuum pressure controlTemperature carve Can save 40 sections temperarue carvePower supplyAC220V, 25-5A
Toch SMT SMD Professional Industrial Vacuum Reflow Oven for IGBT

Toch SMT SMD Professional Industrial Vacuum Reflow Oven for IGBT
