• Model NO.：XJ-300,400
• Taping Material：Aluminum Foil, Cotton Paper, Transparent, Mica Tap
• Rotate Speed：Max.2500 Rpm
• Heating Device：Automatic Flexible Type
• Machine Name：Numerical Control Double Layer Horizontal Wrapping
• Transport Package：PE Film + Wooden Box
• Specification：CE SGS
• Trademark：NEWTOPP
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8479400000
• Production Capacity：6 Sets,Month

Basic Info.

Model NO. XJ-300/400 Taping Material Aluminum Foil, Cotton Paper, Transparent, Mica Tap Rotate Speed Max.2500 Rpm Heating Device Automatic Flexible Type Machine Name Numerical Control Double Layer Horizontal Wrapping Transport Package PE Film + Wooden Box Specification CE SGS Trademark NEWTOPP Origin Dongguan City, Guangdong Province, China HS Code 8479400000 Production Capacity 6 Sets/Month

Product Description

Numerical Control Double/Multi Layers Horizontal Wrapping Machine
1.Application:
Suitable for twisted wire & parallel wire single-layer or double-layer concentric taping or wrapping.
2.Machine Features:
1) High productivity: high rotate speed, the production efficiency is 2.5 times than traditional type.
2) Tension steady: utomatic calculation tracking and keep constant from start to end, no need any artificial adjustment.
3) Pithch accurate: Overlap set on touch screen which controlled by PLC to keep the pitch more accurate.
4) Good traversing efficiency: traversing by moving shaft, traversing space and pitch can be adjusted according to customer's requirement.
5) Superior quality: the passing rate is 100% in manufacturing process for high-frequency wire, such as HDMI, DP, ATA, SATA, SAS etc.
3. Technical Parameters:

Model	XJ-500
Inlet wire specification	AWG32 - AWG20
Taping materical	aluminum foil tape, cotton paper, transparent tape, mica tape, teflon tape etc.
Rotate speed	Max. 2000rpm / Max. 20m/min
Main power	Adjust the speed by 1HP motor driver, taping drum linkage with capstan motor
Taping tension	Taping tension automatic calculation tracking and keep constant from start to end,  no need any artificial adjustment.
Melting oven	Automatic flexible melting oven, OMRON temperature control, temperature tolerance:±1°C
Take -up tension	Take-up tension keep constant from start to end, no need any artificial adjustment.
Traversing type	Axis-row type take-up, no damage during the traversing process, traversing pitch and width can be adjusted.
Machine dimension	4250mm × 1500mm × 1900mm
Machine weight	2.5 T

4. Brand of main parts:
1) Motor: Siemens
2) Inverter: Yaskawa or inovance
3) Bearing: NSK, NACHI
4) Electric components: Imported famous brand.

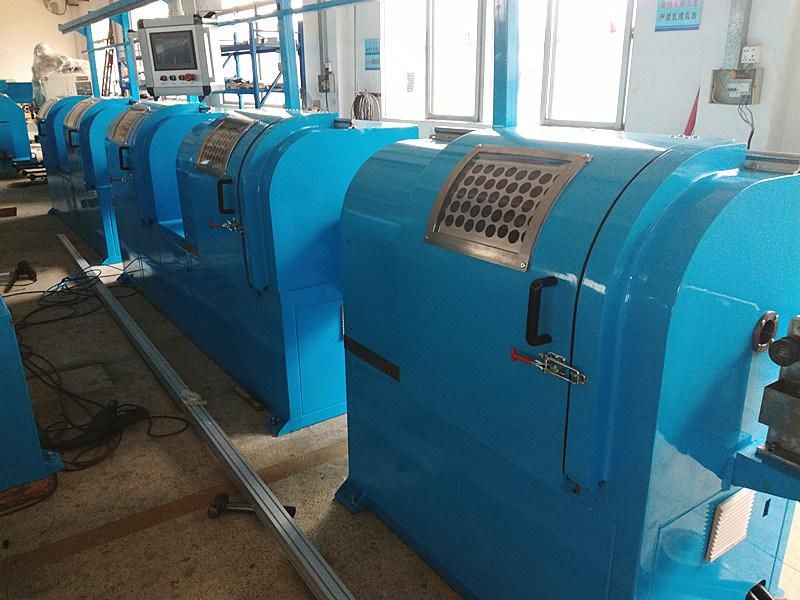

5. Machine picture:

7. About us

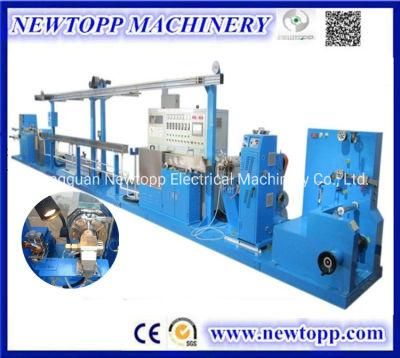

Dongguan NewTopp Electrical Machinery Co.,Ltd is a high-tech enterprise which specializes in developing and manufacturing wire and cable machines, and our main products includes all kind of extrusion production line, single twisting machine, double twisting machine, cantilever stranding machine, cage-type twisting machine, planetary cabling machine, triple-core stranding with back-twist and taping, and single layer/double layer taping machine etc. and our products have passed CE certification and SGS audited , and we also have passed ISO9001:2008 since 2010.
8.FAQ
1) Are you a manufacturer or trading company?
   We are a manufacturer with more than 10 years manufacturing exprience in cable machinery, and there are total more than 6000 spuare meters of production workshop and office space in our factoty.
2) How can we get to your factory to see the machines works?
   Address: No.286 Huai'de road, ,Humen Town, Dongguan City,Guangdong Province,China.
   Only 40 minutes by car from Shenzhen Baoan International airport to our factory;
   Only 1.5 hours by car from Guangzhou Baiyun Airport to our factory;
   Only 17 minutes take high-speed rail from Guangzhou south station to Humen.
