Small Size Economic Automatic Lead Free Reflow Oven for SMD Production

Shenzhen Jaguar Automation Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • Warranty:12 Months
  • Automatic Grade:Automatic
  • Installation:Vertical
  • Heating Zones:Up6,Bottom6

Base Info

  • Model NO.:REFLOW OVEN A6
  • Heating Length:2400mm
  • Cooling Zone:1
  • Power Supply:5 Line 3 Phase 380V 50,60Hz
  • Heating Method:Hot Air
  • Weight:500kg
  • Outside Dimension:3500*700*1220mm
  • Start Power:18kw
  • Normal Power:4.5kw
  • Transmission Method:Mesh Belt
  • Transport Package:Wooden Case
  • Specification:CE
  • Trademark:Jaguar
  • Origin:Shenzhen, China
  • HS Code:85151900
  • Production Capacity:100PCS,Month

Description

320mmConveyor height880±20mmConveyor directionL-R/R-LConveyor speed range0-1500mmPcb transmission agentMeshNormal power4.5KWStart-up power18KW
 Features:
A.The unique advanced long life heating system
1. The heating system adopt the Swedish nickel flipping pipe which with high efficiency and energy saving. The peak wave length of radiation power is 4UM with curved surface reflector to accelerate the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system makes PCB and the component heated uniform and eliminates the "shadow effect" completely.
2. Special high temperature resistant protection system (the United States of America's high density insulation rock wool in heat preservation system and special iron in furnace. It suit for lead free welding and the welding area with rosin flux recovery system to protect environment.
3. Using imported Taiwan SanYue long axis of high temperature fan motor.
4. Whole oven are porous aluminum transfer the hot air to guarantee the hot air evenly to the PCB. The whole top oven can open completely easy to clean oven inside.

B.Smooth and reliable transmission system
1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth and to speed 0-1500mm/min.frequency stepless speed regulation.
2. Independent wheel structure and support and match with accompany stainless belt to make the running smooth and the speed precision is up to20mm/min.
3. Special stainless belt: durable and wear-resistant, not easy to deform by long time use.
C.The Electrical control system is stable and reliable.
1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system. It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heat.
2. Using Fanda thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone.
3. Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the service time effectively. No contact output and the fuzzy control function by thermostat, can monitoring the changes in the outside temperature and calorific value, controlling the heating device by the minimum pulse, ensuring the high precision of temperature control & the uniform temperature in internal and the length, direction, temperature distribution ,all of these meet IPC standard.
4. Power is abundant, heat up fast, it's only need 20 minutes from room temperature to constant temperature.
5. Failure diagnosis and sound and light alarm.
Delay shutdown protection function, uniform cooling after the shutdown: prevent component deformation.

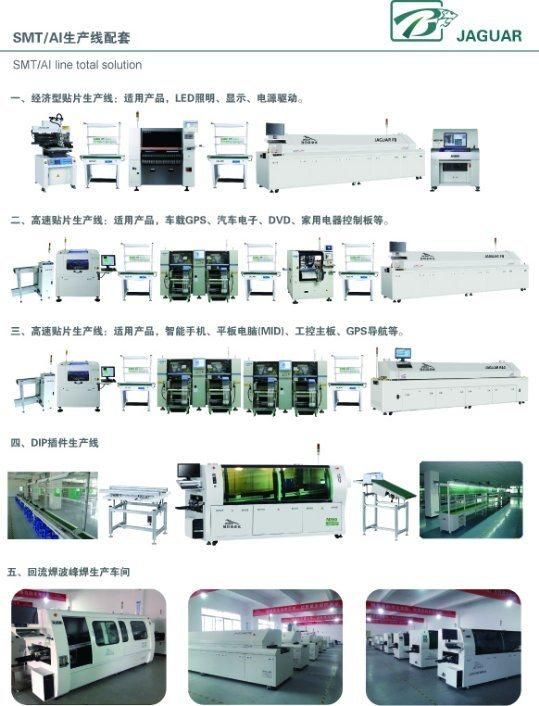

6.Jaguar products: stencil printer,buffer conveyor, reflow oven, lead-free reflow solder oven, reflow soldering oven,wave solder or wave soldering machine, smt chip mounter,Smt Pick and Place Machine, PCB conveyor, smt machine/Smt Equipment and smt peripheral equipments.
Small Size Economic Automatic Lead Free Reflow Oven for SMD Production
Small Size Economic Automatic Lead Free Reflow Oven for SMD ProductionSmall Size Economic Automatic Lead Free Reflow Oven for SMD Production
FAQ1) This is the first time I use this kind of machine, is it easy to operate?

 There is English manual or guide video that show you how to use machine.

 If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

 2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.

 If the part is less than 0.5KG, we pay the postage.

 If it exceeds 0.5KG, you need to pay the postage.

 3) MOQ ?

 1 set machine, mixed order is also welcomed.

 4) How can I buy this machine from you? ( Very easy and flexible !)

 A. Consult us about this product on line or by e-mail.

 B. Negotiate and confirm the final price , shipping , payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

  F.Send your order by air or by sea.
